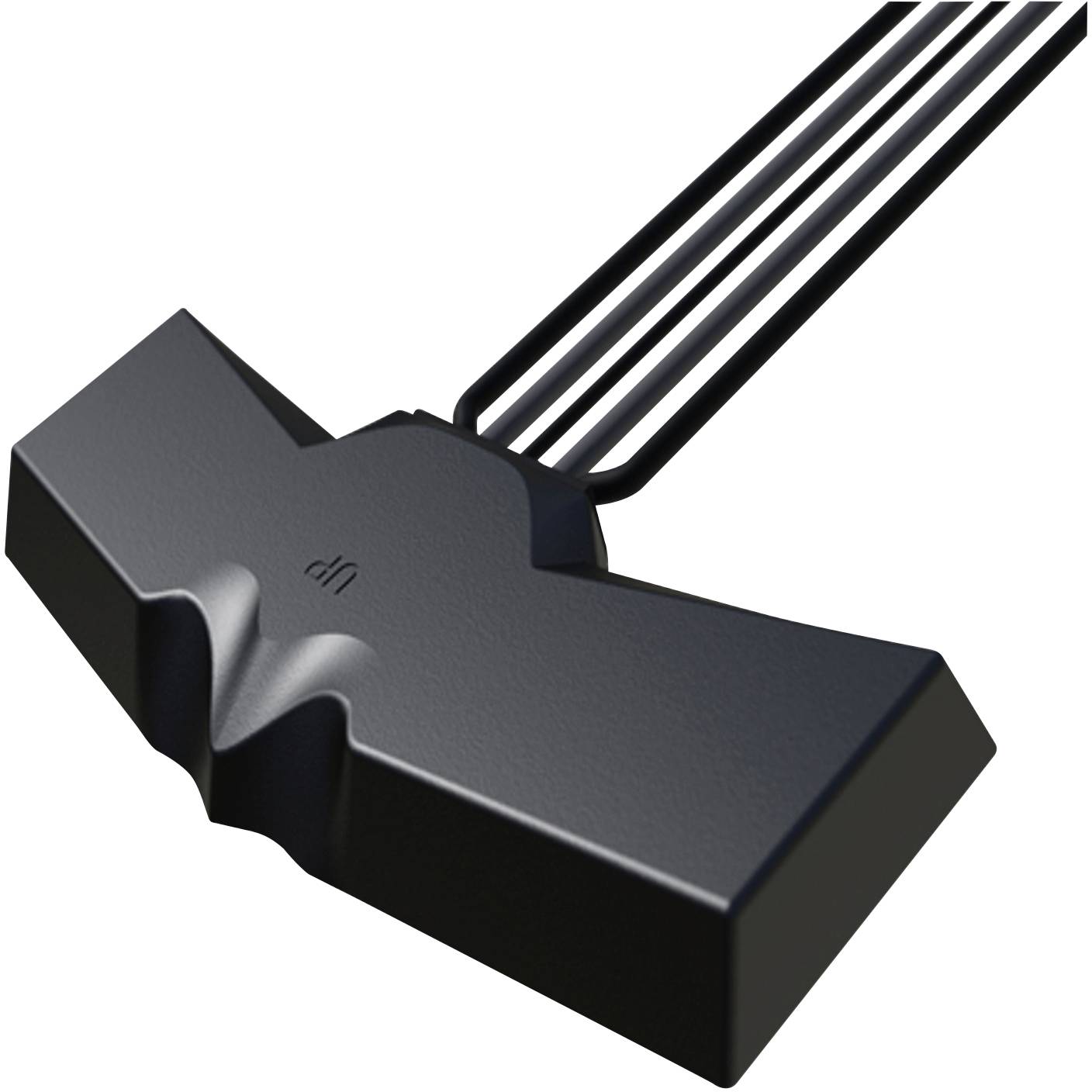

Wittenberg Antennen WB 58 Adhesive/clip antenna LTE, GPS
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Highlights & Details
Vehicle interior. MIMO LTE + WIFI + GPS
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
UMTS
LTE
- Spotlight length
214
- Cable length
5x 3 m
- Connection
Cellular SMA connector (m)
WiFi SMA rev. (M) plug
GPS/GNSS SMA REV. (M) plug
- Factory colour
Black
- Gain
5 dBi
- Antenna type
Adhesive/clip antenna
- Features
MIMO
- Suitable for mains
LTE
GPS
Documents & Downloads
Datasheet
Datasheet 2301539 Wittenberg Antennen WB 58 Adhesive/clip antenna LTE, GPS
User & Safety Instructions
User & Safety Instructions 2301539 Wittenberg Antennen WB 58 Adhesive/clip antenna LTE, GPS
Description
The WB 58 antenna was designed for telematic applications, which require a high data rate. This is implemented with MIMO 4G and fallback 3G/2G. The antenna is also available with GPS and dual band 2.4/5.8GHz WiFi.
The mutually isolated LTE antennas operate on 698-960/1710-3800MHz and the efficient design enables a high data rate and a constant stable connection even in areas with a poor LTE network.
The antenna was built to be mounted on or under an amateur board, but can also be mounted on all non-conductive surfaces. The WB 58 is supplied with flame-resistant cable and is thus UN118.01 certified.
This text is machine translated.
The mutually isolated LTE antennas operate on 698-960/1710-3800MHz and the efficient design enables a high data rate and a constant stable connection even in areas with a poor LTE network.
The antenna was built to be mounted on or under an amateur board, but can also be mounted on all non-conductive surfaces. The WB 58 is supplied with flame-resistant cable and is thus UN118.01 certified.
This text is machine translated.
Features
- Frequency : 698-960MHz, 1710-2700MHz, 2400/4900-6000MHz, 1562-1612MHzGain:Element 1&2
- @890-960MHz 2dBi
- @1710-2170MHz 3dBi
- @2500-3800MHz 5dBiElement 3&4
- @2400MHz 4dBi
- @4900-6000MHz 5dBiGPS Element: @1562-1612MHz 26dBRadiation pattern: Omni-directionalresistance: 50 Ohm, max. Input power: 20 WattDimensions: Width 214mm/ depth 77mm/ thickness 16.5mmMaterial : UV resistantplastic: ASA BlackFastening: Acrylic adhesive padCable type : SC1-029-FRZH-B, SC1-032-FRZH, RG174-FRZH, all cables EN118.01 certifiedCable length: 5x 3 meterConnection: Cellular: SMA connector (m), WiFi: SMA rev. (M) GPS/GNSS Plug - rev SMA (M) plug
