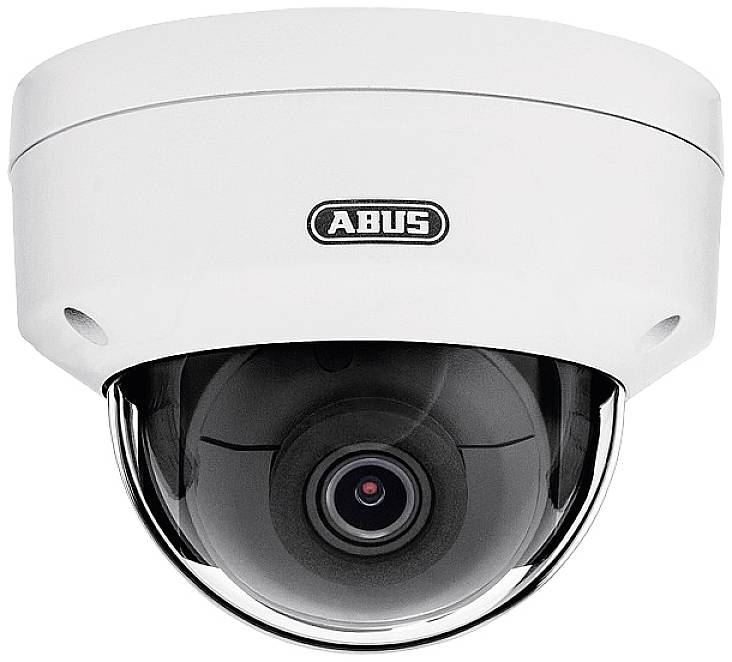

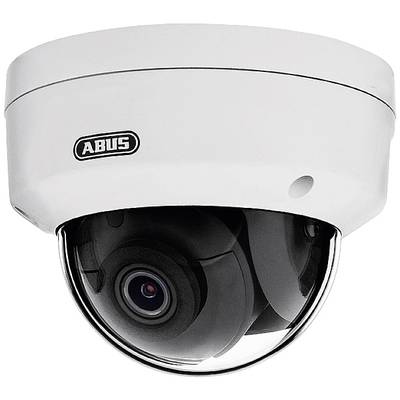

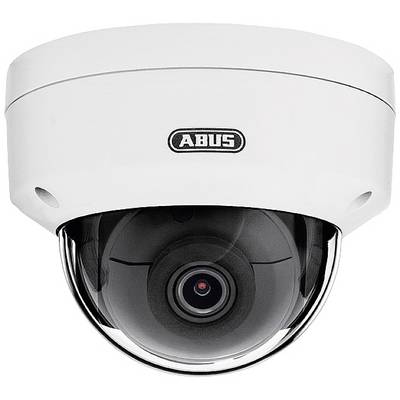

ABUS Performance Line 2MPx Mini Dome TVIP42510 LAN IP CCTV camera 1920 x 1080 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Only 1 Piece(s) available
LAN IP-Dome camera;1920 x 1080 p;ABUSPerformance Line 2MPx Mini Dome;TVIP42510Outdoors
Highlights & Details
- 2 MPX (Full HD 1080p) 1920 x 1080 @ 30 fps2.8 mm fixed lensProgressive scan CMOS
Technical specifications
- Operating temperature: -25 °C to + 60 °C.
- Product type
CCTV camera
- CCTV features
Saves footage on SD card
IR LEDs
PoE IEEE 802.3af
- Camera type
Dome camera
- Resolution (max.)
1920 x 1080 p
- Sensor size
9.4 mm (1/2.7")
- Sensor type
CMOS
- Focal length
2,8 mm
- Max. viewing angle hor.
111°
- Vertical viewing angle
59°
- App compatibility
No
- Transfer type
LAN
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.005 lx
- IR range (max.)
30 m
- Used at
Outdoors
- Type
microSD card (up to 256 GB)
- Width
111 mm
- Height
85 mm
- Depth
111 mm
- Dim
(W x H x D) 111 x 85 x 111 mm
- Weight
650 g
- Enclosure material
Plastic
Metal
- Factory colour
White
IP67
- Signal standard
IP
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2612453 ABUS Performance Line 2MPx Mini Dome TVIP42510 LAN IP CCTV camera 1920 x 1080 p
User & Safety Instructions
User & Safety Instructions 2612453 ABUS Performance Line 2MPx Mini Dome TVIP42510 LAN IP CCTV camera 1920 x 1080 p
User & Safety Instructions 2612453 ABUS Performance Line 2MPx Mini Dome TVIP42510 LAN IP CCTV camera 1920 x 1080 p
Description
The IP Performance Line 2MPx Mini Dome is a discreet surveillance camera for outdoor and indoor use due to its compact dimensions.Discreet full HD 24/7 outdoor surveillanceThe IP Mini Dome delivers video streams in 2 MPX resolution with up to 30 frames/s. The weather-proof IP66 housing allows outdoor use, integrated IR LEDs for day and night use. The camera can be accessed at any time via the app.For maximum flexibilityThe IP Mini Dome offers maximum flexibility in planning and installation of video surveillance projects. The IP Mini Dome IPCB42510A with a 2.8 mm fixed lens is ideal for wide-angle surveillance scenes.Recording and compatibilityRecording is done either on an ABUS recorder or locally on a microSD card.Convenient commissioningThe IP Mini Tube is mounted on the ceiling or optionally on the wall. For this purpose, we recommend the ABUS installation box (TVAC31480), with which a protected cabling on wall or ceiling is possible. For easy and quick commissioning in the network, the free software "ABUS IP Installer" is available. This finds the camera quickly and easily in the network and supports with the start-up.
This text is machine translated.
This text is machine translated.
Features
- Progressive scan CMOSUltra low light performance for excellent results in low lightWeatherproof housing (IP67)Supports H.264, H.264, MJPEG (incl. Dynamic GOP)MicroSD card slot for internal data storage12 V DC & PoE (802.3af)Motion detection: 4 zonesNoise suppression: 3D DNR4 private zonesAlarm: E-mail, NAS, FTPNumber of users: 32White balance: AWB, manualSupported browsers: IE11, Mozilla Firefox, Google Chrome, MS EdgeDay/night switching: ICR/color/B/W.
Scope of delivery
- 1x IP mini dome 2 MPx
- 1 x PSU
- 1x quick instructions
- 1x safety instructions
Hints
Please order memory card separately.
