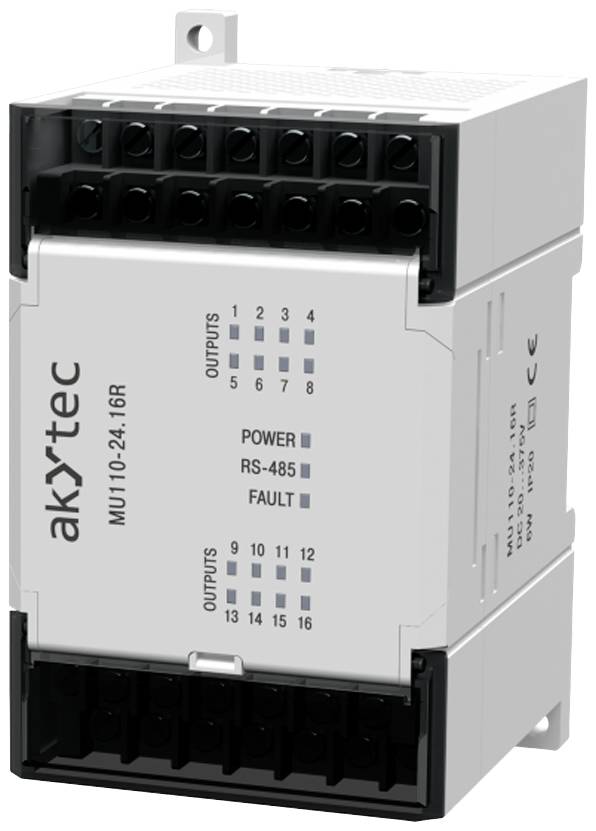

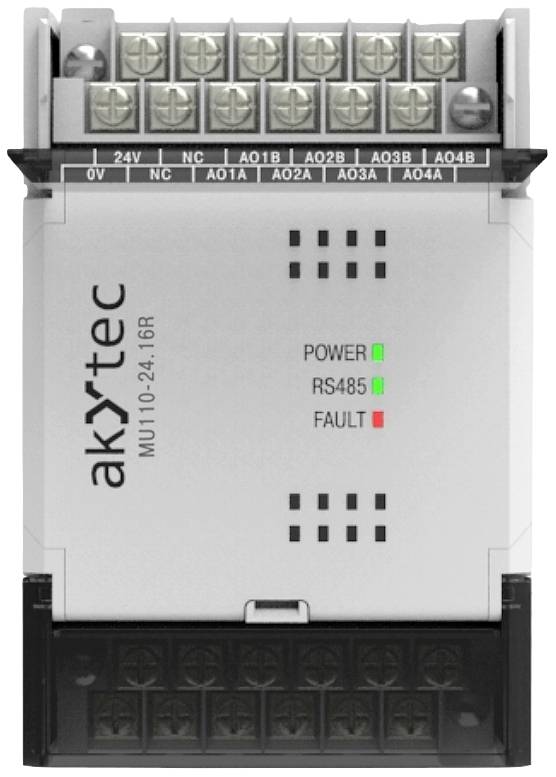

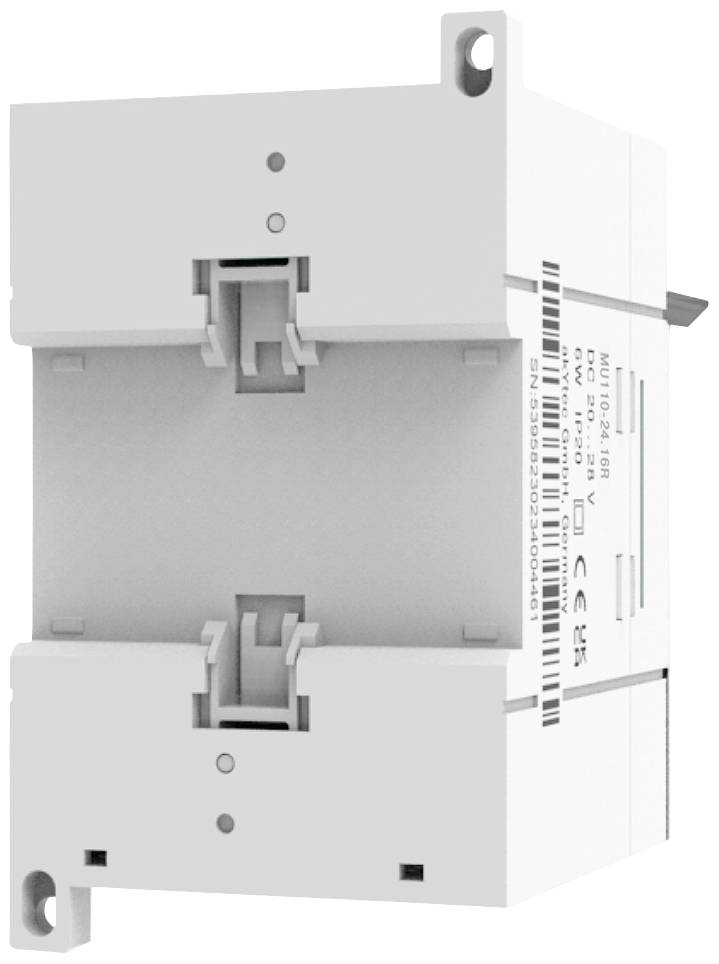

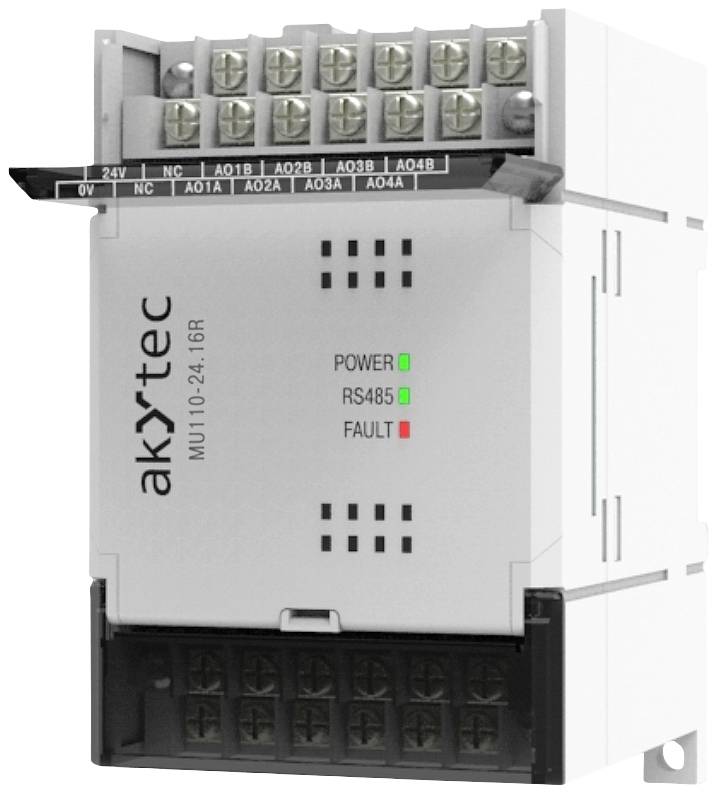

akYtec MU110-24.16R 54596 PLC digital output module 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 174.99 / piece)
€ 174.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
MU110-24.16R, Digital Output Module
- Connection of actuators with digital inputs
- Control of the digital outputs via Modbus network
- Pulse-width modulation
- Network diagnostics
- Error and alarm signals
- Slave in the sense of the Modbus protocol
- Support of Modbus RTU and Modbus ASCII (automatic protocol recognition)
Technical specifications
- Power supply: 24 (20…28) VDC
- Power consumption: max. 12 W
- Digital inputs: -
- Digital outputs:16
- Rating: 3 A at 250 V AC,
- cosϕ >0.4 or 30 V DC
- Modbus RTU/ASCII protocol
- Ambient temperature -20…+55 °C
- Storage temperature: -25…+55 °C
- Humidity: Up to 80%, at +25°C non-condensing
- Protection class: IP20
- Dimensions 63 x 110 x 75 mm
- Weight approx. 300 g
- Housing material: Plastic
- Analogue inputs: -
- Analogue outputs: -
- Connection D+, D-
- Output: Relay output (NO)
- Product type
PLC digital output module
- Counter
Impulszähler
- No. of outputs (max.)
16
- No. of relay outputs (max.)
16
- Min. operating voltage
20 V DC
- Operating voltage
20 - 28 V DC
- Max. operating voltage
28 V DC
- Operating voltage
24 V DC
- Height
63 mm
- Length
110 mm
- Width
75 mm
IP20
- Type
MU110-24.16R
- Manufacturer part #
54596
- Dim
(L x W x H) 110 x 75 x 63 mm
- Max. ambient temperature
-20 °C
- Min. ambient temperature
+55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219669 akYtec MU110-24.16R 54596 PLC digital output module 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- Module MU110-16R
- Quick guide
