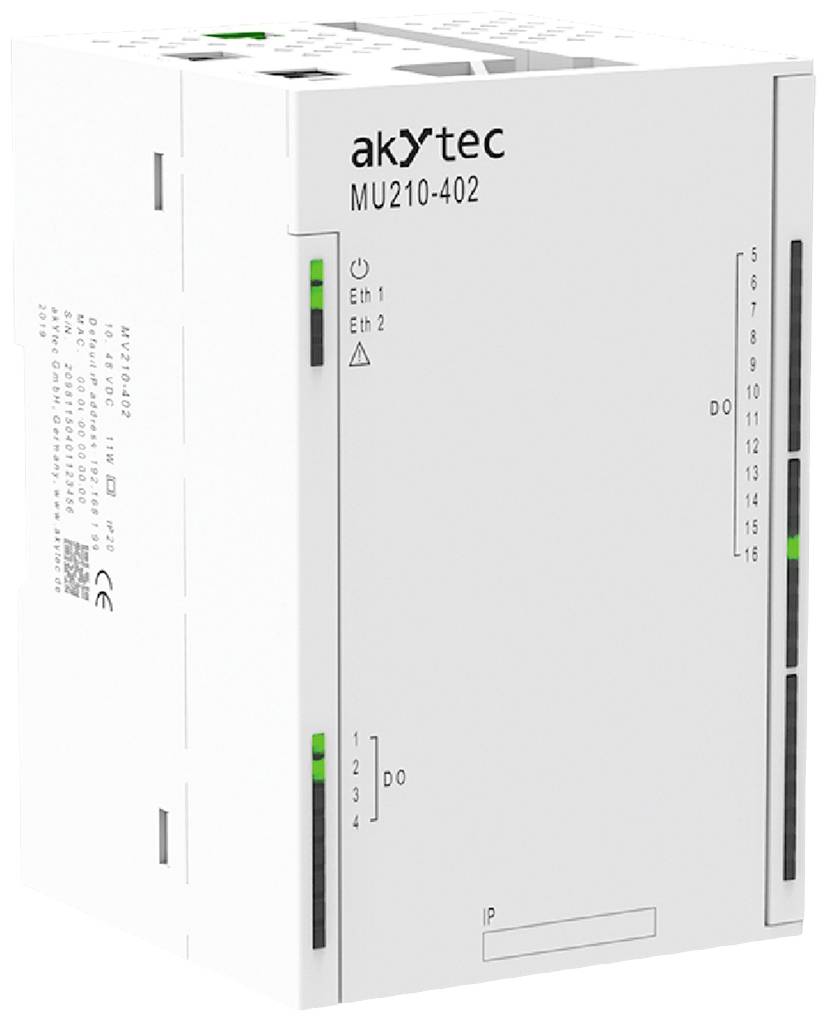

akYtec MU210-402 88533 PLC digital output module 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 239.99 / piece)
€ 239.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details

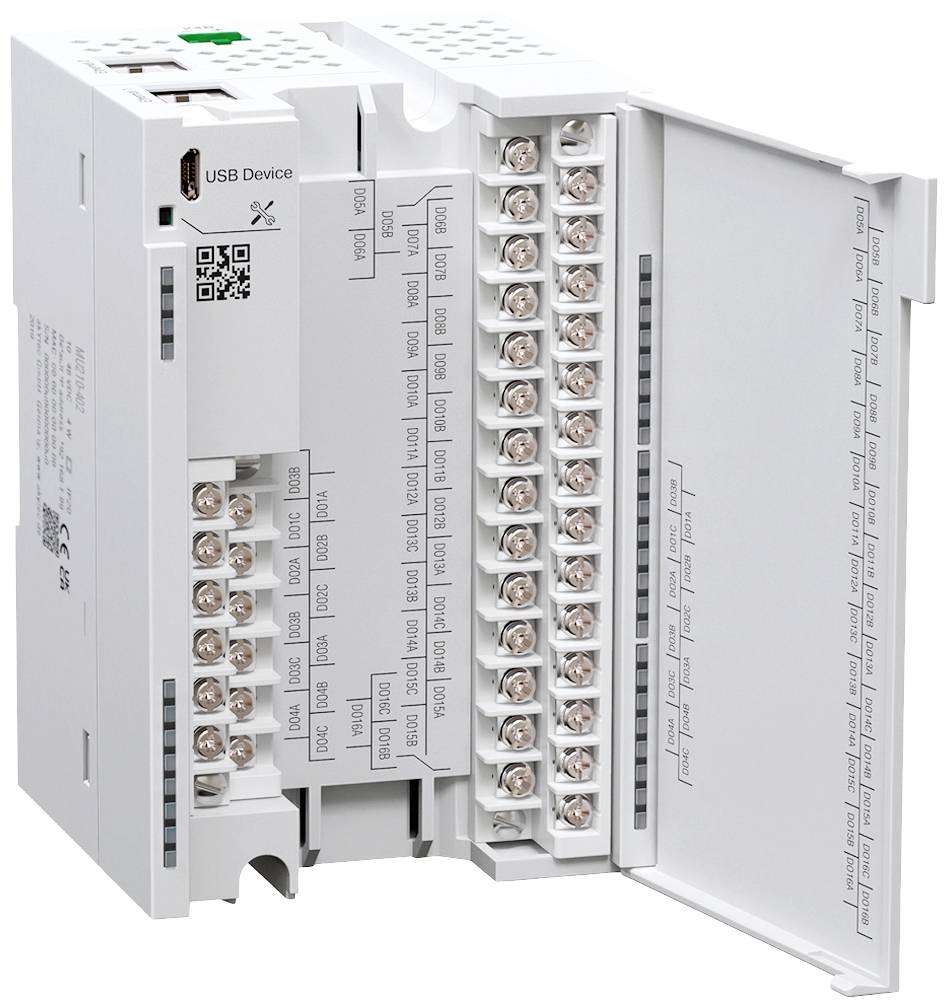

MU210-402, Digital Output Module
- Pulse-width modulation (PWM)
- 2 bypass-enabled Ethernet connections
- Support for daisy chain wiring
- Support for Modbus TCP, MQTT, SNMP, SNTP
- Simultaneous communication with up to 4 TCP clients
- LEDs for diagnosing the network status
- Support for data recording
- In-built real-time clock
- Free configurator
- Synchronous updating of the configuration of two or more selected modules
Technical specifications
- Power supply: 24 (10…48) VDC
- Load capacity: 5 A (at not more than 250 V AC, 50 Hz and
- cosφ > 0.4); 3 A (at not more than 30 V DC
- Ambient temperature -40…+55 °C
- Humidity: Up to 95%, at +35°C non-condensing
- Protection class: IP20
- Dimensions 82 x 124 x 83 mm
- Weight: approx. 0.6 kg
- Housing material: Plastic
- Configuration interface USB 2.0 (MicroUSB), Ethernet 10/100 Mbit
- Field-bus interface: Dual-port Ethernet 10/100 Mbit
- Average life: 10 years
- Power consumption: 9 W at 24 VDC; 11 W at 48VDC
- Number of digital outputs: 16
- Output type: Electromagnetic relay
- Contact type: Normally open, change-over
- Max. Voltage 250 V/AC, 30 V/DC
- Field bus protocol: Modbus TCP
- Protocol version: IPv4
- Max. Frequency: 1 Hz (at 0.5 pulse-pause ratio)
- Minimum pulse width 50 ms
- Product type
PLC digital output module
- No. of outputs (max.)
16
- No. of relay outputs (max.)
16
- Min. operating voltage
10 V DC
- Operating voltage
10 - 48 V DC
- Max. operating voltage
48 V DC
- Operating voltage
24 V DC
- Height
82 mm
- Length
124 mm
- Width
83 mm
IP20
- Type
MU210-402
- Manufacturer part #
88533
- Dim
(L x W x H) 124 x 83 x 82 mm
- Real-time clock
Yes
- Max. ambient temperature
-40 °C
- Min. ambient temperature
+55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219675 akYtec MU210-402 88533 PLC digital output module 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- MU210-402
- Pass and guarantee card
- User manual
- UTP-Patch cable 5e 150 mm
- Power supply terminal 2EGTK-5-02P-14
- Ethernet filler plug
