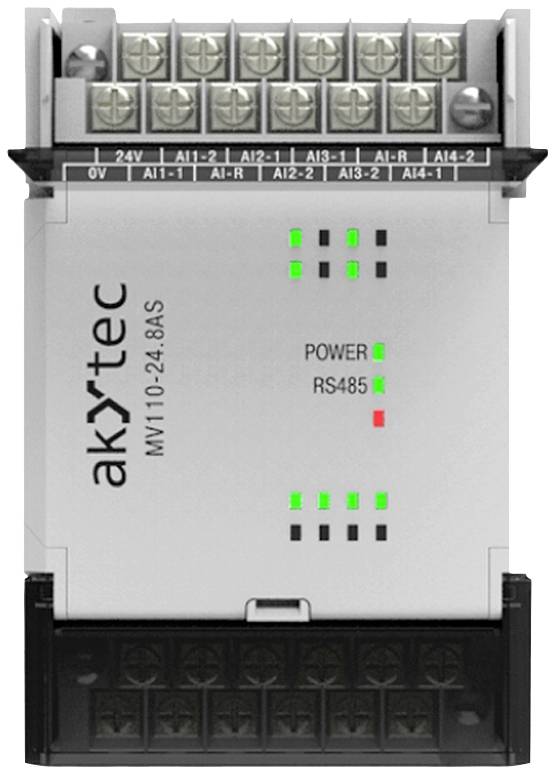

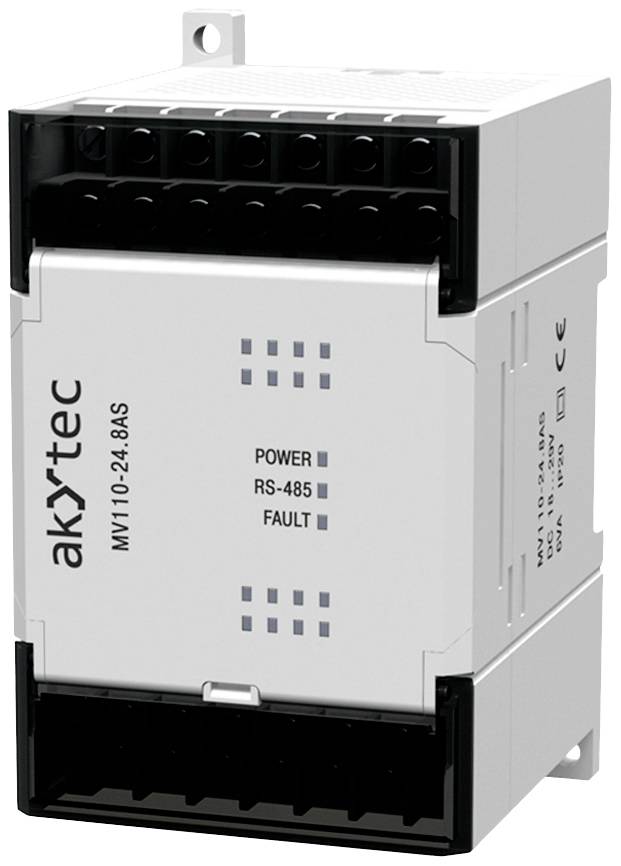

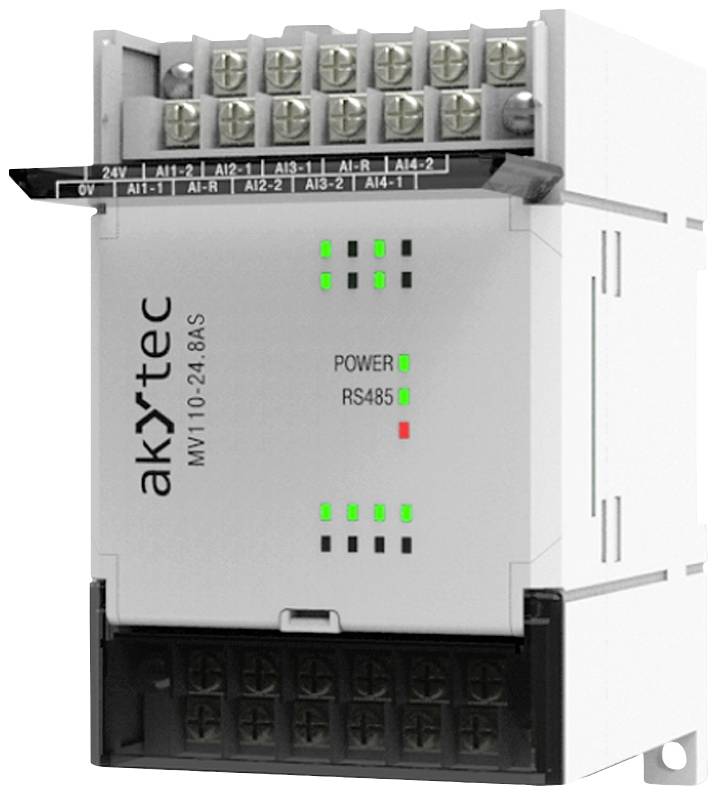

akYtec MV110-24.8AS 53956 PLC analogue input module 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 265.00 / piece)
€ 265.00
incl. VAT
Only 1 Piece(s) available
Highlights & Details
MV110-24.8AS, analog input module
- The MV110-8AS analog input module is an expansion module with 8 analog inputs for the following standard signals: 4-20 mA, 0-20 mA, 0-5 mA and 0-10 V
- The module has the following galvanically isolated circuits: Power supply, analog inputs and RS485 interface
- Connection of peripherals with analog outputs
- Conversion of analogue signals into digital values
- Sensor condition diagnostics
- RS485 network status diagnosis
- Generate the corresponding error or alarm signals
- Slave in the sense of the Modbus protocol
- Support of Modbus RTU and Modbus ASCII
Technical specifications
- Power supply: 24 (21…35) VDC
- Power consumption: max. 6 W
- Digital inputs: -
- Digital outputs: -
- Protocol:ModBUS RTU/ASCII, akYtec
- Ambient temperature -20…+55 °C
- Storage temperature: -25…+55 °C
- Humidity: Up to 80%, at +25°C non-condensing
- Protection class: IP20
- Dimensions 63 x 110 x 75 mm
- Weight approx. 240 g
- Housing material: Plastic
- Analog inputs: 8
- Analogue outputs: -
- Connection D+, D-
- Sampling time per input (max.): 5±2% ms
- Basic error: 0.0025
- Temperature influence: 0.0012
- Permissible input voltage: -40…40 V
- Product type
PLC analogue input module
- Counter
Impulszähler
- No. of analogue inputs
8
- No. of inputs (max.)
8
- Min. operating voltage
21 V DC
- Operating voltage
21 - 35 V DC
- Max. operating voltage
35 V DC
- Operating voltage
24 V DC
- Height
63 mm
- Length
110 mm
- Width
75 mm
IP20
- Type
MV110-24.8AS
- Manufacturer part #
53956
- Dim
(L x W x H) 110 x 75 x 63 mm
- Max. ambient temperature
-20 °C
- Min. ambient temperature
+55 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219671 akYtec MV110-24.8AS 53956 PLC analogue input module 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- Module MV110-24.8AS
- Quick guide
