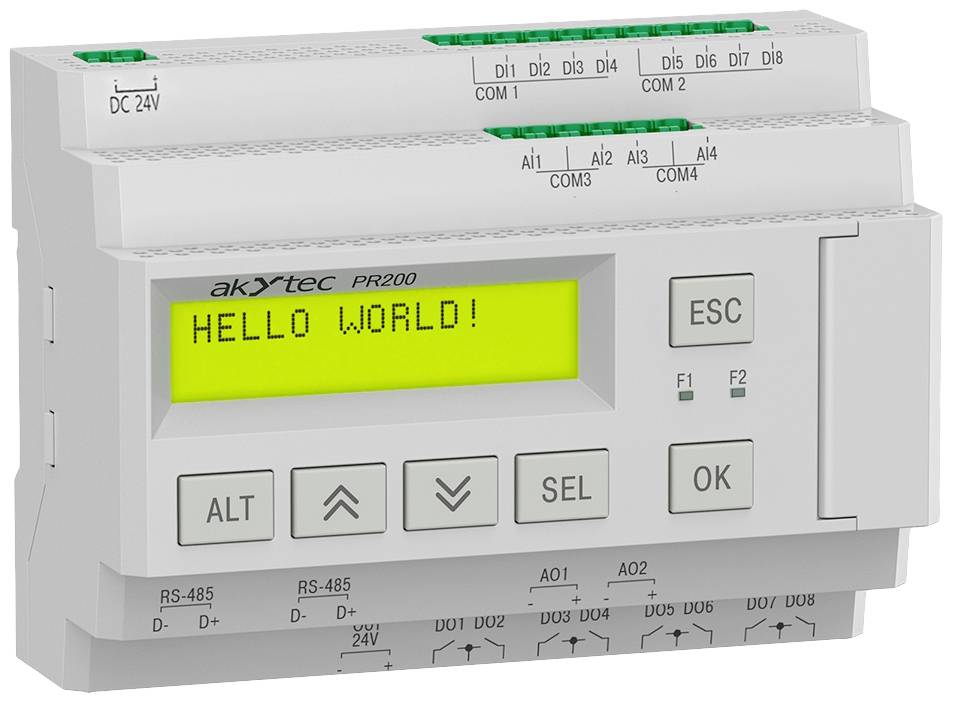

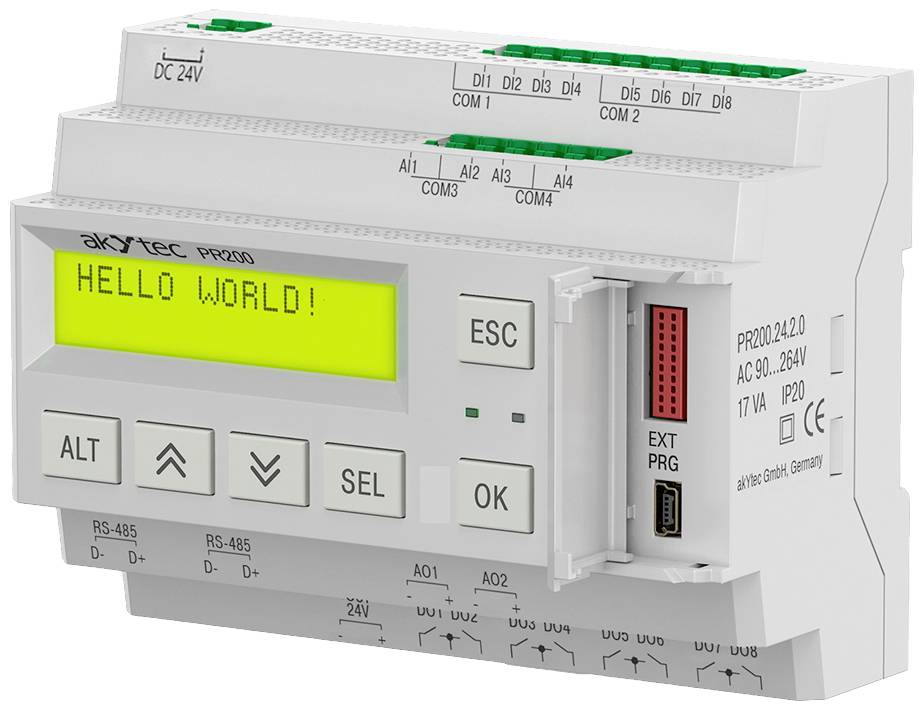

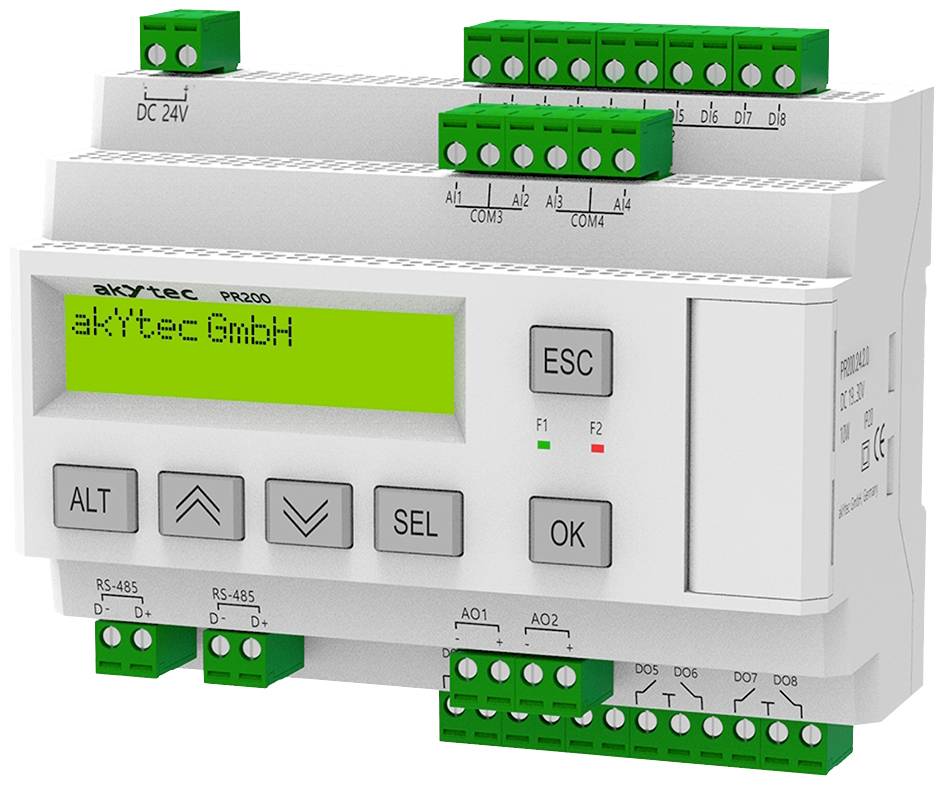

akYtec PR200.24.2.0 55909 Relay 24 V DC
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Only 1 Piece(s) available
Highlights & Details
PR200.24.2.0, programmable relays
- Connection of peripherals such as sensors and actuators via digital and analogue inputs and outputs
- Connection of sensors with 4-20 mA or 0-10 V, as well as resistance sensors, PTC, KTY thermistors and high resistance thermometers (Pt1000)
- Control of the outputs according to the input states and the logic of the stored user program
- Configuration with the function keys
- Programming the LCD display and two LEDs
- Display the error states
- Pluggable terminal strips
Technical specifications
- Power supply: 24 (19…30) VDC
- Power consumption: max. 10 W
- Digital inputs 8; 24 VDC
- Ambient temperature: -20…+55°C.
- Storage temperature: -25…+55°C.
- Humidity: Up to 80%, at +25°C non-condensing
- Protection class: IP20
- Dimensions 123 x 108 x 58 mm (with terminal strip)
- Weight approx.: 600 g
- Protection class III
- Analog inputs 4; 0-10 V, 4-20 mA, 0-4 kOhm
- Digital outputs (relays): 8; relays (NO)
- Analogue outputs 2; 4-20 mA
- akYtec ALP
- Interface Mini-USB 2.0
- Function keys: 6
- LEDs:F1 (green), F2 (red), programmable
- 2 x 16-digit LCD, background illumination
- RS-485 interface: None
- No. of analogue inputs
4
- No. of analogue outputs
2
- No. of digital inputs (max.)
8
- No. of relay outputs (max.)
8
- Min. operating voltage
19 V DC
- Operating voltage
19 - 30 V DC
- Max. operating voltage
30 V DC
- Operating voltage
24 V DC
- Height
123 mm
- Length
108 mm
- Width
58 mm
IP20
- Type
PR200.24.2.0
- Manufacturer part #
55909
- Dim
(L x W x H) 108 x 58 x 123 mm
- Display
Yes
- Max. ambient temperature
-20 °C
- Min. ambient temperature
+55 °C
- Product type
Relay
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3219682 akYtec PR200.24.2.0 55909 Relay 24 V DC
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Scope of delivery
- PR200.24.2.0
- Quick guide
- USB cable
- Terminal strips (set)
- Mechanical coding (set)
- USB stick with software and documentation
