Name: Ansmann Powerline 5 Pro Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3
Brand: Ansmann
SKU: 1530781
Availability: InStock

'Ansmann Powerline 5 Pro' charger with four charging slots and a digital display. Suitable for various battery types.

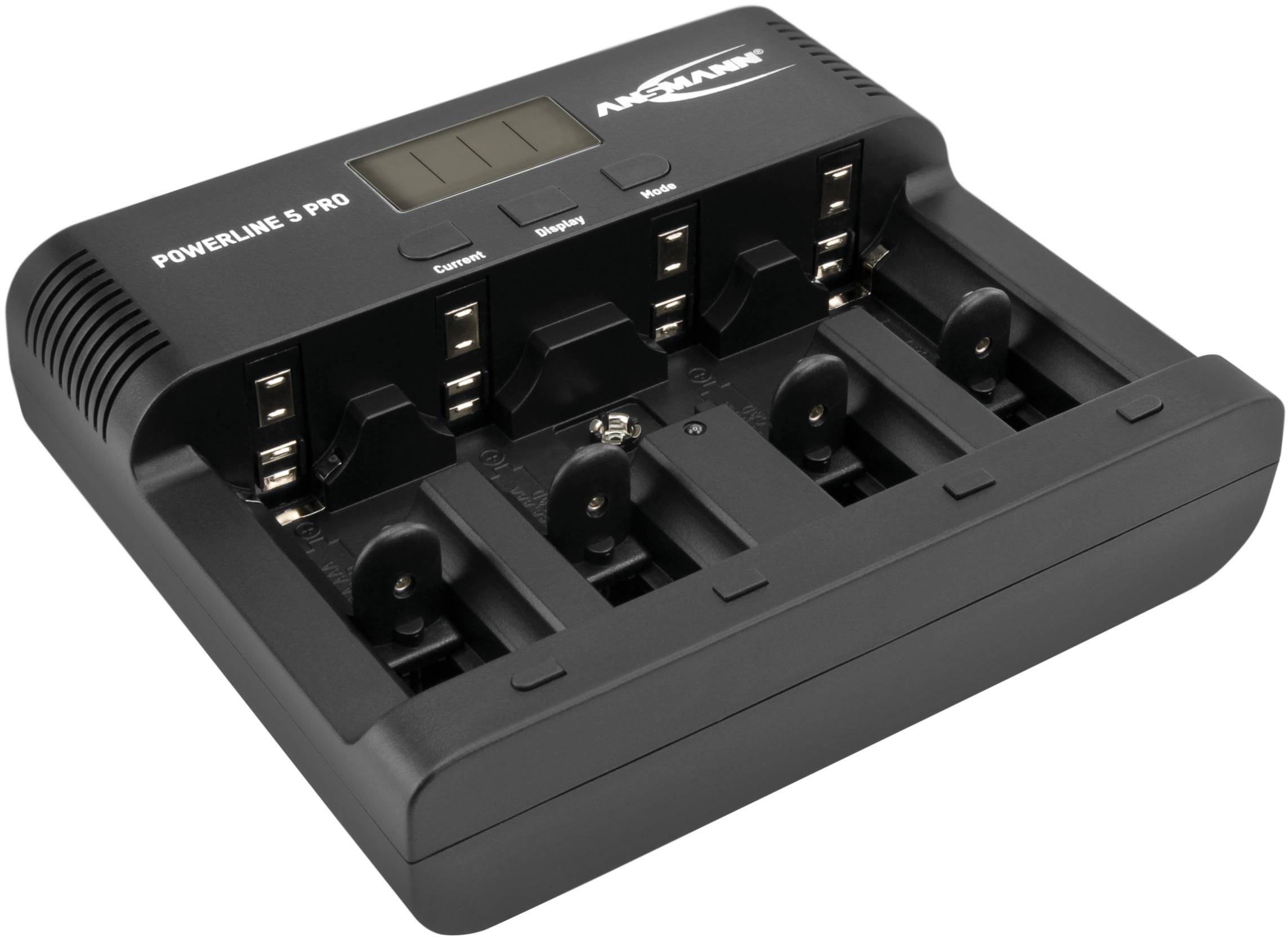

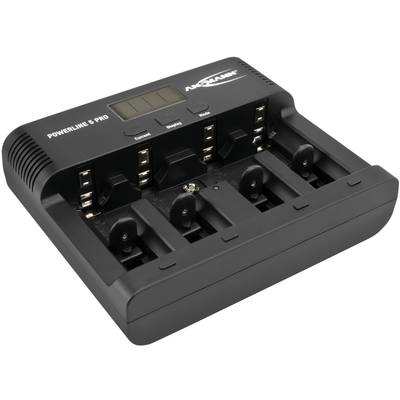

Charger with the inscription 'POWERLINE 5 PRO', showing four charging slots for AA or AAA batteries. LCD display and control buttons visible.

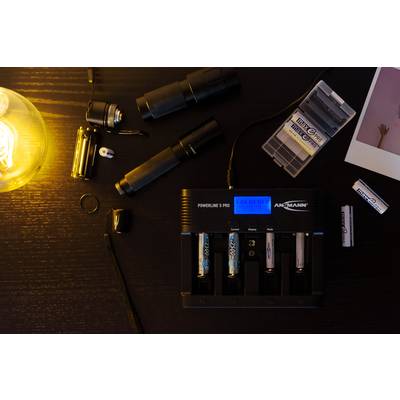

A battery charger is charging several AA batteries on a table. Next to it are torches, a battery container, and a photograph.

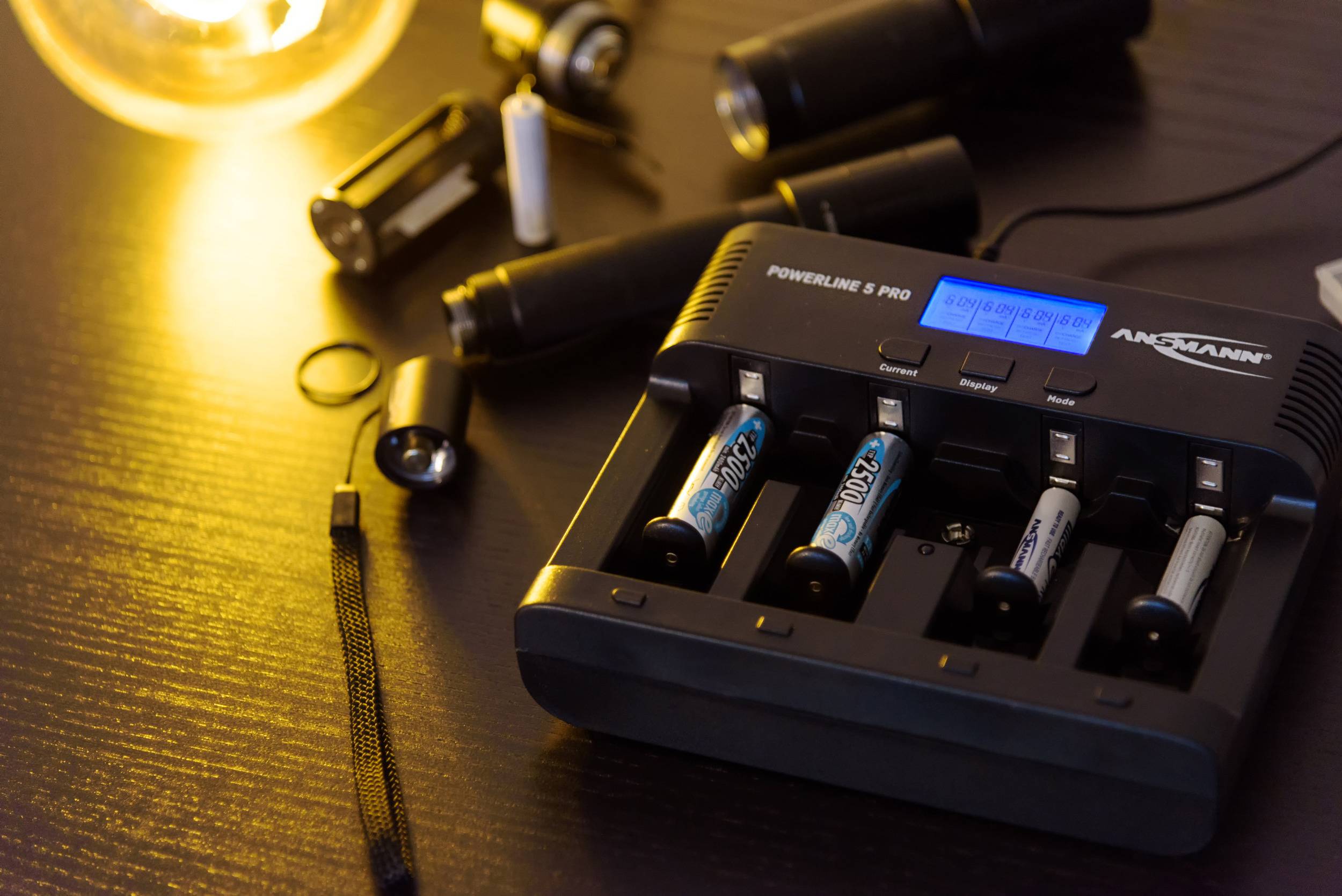

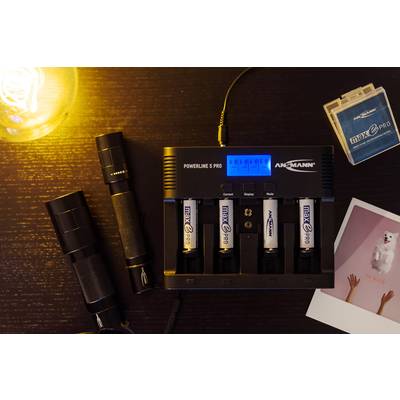

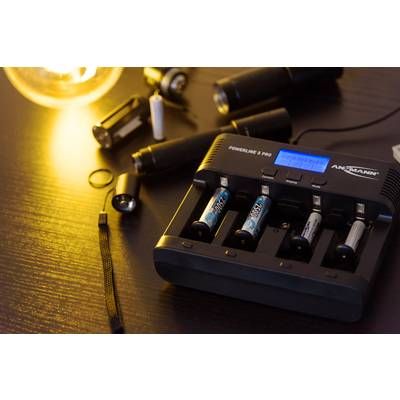

'Charger with four charged batteries on a table, surrounded by torches and a light bulb providing warm illumination.'

Ansmann Powerline 5 Pro Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3-4

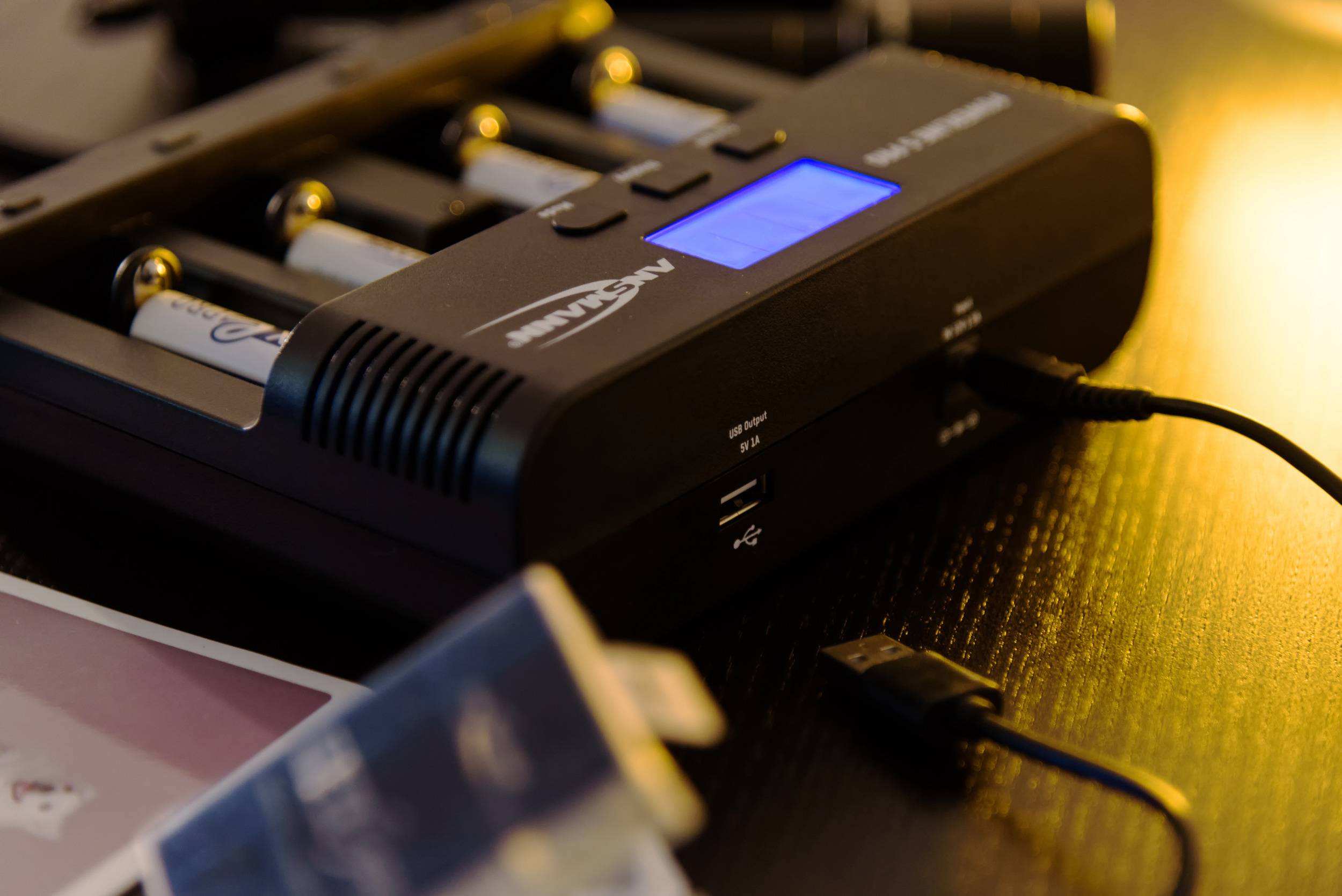

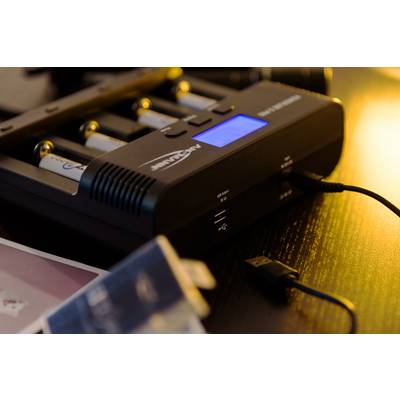

Battery charger with four AA batteries inserted and a blue display showing charging status, surrounded by a USB cable against a blurred background.

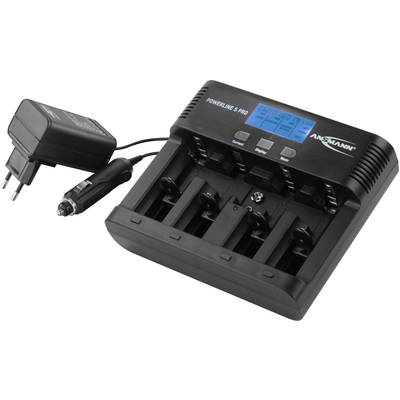

'Battery charger with five charging slots and a digital display, alongside a power adapter and a car adapter.'

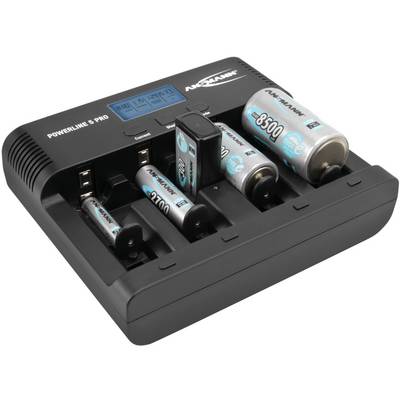

Battery charger with five slots for various battery sizes, including AA, AAA, C, D and 9V batteries, on a black base.

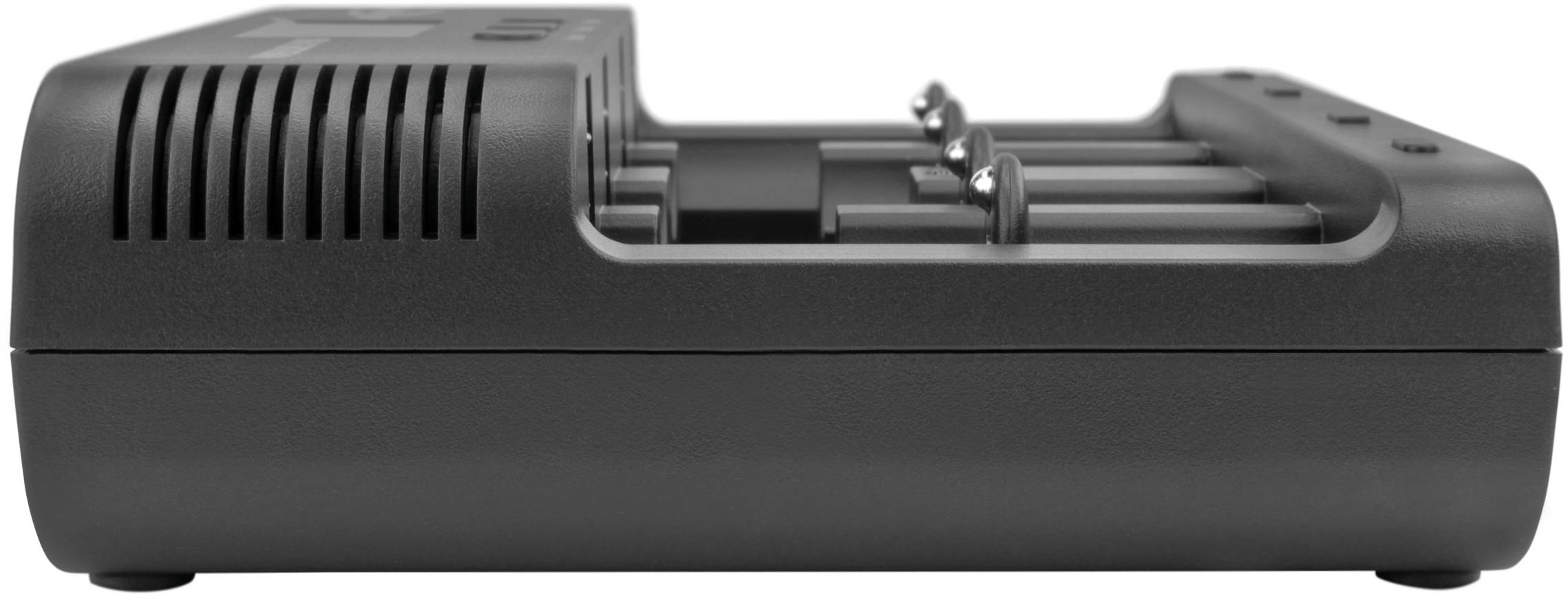

A black battery charger, photographed from the side, with two visible charging slots.

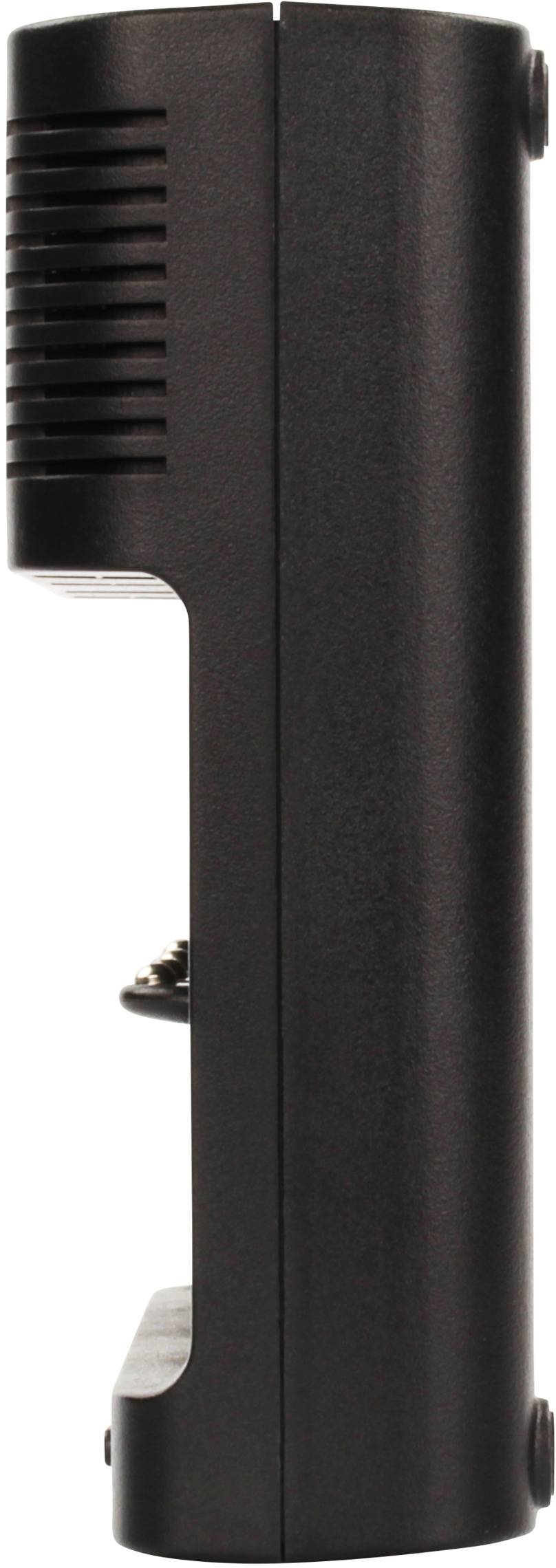

Side view of a black, rectangular device with ventilation slots and mounting screws, possibly a piece of technical equipment.

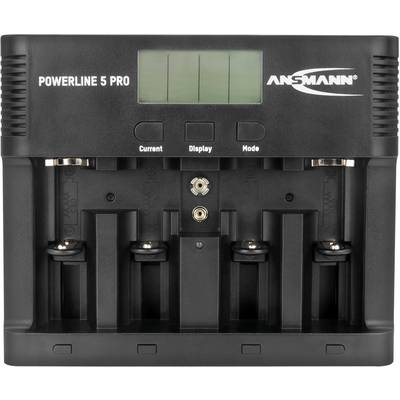

Charger with four slots for AA/AAA batteries. LCD display at the top, with power, display, and mode buttons underneath.

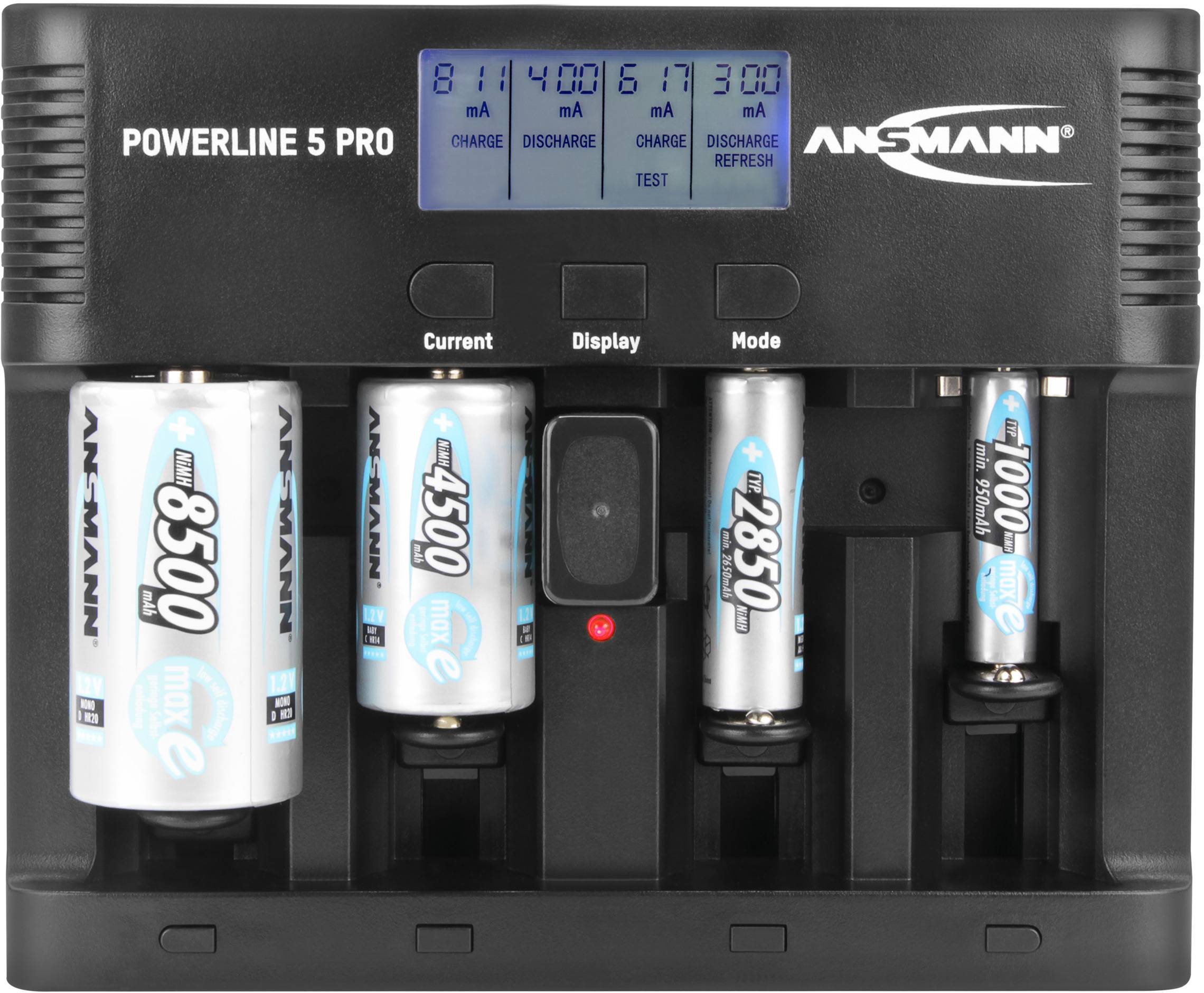

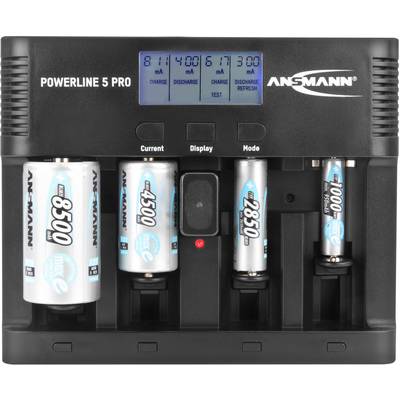

'ANSMANN Powerline 5 Pro Charger with four AA batteries and LCD display. Various charging and discharging modes.'

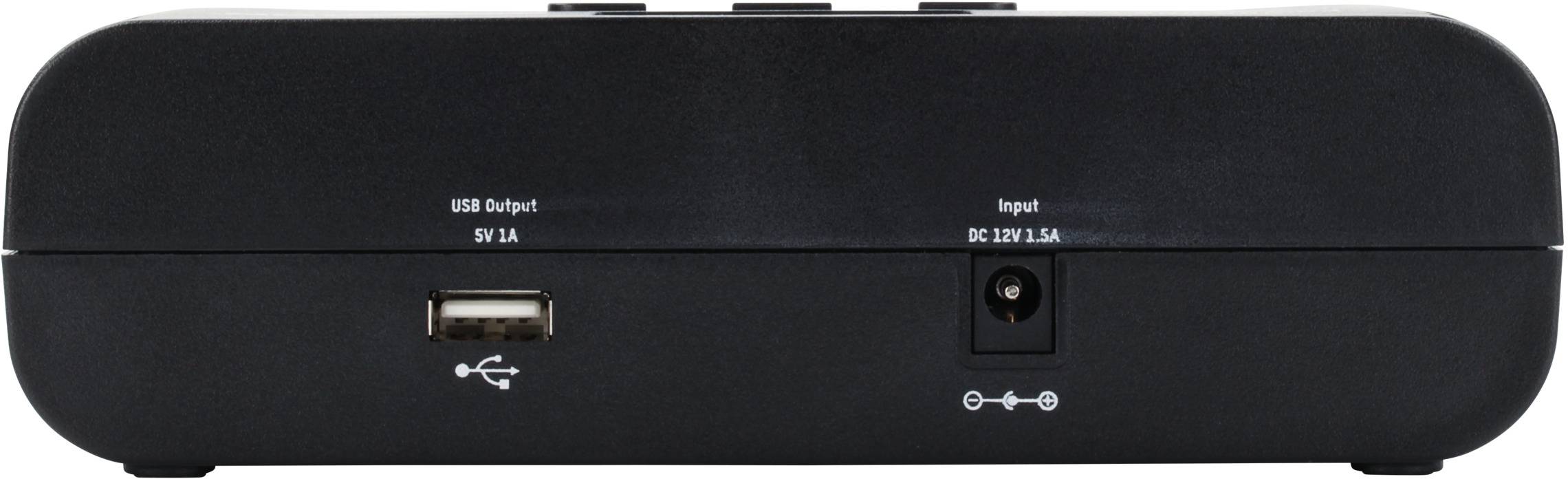

Rear view of a black device with a USB port, power connection (DC IN 3A), and power supply symbols.

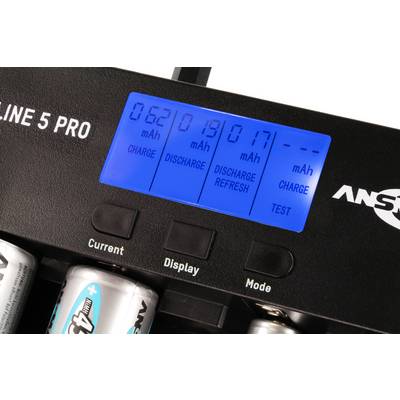

The image shows a charger display with four battery compartments, indicating capacity and modes such as 'CHARGE' and 'DISCHARGE'.

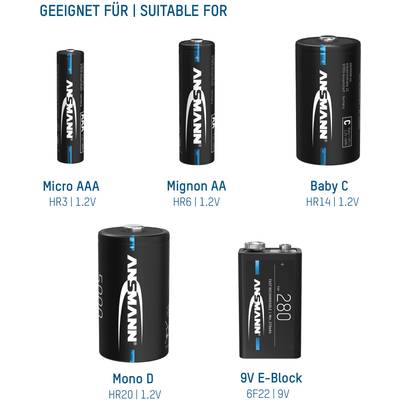

'Suitable for' shows five Ansmann battery types: Micro AAA, Mignon AA, Baby C, Mono D and 9V E-Block, each with type and voltage.

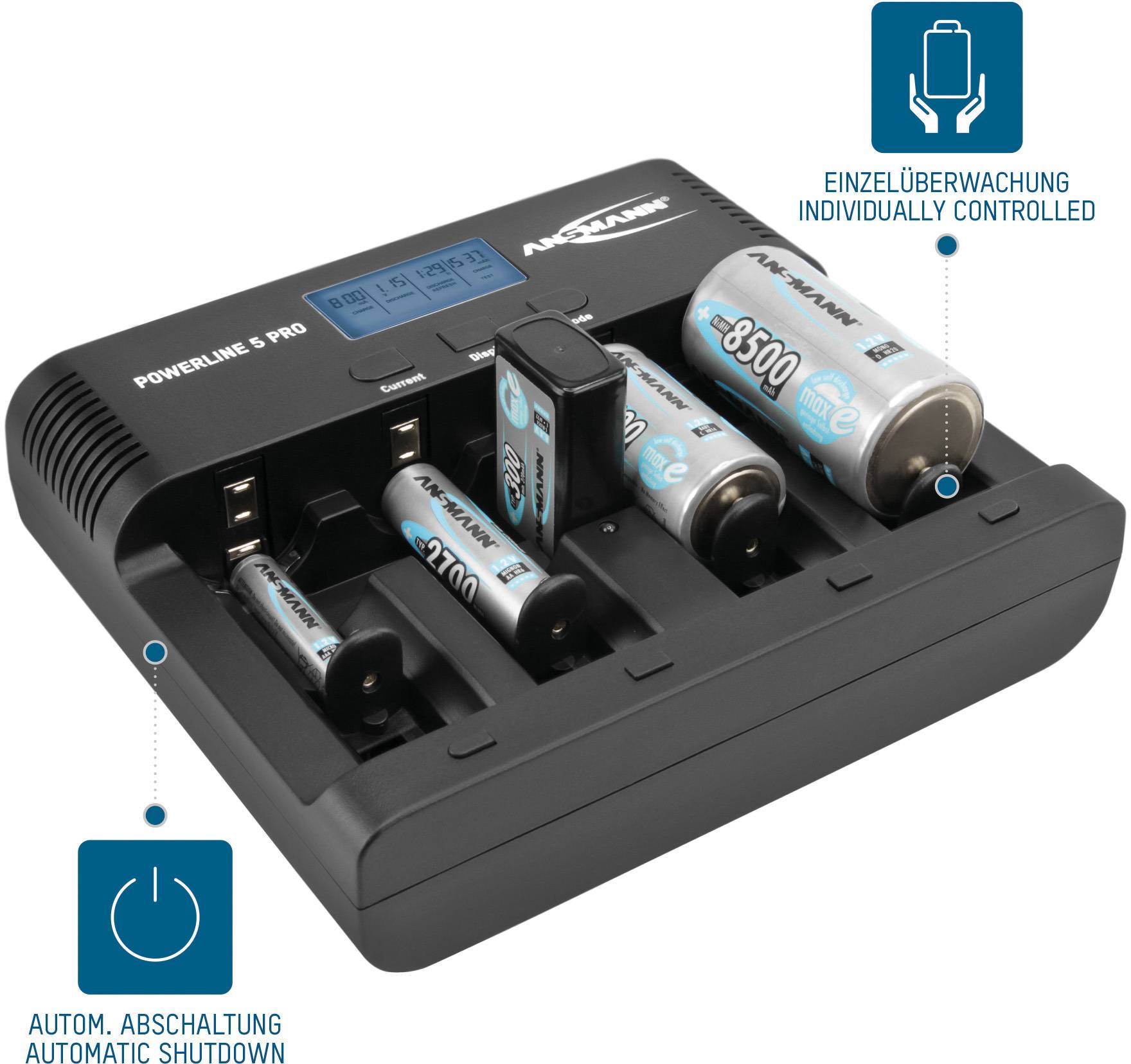

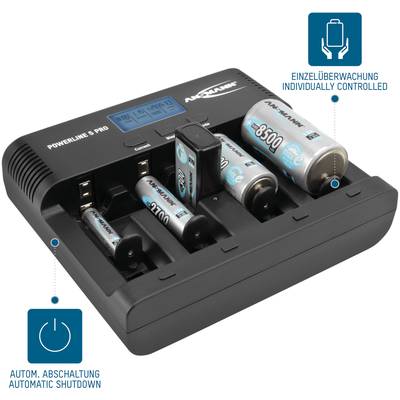

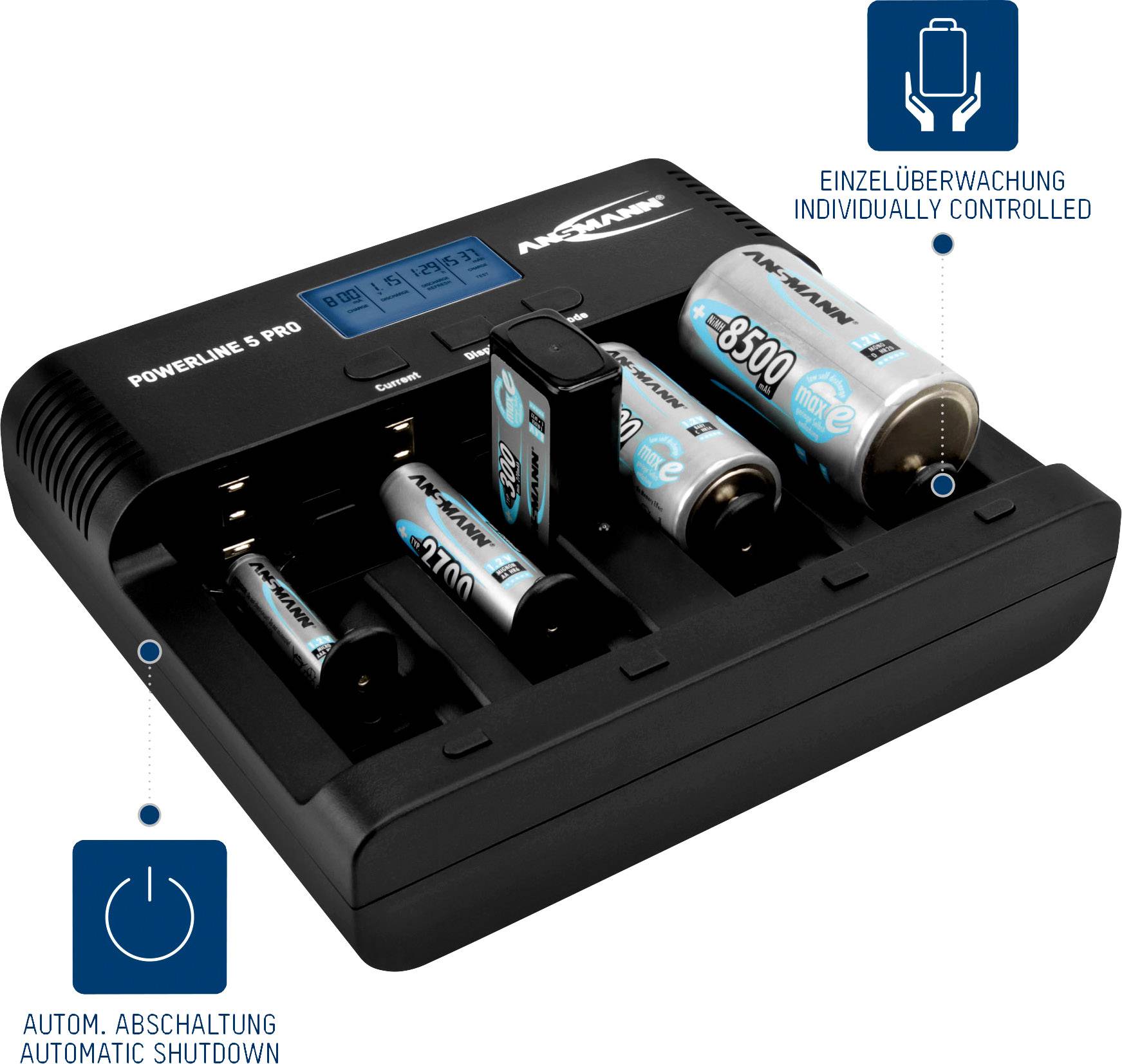

A battery charger charges various batteries simultaneously. It has a display and features such as 'individual monitoring' and 'automatic cut-off'.

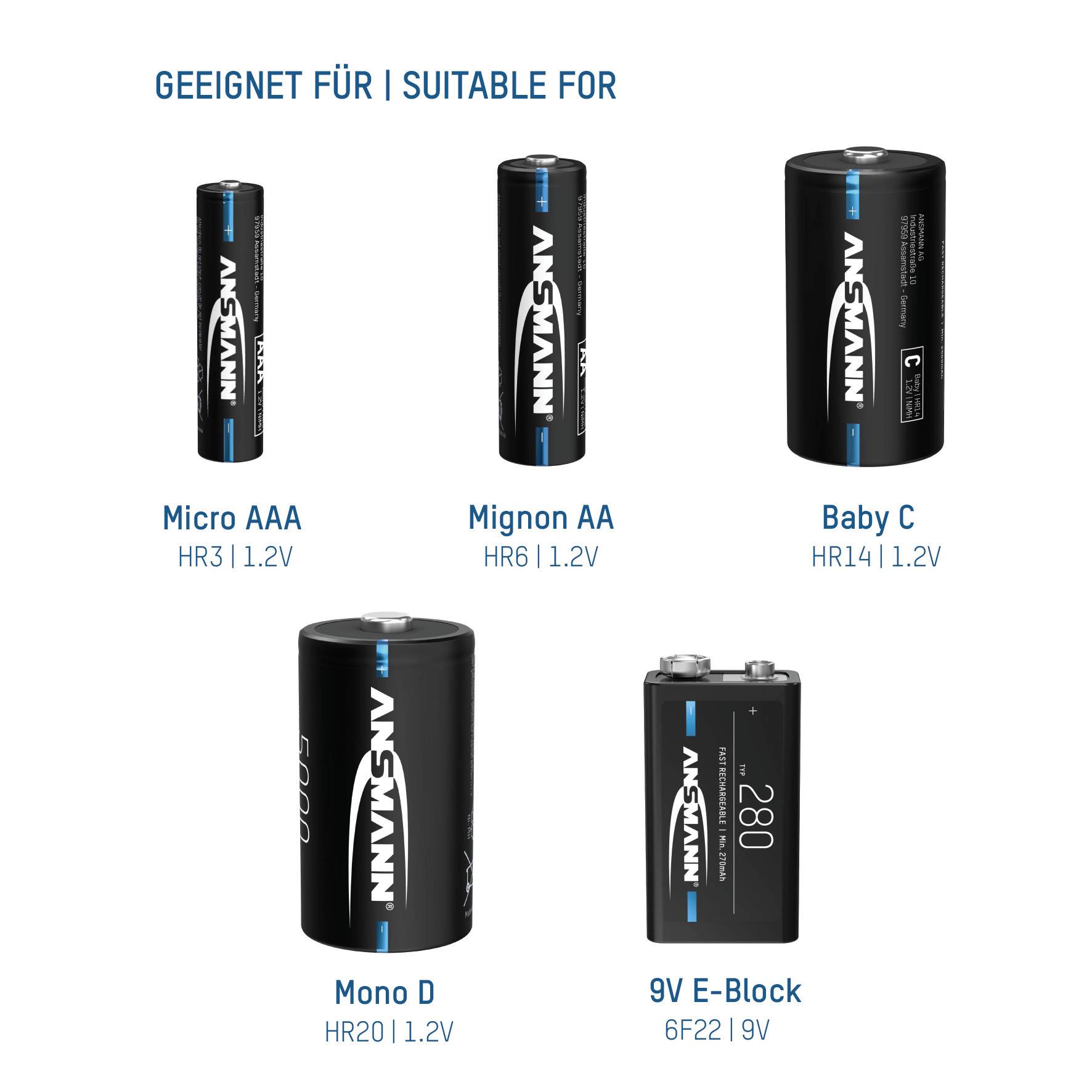

'Suitable for' indicates which Ansmann batteries (Micro AAA, Mignon AA, Baby C, Mono D, 9V E-Block) are compatible in size and type for devices.

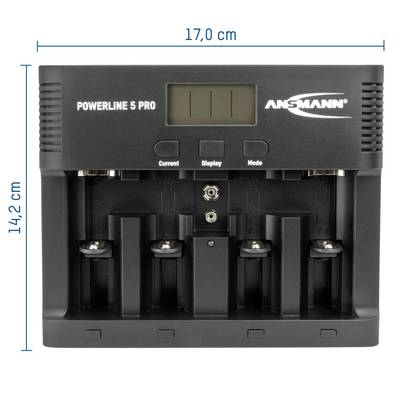

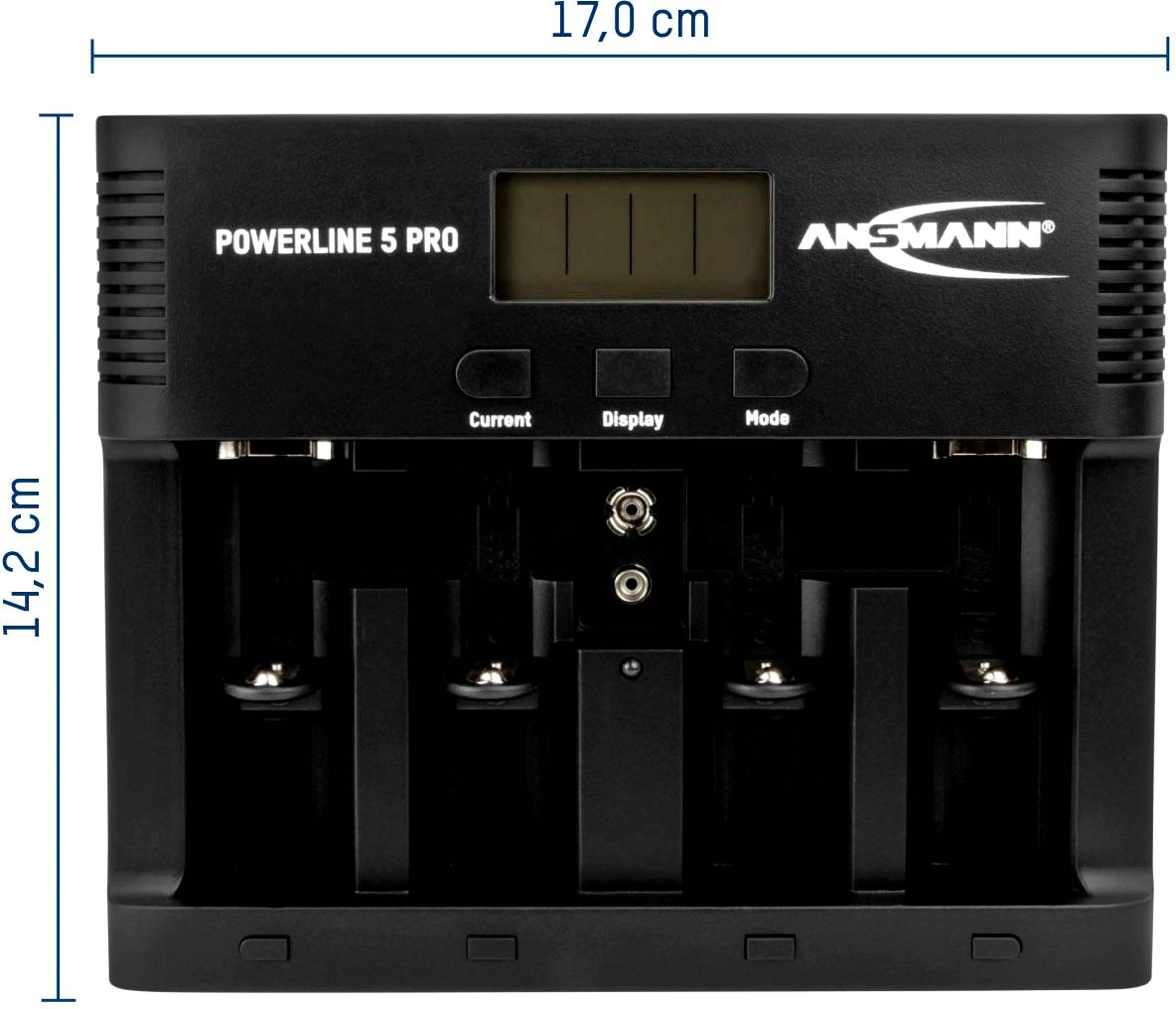

Charger 'Powerline 5 Pro' with LCD display, four charging slots, and control buttons, 17 cm x 14.2 cm.

1/19

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 27 Oct

14 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by VOLTCRAFT

VOLTCRAFT P-600 Charger for cylindrical cells NiMH AAA , AA , C, D, 9V PP3

€ 42.99

incl. VAT plus

Highlights & Details

Powerline 5 Pro charger

Fully automatic charger - 4 charging programs
Charge / discharge / refresh and test
Individual bay monitoring 1 to 4 rechargeable batteries + 9V block

Technical specifications

Charging current can be set to 400, 600, 800, 1500, 1800 mA
USB charging current 1000 mA

Matching rechargeable battery: NiCd
NiMH

Product type: Charger for cylindrical cells

Suitable for battery size: AAA
AA
C
D
9V PP3

Charging slots: 5

AAA: 4

AA: 4

Size C: 4

Size D: 4

9 V: 1

Operating voltage: 100 - 240 V
12 V

Discharge current: 400 mA

Max. charging current per slot: 1800 mA

Charging current (AAA): 800 mA

Charging current (AA): 1800 mA

Charging current (C): 1800 mA

Charging current (mono): 1800 mA

9 V battery charging current: 15 mA

Charger features: Faulty battery detection
Battery refresher/regenerator
Individual slot monitoring
Discharger function
Trickle charging
Powered by in-car outlet (12 V)
Selectable charging current
Cell temperature based auto switch-off
Quick-charging function
Timer settings

Average charging time for 9 V/150 mAh batteries: 700 Min.

Charging time for AAs: 80 Min.

Length: 200 cm

Width: 170 mm

Height: 49 mm

Depth: 142 mm

Weight: 740 g

Dim: (L x W x H) 200 cm x 170 mm x 49 mm

Wireless charging: No

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1530781 Ansmann Powerline 5 Pro Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3

User & Safety Instructions

User & Safety Instructions 1530781 Ansmann Powerline 5 Pro Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3

Conformity certificate

Conformity certificate 1530781 Ansmann Powerline 5 Pro Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3

Warranty Terms

Warranty Terms 1530781 Ansmann Powerline 5 Pro Charger for cylindrical cells NiCd, NiMH AAA , AA , C, D, 9V PP3

Description

The Powerline 5 Pro – the professional all-purpose weapon under the chargersThe new Ansmann Powerline 5 Pro is the perfect combination of charger, test station and battery maintenance device. This rapid charger was designed for professional use in commercial and private applications but is still extremely easy to use. The intelligent Ansmann Powerline 5 Pro enables NiMH/NiCd quality rechargeable batteries of all manufacturers, size AAA, AA, C, D and a 9V E block to be charged (please use fast-charging rechargeable batteries with higher charging currents).Maintenance program includedThe product has four charging programs for round cells, with which rechargeable batteries can be charged, pre-discharged, refreshed (refresh function by repeatedly charging and discharging) or tested for their capacity (in mAh). The programs can be set independently for each charging slot (individual bay monitoring and control). Pre-damaged batteries are regenerated, unusable batteries are identified and discarded.Easy to read LCD displayAll functions (capacity, voltage, charging and discharging current as well as charging time) are shown separately in the display of the battery charger for each charging slot. The very clear, blue-lit display gives the best reading of the displayed values under all lighting conditions.The latest and advanced charging technologyThe latest microprocessor charging technology provides reverse polarity and short circuit protection as well as multiple overload protection.With 9 V rechargeable batteries the device is switched off via a timer. After charging the batteries the Ansmann Powerline 5 Pro automatically switches to pulse-maintenance charging. This ensures perfect performance, a long battery life and always ready to use rechargeable batteries.
