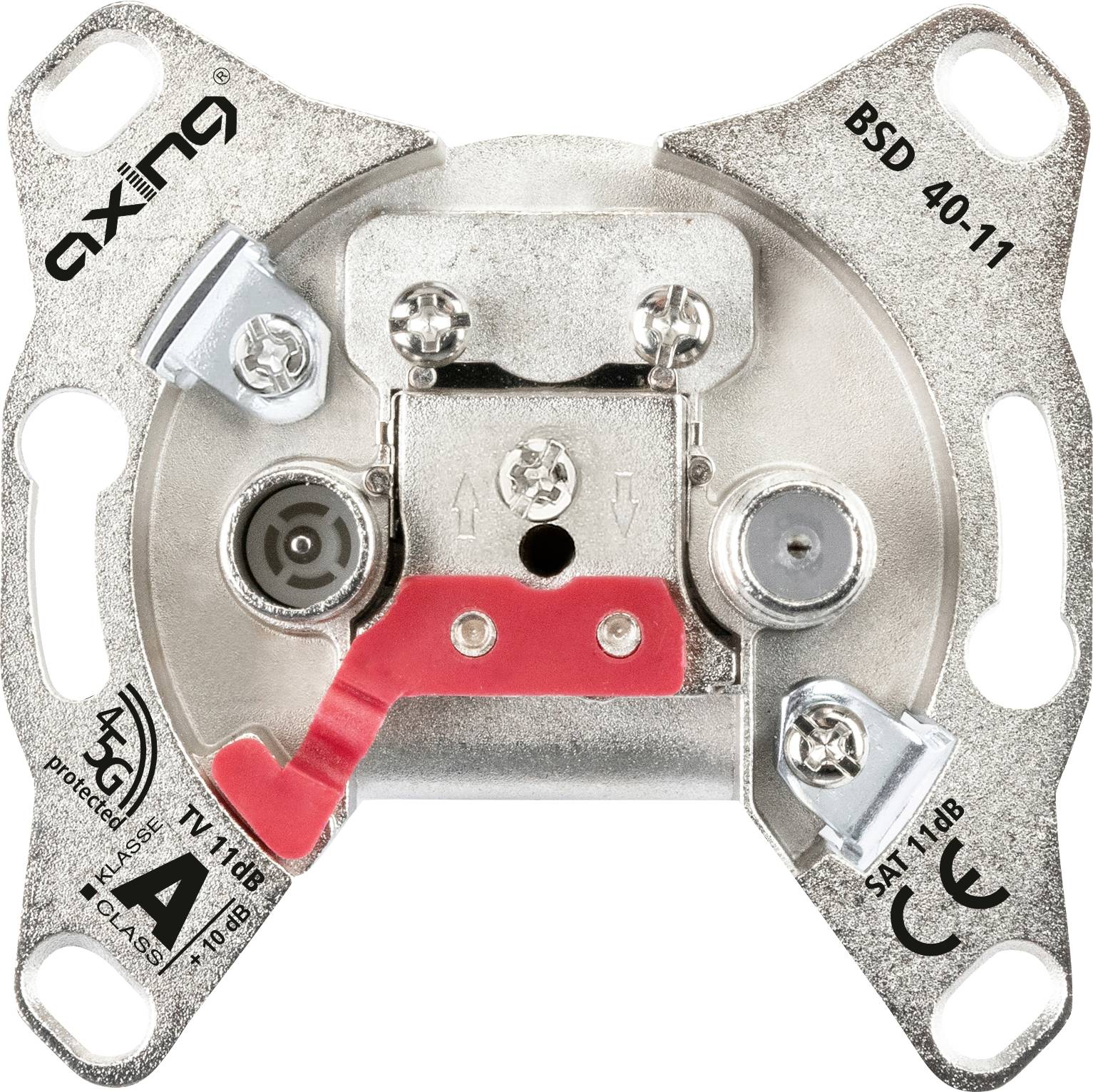

Axing BSD04011 Antenna socket SAT, TV, FM Flush mount Non-terminated
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
4% = € 0.41
€ 9.67
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14 days return policy included
Technical specifications
- Type
Non-terminated
- Product type
Antenna socket
- Suitable for
SAT
TV
FM
- Mounting type
Flush mount
- Features
Reverse channel
- FM (min.)
5 MHz
- FM (max.)
862 MHz
- TV signal frequency (min.)
5 MHz
- TV signal frequency (max.)
862 MHz
- SAT frequency (min.)
950 MHz
- SAT frequency (max.)
2200 MHz
- DATA frequency (min.)
5 MHz
- DATA frequency (max.)
862 MHz
- No. of FMs
1 x
- No. of TVs
1 x
- No. of SATs
1 x
- SAT signal attenuation
11 dB
- DATA signal attenuation
11 dB
- Dim
(L x W x H) 39 x 68 x 68 mm
- DC outlet
Yes
- Width
68 mm
- Height
68 mm
- Length
39 mm
- UKCA
yes
