Name: B-SAFETY BL550038 Safety light Ceiling surface-mount
Brand: B-SAFETY
SKU: 2357085
Availability: InStock

A circular smoke detector with a central lens and side LED indicator is mounted on the ceiling. Ideal for fire protection.

Smoke detector with a central test button and two small LEDs to indicate battery status and function test.

A white smoke detector with a red and a small black indicator on the front, with a central test button.

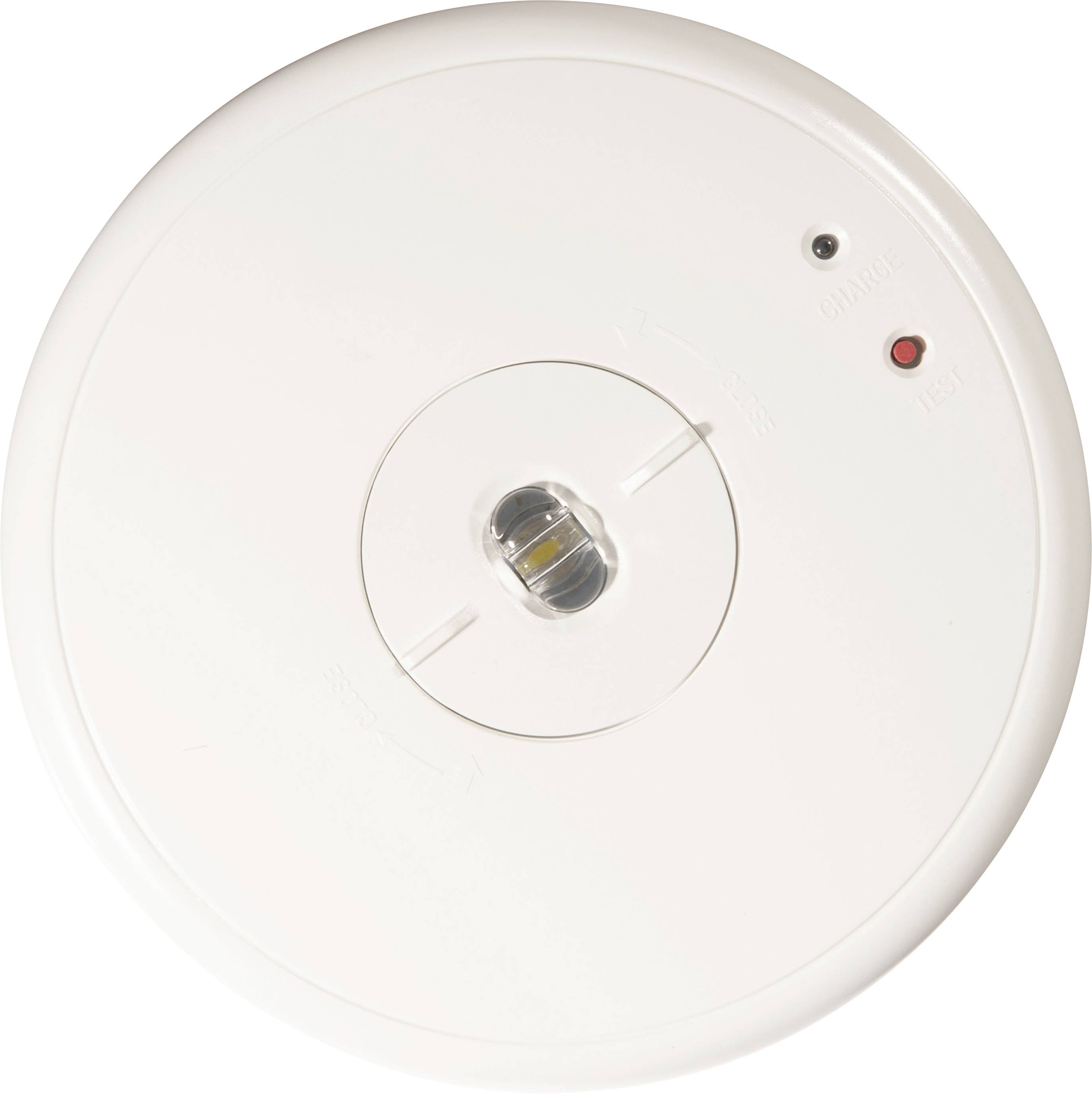

B-SAFETY BL550038 Safety light Ceiling surface-mount-3

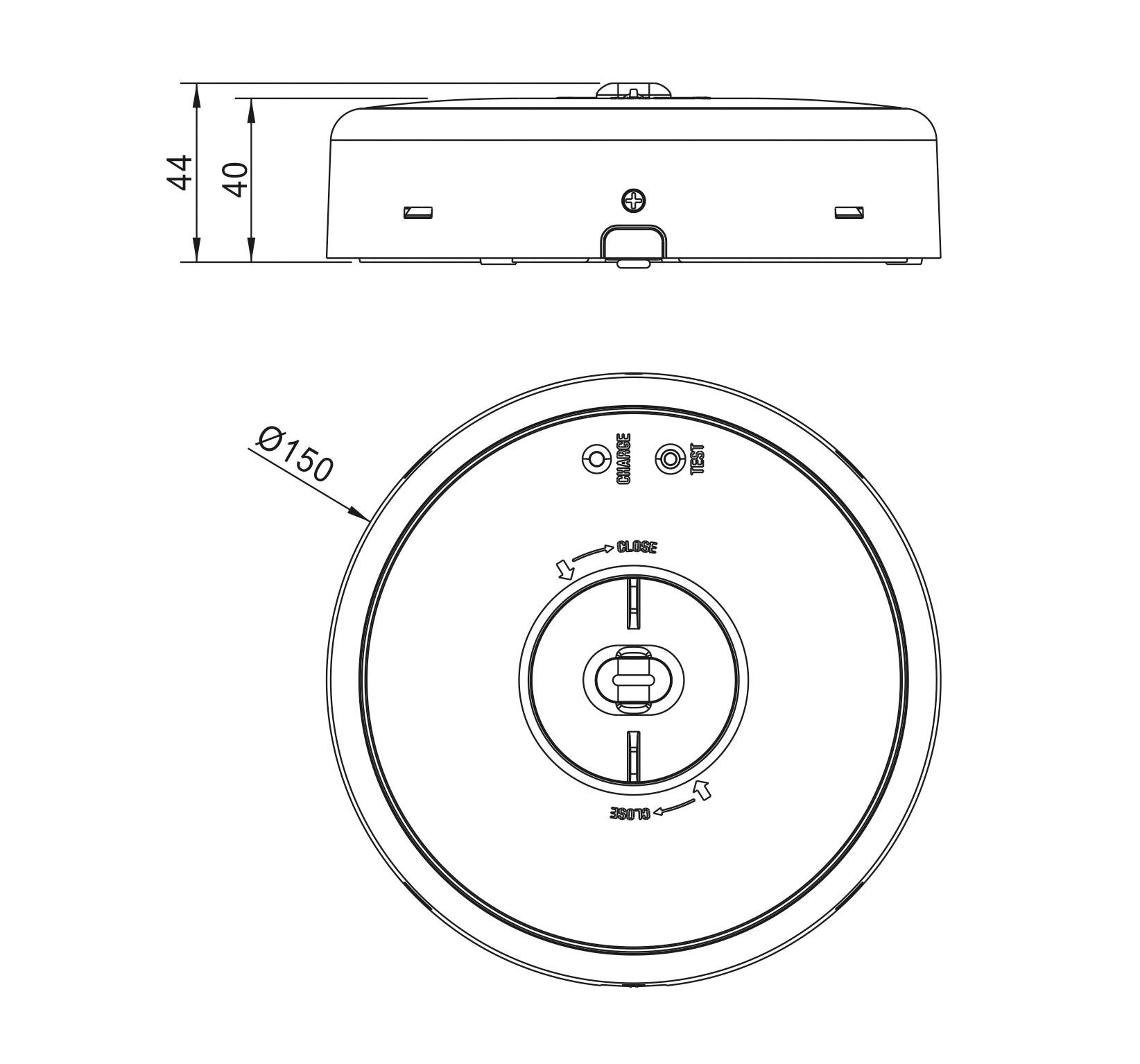

Technical drawing of a round device with a diameter of 150 mm and height 44 mm. Top: Side view. Bottom: Top view with indicators.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 97.99 / piece)

€ 97.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Luminous flux 200 lm with 3-hour emergency operation
Luminous flux 115 lm with 8-hour emergency operation
Use from 0°C to +40°C.
NI-MH rechargeable battery 3.6 V / 3000 mAh

Dim: (Ø x H) 150 mm x 44 mm

Product type: Safety light

Main battery supply: No

Max. battery life: 8 h

Backlit: Yes

: 3 W

Bulb type: LED (monochrome)

Material: Polycarbonate (PC)

Mounting type: Ceiling surface-mount

Height: 44 mm

(Ø): 150 mm

: IP20

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2357085 B-SAFETY BL550038 Safety light Ceiling surface-mount

User & Safety Instructions

User & Safety Instructions 2357085 B-SAFETY BL550038 Safety light Ceiling surface-mount

Description

Elegant and powerful LED safety lamp (ceiling installation) incl. three bayonet-type lenses for changing lenses, an asymmetrical, symmetrical lens and a symmetrical, narrow beam lens for extreme ceiling heights. The single battery emergency light with AUTOTEST function, signaling via status LED, including test button. ACCORDING TO DIN EN 60598-1, DIN EN 60598-2-22, DIN EN 55015, DIN EN 61000-3-2, DIN EN 61000-3-3, DIN EN 61547 and DIN EN 1838 for systems according to DIN VDE 0108, for separate operation.

Product features:
· Automatic test function AUTOTEST, signaling via 1x multi-colored LED, including test button
· Can be switched from continuous to standby mode
· Switchable from 3 hours to 8 hours operating time
· Asymmetrical radiation characteristic for escape route lighting, symmetrical radiation characteristic for anti-panic lighting
· Special LED lenses for perfect light distribution
· Use in burös, shops, receptions, elevators, entrance halls, Classrooms etc.
· ACCORDING TO DIN EN 60598-2-22, EN 1838, EN 62034 AND DIN VDE 0108

This text is machine translated.

Features

Single battery safety lamp S-LUX STANDARD material: Polycarbonate color: White (RAL 9003) Mounting type: Ceiling installation Protection type: IP 20 Protection class: I Lamps: LED radiation characteristic: Incl. 1x asymmetrical lens incl. 1x symmetrical lens incl. 1x deep-radiating symmetrical lens Light current: 200 lm = 3h, 115 lm = 8h Rated power: 3 W.
Nominal voltage: 230 V AC Emergency light: 3H / 8h (operating time adjustable via DIP) Battery: NI-CD 3.6 V / 3.0 Ah AUTOTEST

Scope of delivery

1 x asymmetric route line (pre-assembled)
1 x symmetrical lens (flat lens up to installation height 4.5 m)
1 x deep-radiating symmetrical lens (flat lens up to installation height 20 m)

Description

Features

Single battery safety lamp S-LUX STANDARD material: Polycarbonate color: White (RAL 9003) Mounting type: Ceiling installation Protection type: IP 20 Protection class: I Lamps: LED radiation characteristic: Incl. 1x asymmetrical lens incl. 1x symmetrical lens incl. 1x deep-radiating symmetrical lens Light current: 200 lm = 3h, 115 lm = 8h Rated power: 3 W.
Nominal voltage: 230 V AC Emergency light: 3H / 8h (operating time adjustable via DIP) Battery: NI-CD 3.6 V / 3.0 Ah AUTOTEST
