A red emergency stop switch by BACO, Model 33E10, mounted on a bracket.

A red emergency stop switch by BACO, Model 33E10, mounted on a bracket.

Technical drawing of a round push-button switch with dimensions: diameter 40 mm and height 39.7 mm.

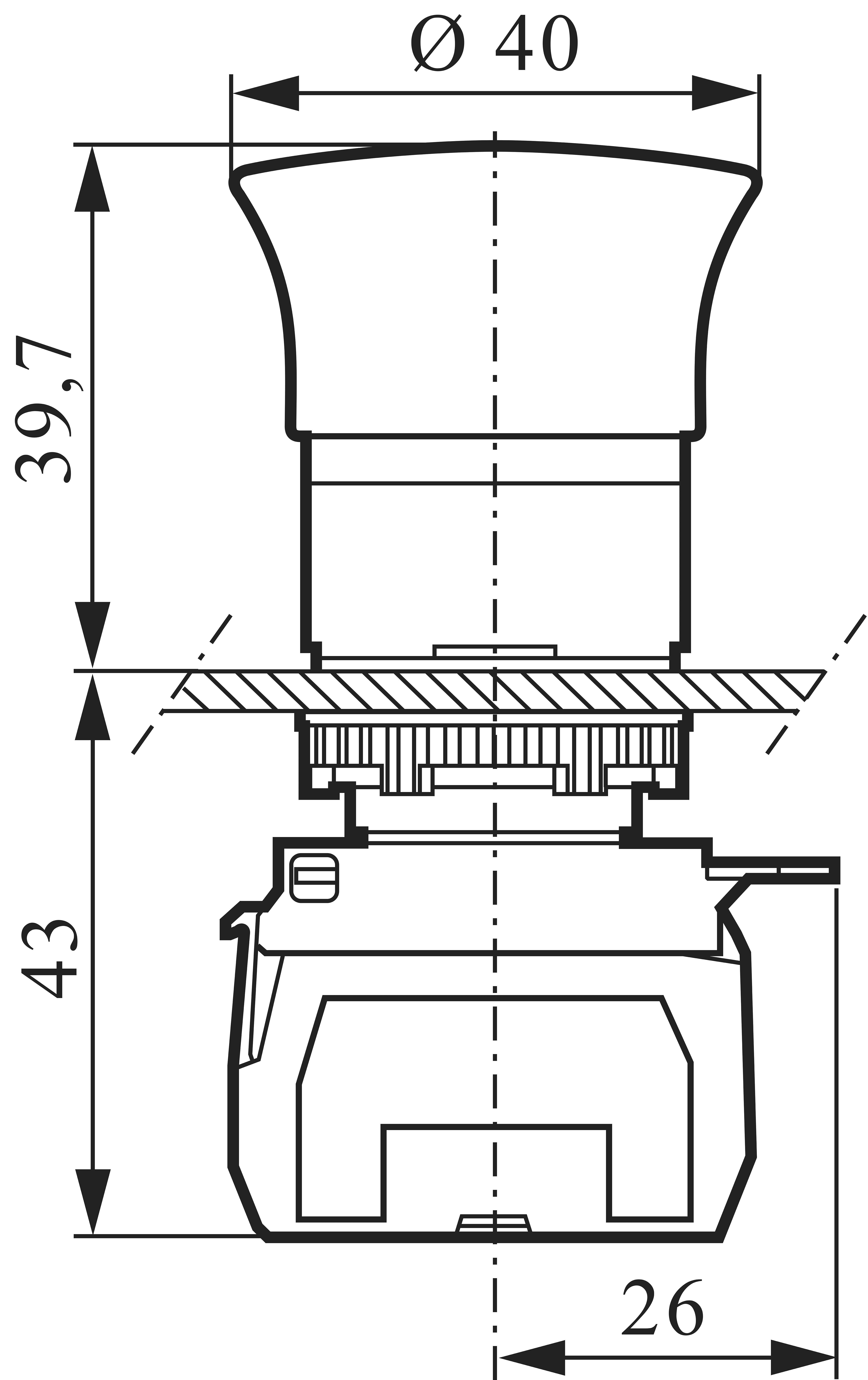

Diagram of a button with dimensions: Diameter 40 mm, Height above surface 39.7 mm, Total height 43 mm, Width 26 mm.

1/3

BACO

Datasheet (PDF)

Slovenščina

Fast track dispatch on Fri, 11 Sep

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 25.20 / piece)

€ 31.92

-21 %

€ 25.20

plus VAT.

Report legal concerns

Technical specifications

Product type: Kill switch

Switch/button features: Front ring (PVC)
Black
+ status indicator

Unlocking mechanism: Pull

Print motif: None

Lighting type: None

Factory colour: Red

Connection: Screws

Recess diameter: 22.3 mm

Functions: latch

Button Ø: 40 mm

Height: 39.7 mm

(Ø): 40 mm

Switching voltage: 600 V

Switching current (max.): 10 A

: IP69K

Type: L22DR01B

Content: 1 pc(s)

Dim: (Ø x H) 40 mm x 39.7 mm

Documents & Downloads

Datasheet

Slovenščina

Datasheet 707515 BACO BAL22DR01B L22DR01B Red

User & Safety Instructions

User & Safety Instructions 707515 BACO BAL22DR01B L22DR01B Red

Description

Scope of delivery

Front element, adapter and contact element.
