Connectors & CablesConnectorsTerminal BlocksSerial Terminals

Basic terminal block URELG 3-PMTK 2820709 Phoenix Contact

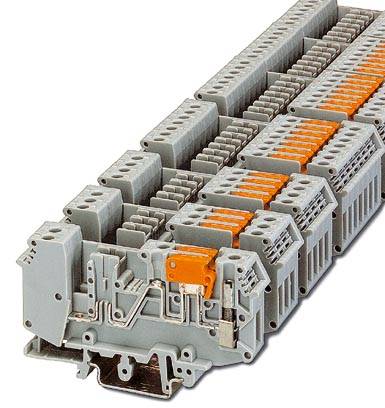

Terminal block with multi-level connections for wiring electrical circuits, grey with orange elements.
Packaging type
Piece
Product type
Continuity
Connection
Screw terminal
Plug
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
12 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 33.90 / piece)
€ 339.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Basic terminal block URELG 3-PMTK

  • URELG 3-PMTK

Technical specifications

Packaging type

Piece

Product type

Continuity

Features

with screw connection

Connection

Screw terminal

Plug

Cross section (flexible) (min.)

0.2 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.2 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

24

AWG max.

12

Clamp width

20.8 mm

Pins per row

3

Number of pins

3

Factory colour

Grey

Nominal current

16 A

Nominal current - rounded value

16 A

Nominal voltage

400 V

Stripping length (max.)

7 mm

Manufacturer part #

2820709

Content

10 pc(s)

Industrial packaging

Yes

Type

URELG 3-PMTK

Dim

(L x W x H) 20.80 x 20.8 x 86.5 mm

Width

20.8 mm

Height

86.5 mm

Length

20.80 mm

Connector colour

Grey

Insulation material

PA

Insulation

PA

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 566724 Basic terminal block URELG 3-PMTK 2820709 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566724 Basic terminal block URELG 3-PMTK 2820709 Phoenix Contact

Description

Basic termination blocks with test connection on both sides and knife disconnection for NS 32 and NS 35/7.5 DIN rail, with end cover, for ST-REL..., ST-OV... and ST-OE... plugs, 3-pos.

Hints

Special order, no right of withdrawal.
