Name: Beha Amprobe 2100-GAMMA+ BUNDLE Two-pole voltage tester CAT III 1000 V, CAT IV 600 V Acoustic, LCD, LED, Vibration
Brand: Beha Amprobe
SKU: 1782542
Availability: InStock

Highlights & Details

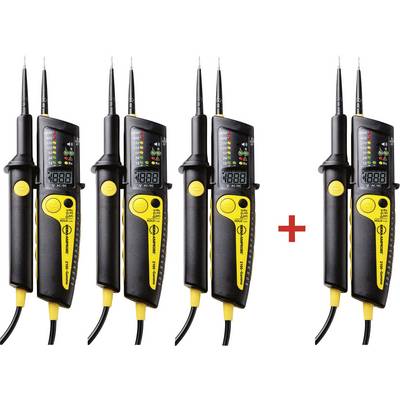

3 x 2100-GAMMA two-pole voltage tester + a free voltage tester 2100-GAMMA

LC-Display and LED-Display
RCD/FI-trigger (300 mA)
Dust- and splash-proof, IP 64
Vibration function
No accidental triggering of RCD / FI-protective switches
Measuring point lighting by means of white LED
Quick one-handed testing on mains sockets with 19 mm contact spacing without releasing the probe from the device
Built and tested according to standard for voltage tester DIN VDE 0682-401, DIN EN-61243-3

Technical specifications

Power supply: 2x AAA battery

Product type: Two-pole voltage tester

Reading type: Rotating magnetic field
Continuity
FI
Phase
Resistance testing

Display: Acoustic
LCD
LED
Vibration

V AC reading range: 12 up to 1000 V

V DC reading range: 12 up to 1200 V

Load switching: 300 mA

Reading category: CAT III 1000 V
CAT IV 600 V

: IP64

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 35 x 28 x 295 mm

Weight: 290 g

Max. frequency: 70 Hz

Min. frequency: 40 Hz

Frequency range: 40 Hz - 70 Hz

V AC reading range (max.): 1000 V

V AC reading range (min.): 12 V

Voltage DC reading range (max.): 1200 V

Voltage reading range DC (min.): 12 V

Width: 28 mm

Height: 295 mm

Length: 35 mm

Type: 2100-GAMMA+ BUNDLE

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1782542 Beha Amprobe 2100-GAMMA+ BUNDLE Two-pole voltage tester CAT III 1000 V, CAT IV 600 V Acoustic, LCD, LED, Vibration

Description

The 2100 Gamma is a robust voltage tester for voltage measurement and continuity tests, including a 4 mm tip adapter for simple measurements in power outlets. Built according to EN 61243-3, IP-64 and RCD Test. The 2100-gamma was created for industrial and commercial applications in the range of 12 - 1000 VAC/12 - 1200 VDC at safety classifications CAT IV 600 V, CAT III 1000 V, and developed according to requirements for voltage testers. The 2100-gamma voltage tester shows voltages in two different ways - via LED and LCD display.

This text is machine translated.

Features

Resistance measurement
Two-pin rotating field display
Non-contact voltage detector.

Scope of delivery

4x voltage tester 2100 Gamma
User manual
Tip adapter

Description

The 2100 Gamma is a robust voltage tester for voltage measurement and continuity tests, including a 4 mm tip adapter for simple measurements in power outlets. Built according to EN 61243-3, IP-64 and RCD Test. The 2100-gamma was created for industrial and commercial applications in the range of 12 - 1000 VAC/12 - 1200 VDC at safety classifications CAT IV 600 V, CAT III 1000 V, and developed according to requirements for voltage testers. The 2100-gamma voltage tester shows voltages in two different ways - via LED and LCD display.

This text is machine translated.
