Name: CAAE-01/01 Eaton xComfort Actuator Grey
Brand: Eaton
SKU: 2142560
Availability: BackOrder

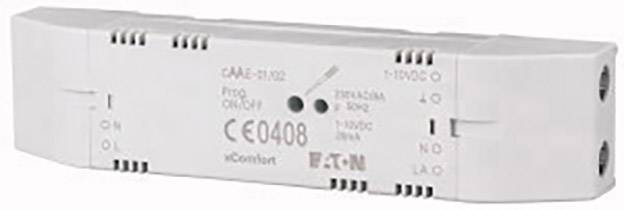

A white electrical component with labelling and connections, possibly a switch or a module for controlling electronics.

Electronic device in a rectangular shape with multiple ports and markings. An inscription shows technical details and symbols.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Analogue actor 0-10VDC

Analogue actor 0-10V
868 MHz

Technical specifications

Power supply: 230 VAC, 50 Hz
Connections: Screw terminals, max. 1.5 mm²
Range in building: Typical 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!) Operating temperature -5 to +45 °C.

Product type: Actuator

Series: Eaton xComfort

Dim: (W x H x D) 34 x 150 x 28 mm

: IP20

Power supply (LOV): mains-powered

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Recess-mount

Factory colour: Grey

Width: 34 mm

Height: 150 mm

Depth: 28 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Other

: Base module

: 1

: FALSE

: TRUE

: FALSE

: TRUE

: 2

: xComfort

: FALSE

: 0-10 V

: IP20

: TRUE

: 20-20 mA

: FALSE

: 0 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2142560 CAAE-01/01 Eaton xComfort Actuator Grey

User & Safety Instructions

User & Safety Instructions 2142560 CAAE-01/01 Eaton xComfort Actuator Grey

Description

The analog actuator receives a relay switches, and provides an output voltage 0 - 10 VDC for devices such as mixers, heating, ventilation, dimmers, etc. are available. The supply is done via the network. The device will be installed in the installation socket, between ceiling or directly into the devices to be controlled.

This text is machine translated.
