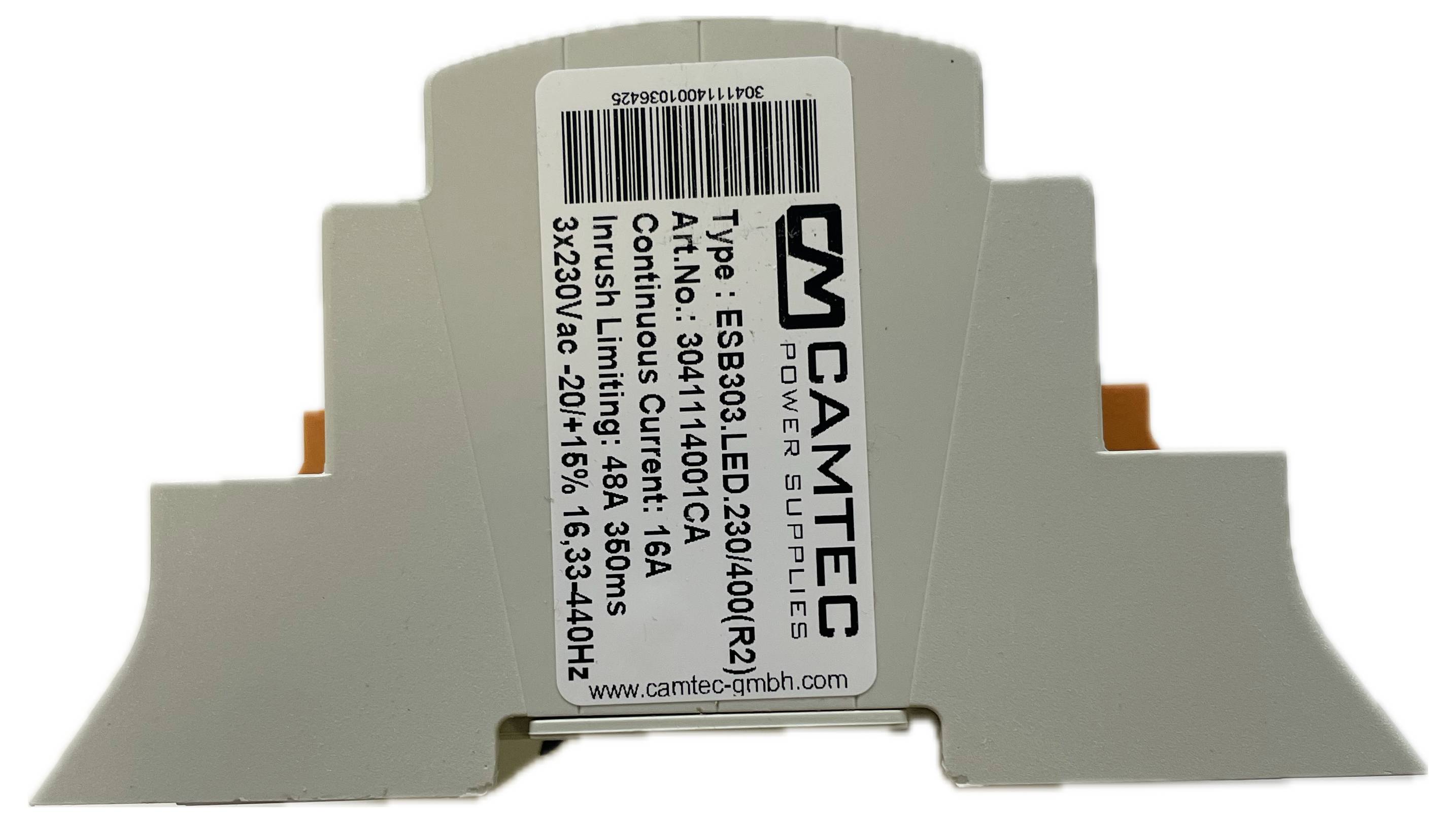

Camtec ESB 303 Switch-on current limiter ESB 303
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Highlights & Details
Switch-on current limiter ESB 303
- Peak/RMS current limiter
- 3x200-240Vac or 400Vac
- DIN TS35mm DIN rail

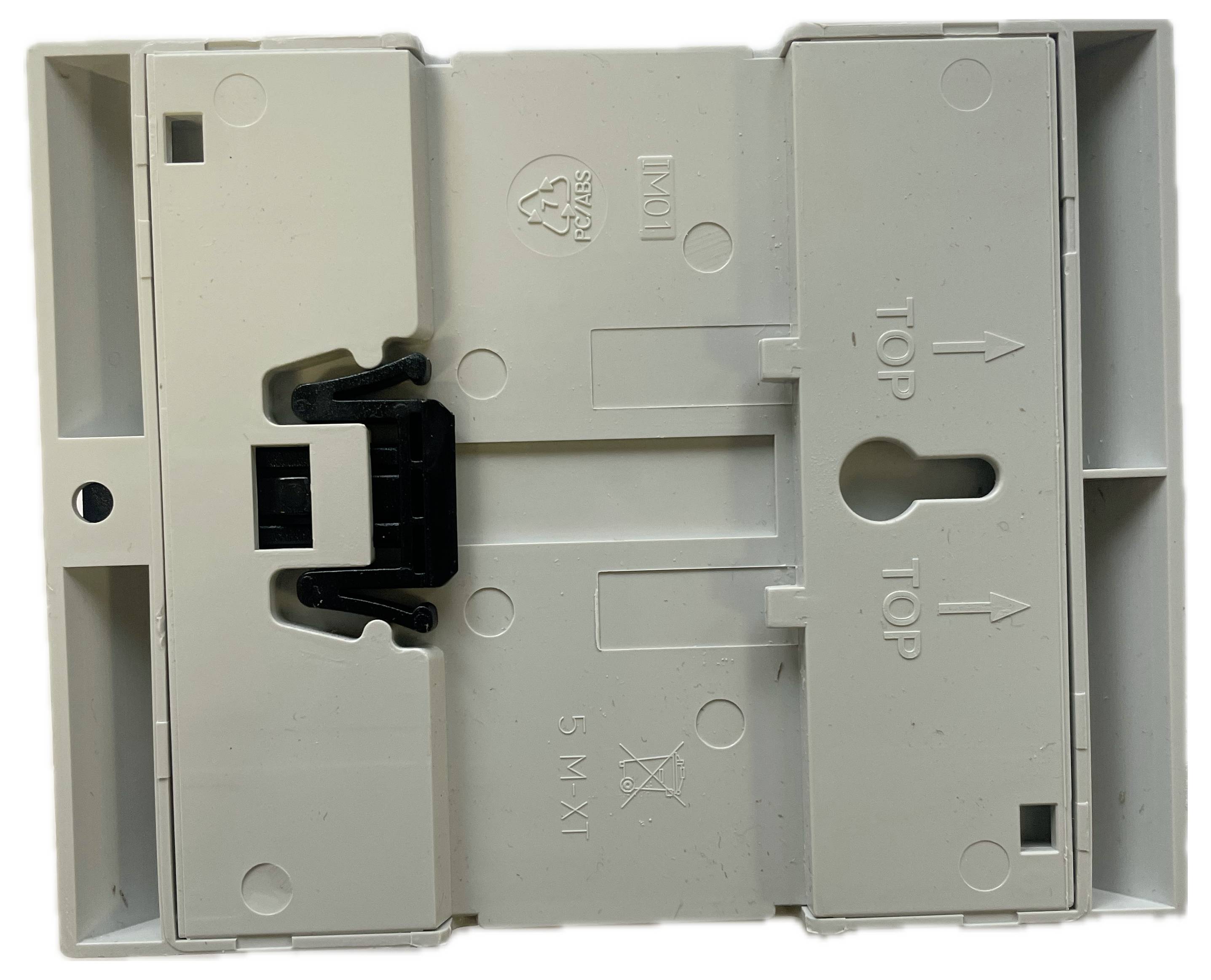

- Wall bracket (universal enclosure)
- Spring terminals 0.5-6mm² / 21-10AWG
- Integrated bypass relay
- Capacitive load 6,000uF per phase conductor
- Integrated excess temperature protection
- IP20 UL94V-0-casing DIN43880 for DIN/VDE0603-cut box
Technical specifications
- Peak current limitation: 48A for tone=350ms
- Effective value limitation: 33.9A for tone=350ms
- Nominal voltage 1-3Ph 200...240Vac+N / 2-3Ph 400Vac+N.
- Line frequency: 16 1/3... 440Hz
- AC continuous current: 3x 16A
- Load capacity: 3x 6000uF
- Temperature monitoring
- Fire Protection
- Temperature independant, repeatable ±5%
- Capacitive loads
- Bypass circuit
- Product type
Inrush current limiter
- Dim
(W x H x D) 97.8 x 110 x 62 mm
- Weight
300 g
- Width
97.8 mm
- Height
110 mm
- Depth
62 mm
Documents & Downloads
Datasheet
Datasheet 2239889 Camtec ESB 303 Switch-on current limiter ESB 303
User & Safety Instructions
User & Safety Instructions 2239889 Camtec ESB 303 Switch-on current limiter ESB 303
Information
Information 2239889 Camtec ESB 303 Switch-on current limiter ESB 303
Description
The ESB303 is a low-cost switch-on peak current limiter for high loads in LED applications, complex automation systems and in mechanical engineering. The ESB303 offers an effective and trouble-free operation with capacitive loads. It is easy to integrate into existing systems. The ESB303 is self-powered and requires no external power supply.
