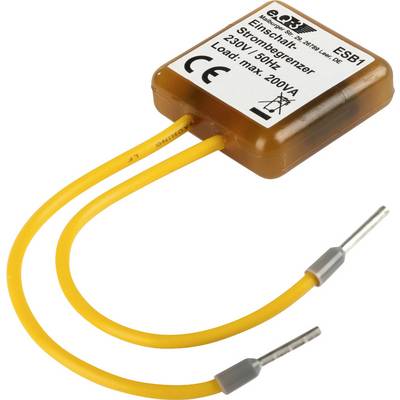

eQ-3 130366 Switch-on current limiter ESB1 Orange IP20
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Switch-on current limiter ESB1
Highlights & Details
- Reduces potentially occurring high inrush currents via an integrated NTC resistor, e.g. when using modern LED bulbs
- Effective protection against premature wear of the relay contacts of
- Switching actuators through high inrush currents;
- This text is machine translated.
Technical specifications
- Product type
Built-in inrush current limiter
- Max. nominal current
90 A
- Input voltage
230 V AC
200 W
- Factory colour
Orange
- Dim
(W x H x D) 30 x 10 x 30 mm
- Weight
15 g
- Width
30 mm
- Height
10 mm
- Depth
30 mm
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2266476 eQ-3 130366 Switch-on current limiter ESB1 Orange IP20
User & Safety Instructions
User & Safety Instructions 2266476 eQ-3 130366 Switch-on current limiter ESB1 Orange IP20
Description
Features
- The service life of a conventional bulb can be extended several times and at the same time the switching relay of an actuator is protected
- Thanks to its compact design flexible mounting in a flush-mounted socket possible
- Supply voltage
- 230 V/50 Hz; Peak switch-on current 90 A/1 ms; Load max. 200 VA
Scope of delivery
- Switch-on current limiter ESB1
- User manual.
Hints
Installation only in switch boxes (device boxes) according to DIN 49073-1 or connection boxes (surface boxes) according to DIN 60670-1
System requirements
- Installation only in switch boxes (device boxes) according to DIN 49073-1 or connection boxes (surface boxes) according to DIN 60670-1
