Name: CDAU-01/04-E Eaton xComfort Dimmer actuator
Brand: Eaton
SKU: 2142532
Availability: BackOrder

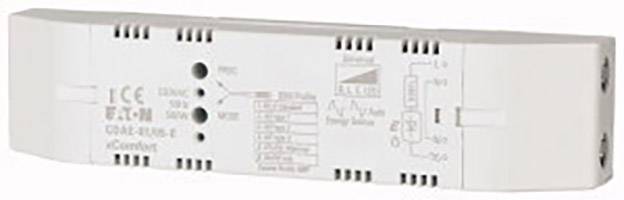

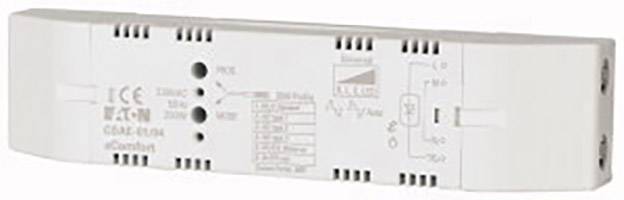

Electronic device with cables designed for 230VAC, 50Hz, 250W. Labelled with 'EATON', it has switches for 'PROG' and 'MODE'.

An electrical switch receiver with a white casing and labelled symbols, surrounded by blue, black and violet wires.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 135.00

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Smart dimming + EMS

Universal
Energy measurement sensor

Technical specifications

Power supply: 230 VAC +10% -15%, 50 Hz
Connections: Single wire 1.5 mm² all connections; load 0 - 250 W (0-250 VA)
Range in the building: Typically 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Function assignments: 32
routing routes: 32
Operating temperature: -5 to +55 °C
Minimum distance for multiple arrangement: 35 mm
Housing color: Gray, RAL7035
Length connecting wires: 150 mm

Product type: Dimmer actuator

Series: Eaton xComfort

Dim: (W x H x D) 45.5 x 49.5 x 18 mm

: IP20

Power supply (LOV): mains-powered

: 250 W

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Flush mount

Width: 45.5 mm

Height: 49.5 mm

Depth: 18 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Flush mounted (plaster)

: Dimming actuator

: 1

: 50-50 MHz

: FALSE

: TRUE

: FALSE

: FALSE

: Universal and LED Retrofit

: 0 mA

: 230-230 V

: 3

: xComfort

: FALSE

: FALSE

: FALSE

: FALSE

: 0-250 W

: IP20

: TRUE

: FALSE

: FALSE

: TRUE

: FALSE

: 18

: 100 W

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2142532 CDAU-01/04-E Eaton xComfort Dimmer actuator

User & Safety Instructions

User & Safety Instructions 2142532 CDAU-01/04-E Eaton xComfort Dimmer actuator

Description

Dimming actuator in small size 0 - 250 W/230 VAC with energy measurement. Suitable for dimming of different loads including dimmable and not dimmable LEDs (on/off). Even the smallest LED lights dim loads from 0 W! Simple selection or definition of a DIMM profile for an optimum Dimming power. Energy-efficient. Compact design for installation behind the switches, buttons, motion sensors, wall sockets or distribution boxes.
