CellPack 472575 EASYCELL/COMPACT/1C-V Gel connector sleeve Cable Ø range: 4.5 - 6.5 mm Content: 1 Set
EAN:
Part number:
Item no:
Product type
Gel connector sleeve
Cable Ø (max.)
6.5 mm
Min. cross section
0.5 mm²
max. cross section
1.5 mm²
Content
1 Set
Datasheet (PDF)
Number
Total (€ 13.99 / piece)
€ 13.99
incl. VAT
14-day return policy included
Highlights & Details

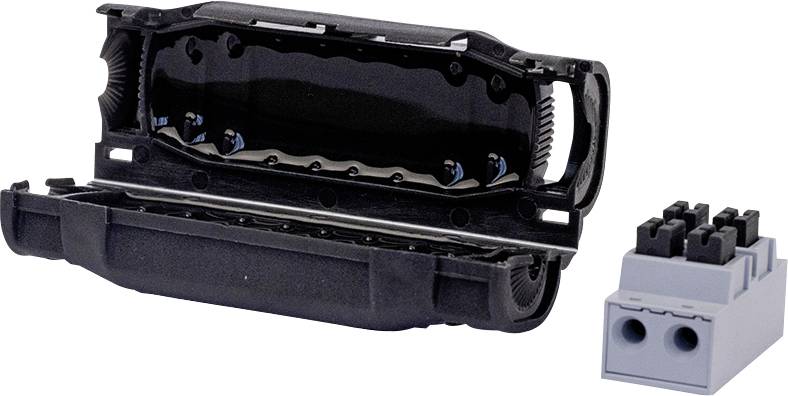

Gel connection sleeve with connector block
- Connection area is completely sealed by gel
- Easily accessible and ready to use
- New snap closing system (IP68), no cable ties required
- Flame-retardant, UV-resistant and impact-resistant plastic molded shell
- Fast, simple and safe mounting
- This text is machine translated.
Technical specifications
- Product type
Gel connector sleeve
- Cable Ø (max.)
6.5 mm
- Min. cross section
0.5 mm²
- max. cross section
1.5 mm²
- Content
1 Set
- Manufacturer part #
472575
- Dim
(L x W) 68 mm x 24 mm
- Factory colour
Black
- Cable Ø up to
4.5 mm
- Cable Ø range
4.5 - 6.5 mm
- Width
24 mm
- Length
68 mm
- Max. temperature
90 °C
- Min. temperature
-10 °C
- Type
EASYCELL/COMPACT/1C-V
Documents & Downloads
Datasheet
Datasheet 3837215 CellPack 472575 EASYCELL/COMPACT/1C-V Gel connector sleeve Cable Ø range: 4.5 - 6.5 mm Content: 1 Set
User & Safety Instructions
User & Safety Instructions 3837215 CellPack 472575 EASYCELL/COMPACT/1C-V Gel connector sleeve Cable Ø range: 4.5 - 6.5 mm Content: 1 Set
