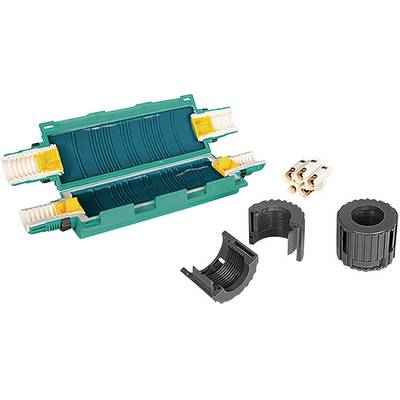

Relicon by HellermannTyton 435-01661 Reliseal V510PP/SIR Cable sleeve Cable Ø range: 14 - 21 mm Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable sleeve
Cable Ø (max.)
21 mm
Min. cross section
10 mm²
max. cross section
21 mm
Content
1 pc(s)
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Highlights & Details
Gel-Verbindungsmuffe Reliseal V510
- Identification-free gel
- UV-resistant
- Weather-resistant
- Unlimited storage capacity
Our service for you
Technical specifications
- Product type
Cable sleeve
- Cable Ø (max.)
21 mm
- Min. cross section
10 mm²
- max. cross section
21 mm
- Content
1 pc(s)
- Manufacturer part #
435-01661
- Dim
(L x W) 235 mm x 69 mm
- Factory colour
Green
- Cable Ø up to
14 mm
- Cable Ø range
14 - 21 mm
- Width
69 mm
- Length
235 mm
- RoHS-compliant
Yes
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Type
Reliseal V510PP/SIR
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1518964 Relicon by HellermannTyton 435-01661 Reliseal V510PP/SIR Cable sleeve Cable Ø range: 14 - 21 mm Content: 1 pc(s)
Information
Information 1518964 Relicon by HellermannTyton 435-01661 Reliseal V510PP/SIR Cable sleeve Cable Ø range: 14 - 21 mm Content: 1 pc(s)
Description
The Geltechnologie of RELICON offers particular advantages. It is simple and fast
To install. The form shells have a
Strain relief and are made of a shock-resistant Flame-resistant PP. Reliseal V56 is a universal connection sleeve and can depends on the terminal type for connections of plastic cables and wires made of PVC, PE, EPR and VPE (e.g. N(A)YY, NYM, H05) can be used. The RELICON gel in the tray, takes over the insulation and sealing of the connection.
This text is machine translated.
To install. The form shells have a
Strain relief and are made of a shock-resistant Flame-resistant PP. Reliseal V56 is a universal connection sleeve and can depends on the terminal type for connections of plastic cables and wires made of PVC, PE, EPR and VPE (e.g. N(A)YY, NYM, H05) can be used. The RELICON gel in the tray, takes over the insulation and sealing of the connection.
This text is machine translated.
Scope of delivery
- RELICON gel cup filled with gel
- Screw system for the strain relief
- Adapter seals for different cable diameters
- Connector block 3 x 4 mm² - 5 x 10 mm²
- Allen key for connector
