Name: CJAU-01/02 Eaton xComfort Blinds actuator Switching capacity (max.) 1380 W
Brand: Eaton
SKU: 2142559
Availability: InStock

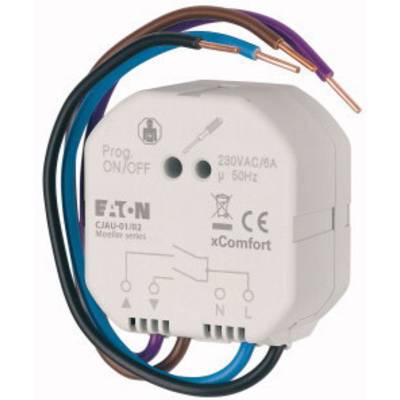

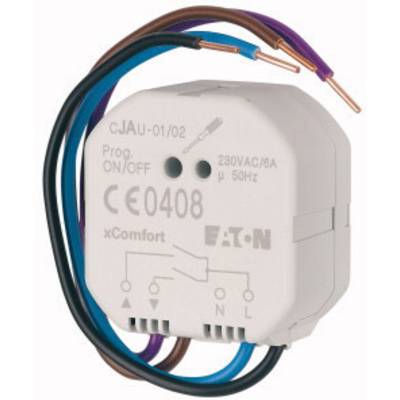

A white xComfort EATON module with multiple cables. Label shows '230VAC/6A', suitable for electronic installations.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 30 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Window blind actuator

Integrated limit switches
2 Security Features
868 MHz

Technical specifications

Power supply: 230 VAC, 50 Hz
Connection wires: Single wire 1.5 mm²
Range in building: Typical 30 -50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Operating temperature: -5 to +45 °C
Housing color: Gray, RAL7035
Length connecting wires: 150 mm

Product type: Blinds actuator

Series: Eaton xComfort

Dim: (W x H x D) 45.3 x 48.6 x 26.2 mm

Max. switching capacity: 1380 W

: IP20

Power supply (LOV): mains-powered

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Flush mount

Width: 45.3 mm

Height: 48.6 mm

Depth: 26.2 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Flush mounted (plaster)

: AC

: 0

: 0.6 W

: FALSE

: TRUE

: FALSE

: 1380 W

: TRUE

: 1

: 6 A

: 3

: xComfort

: FALSE

: TRUE

: FALSE

: IP20

: FALSE

: FALSE

: TRUE

: TRUE

: 26 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2142559 CJAU-01/02 Eaton xComfort Blinds actuator Switching capacity (max.) 1380 W

User & Safety Instructions

User & Safety Instructions 2142559 CJAU-01/02 Eaton xComfort Blinds actuator Switching capacity (max.) 1380 W

Description

The blind actuator receives and manages the blinds and shutters drives with 230V motors with integrated limit switches. In this blind actuator are also 2 safety functions (e.g. Safety position in wind and/or rain, retractable perr protection - if the terassentur is open, this may Rollade/Shutter/blind not close). Note: Several shading engines must not cut-off relay on a blind actuator can be connected in parallel. The supply is done via the network. The device is installed in the switch or junction boxes. When used with inductive loads (e.g. Fluorescent lamps), it is essential protective circuit!
