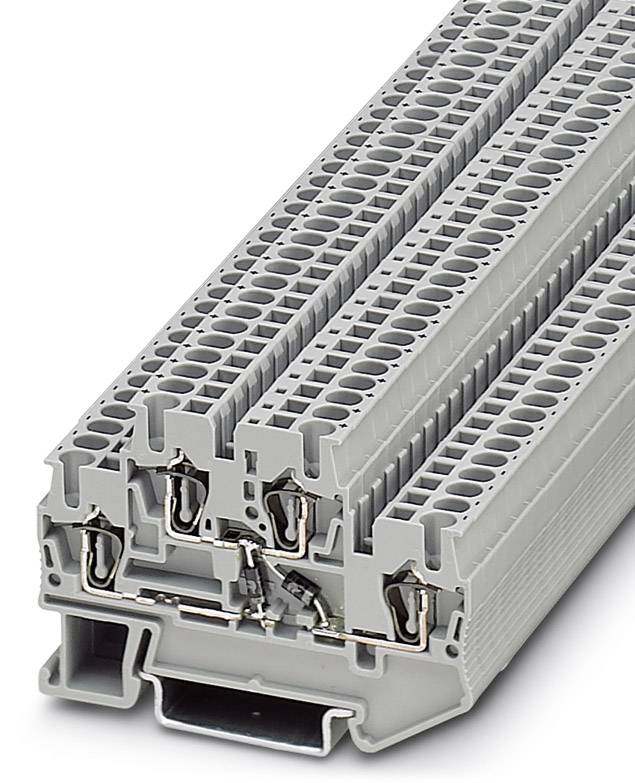

Image similar
Component terminal block STTB 2,5-2DIO/O-UL/O-UR 3031597 Phoenix Contact
Packaging type
Piece
Product type
Serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Component terminal block STTB 2,5-2DIO/O-UL/O-UR
- STTB 2,5-2DIO/O-UL/O-UR
Technical specifications
- Packaging type
Piece
- Product type
Serial terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
22 A
- Nominal current - rounded value
22 A
- Nominal voltage
250 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3031597
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
STTB 2,5-2DIO/O-UL/O-UR
- Dim
(L x W x H) 67.5 x 5.2 x 47.5 mm
- Width
5.2 mm
- Height
47.5 mm
- Length
67.5 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565370 Component terminal block STTB 2,5-2DIO/O-UL/O-UR 3031597 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565370 Component terminal block STTB 2,5-2DIO/O-UL/O-UR 3031597 Phoenix Contact
Description
Component terminal block, Connection type: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Nominal current: 22 A, Nominal voltage: 250 V, Length: 67.5 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15
