Component terminal block STTB 2,5-2DIO/UL-O/UL-UR 3035263 Phoenix Contact

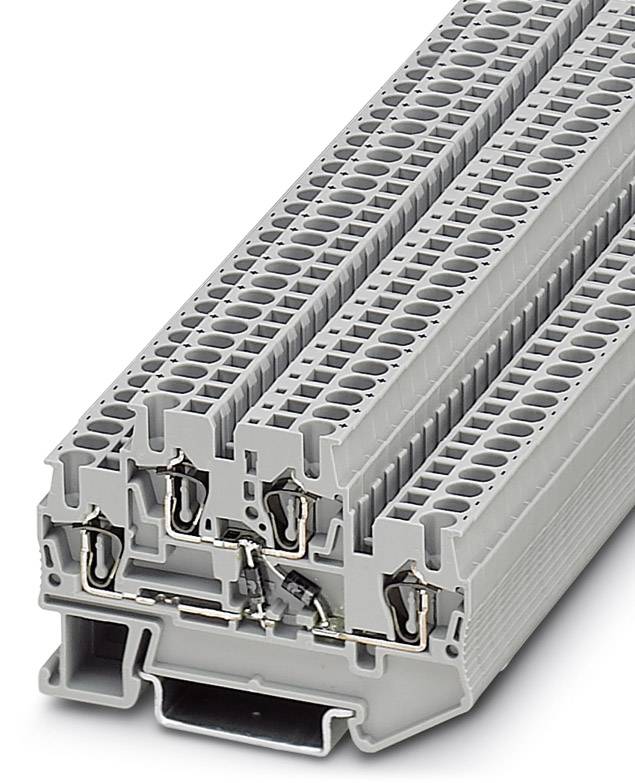

A grey electrical terminal block with multiple slots for cable connections, viewed from the side with metal components.
Image similar
Packaging type
Piece
Product type
Serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 8.30 / piece)
€ 415.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Serial terminal

Connection

Pull spring

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5.2 mm

No. of rows

2

Number of pins

4

Factory colour

Grey

Nominal current

22 A

Nominal current - rounded value

22 A

Nominal voltage

250 V

Stripping length (max.)

10 mm

Manufacturer part #

3035263

Content

50 pc(s)

Industrial packaging

Yes

Type

STTB 2,5-2DIO/UL-O/UL-UR

Dim

(L x W x H) 67.5 x 5.2 x 47.5 mm

Width

5.2 mm

Height

47.5 mm

Length

67.5 mm

Flammability rating

V0

Connector colour

Grey

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 566152 Component terminal block STTB 2,5-2DIO/UL-O/UL-UR 3035263 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566152 Component terminal block STTB 2,5-2DIO/UL-O/UL-UR 3035263 Phoenix Contact

Description

Component terminal block, Connection type: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Nominal current: 22 A, Nominal voltage: 250 V, Length: 67.5 mm, Width: 5.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15

Hints

Special order, no right of withdrawal.
