Name: Contrik 1027454 1-piece Socket splitter Black
Brand: Contrik
SKU: 3190079
Availability: InStock

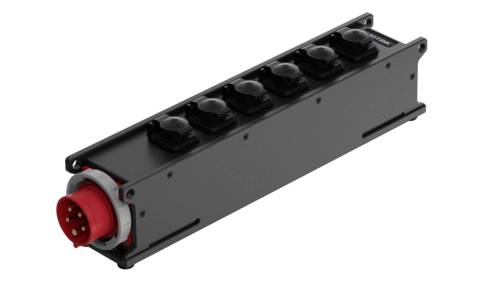

Black power strip with six earthed socket outlets, with a red plug with five contact pins on the left.

Black rectangular electronic box with six round connectors on top. A red connector is visible on the left.

A black, rectangular distribution box with six slots and a red connection at the end.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

Only 3 Piece(s) available

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Power Box 3 IP65

IN:CEE 16A
OUT: 6x Powercon True1

Technical specifications

Input device 1 x CEE16-5
Output device: 6 x powerCON® TRUE1® TOP
Breakdown voltage: 0.5 kV/mm
Number of electrical contacts 4 + PE
Phases: Multi-phase (3+N+PE)
Standard compatibility: According to UL94 V2
Temperature range --25°C to +40°C.
Conductor cross-section: 2.5 mm²
Casing: Easylen

Product type: Socket splitter

Nominal voltage (details): 400 V AC

Nominal current (details): 16 A

: IP65
Protection class II

Factory colour: Black

Weight: 2.1 kg

Dim: (L x W x H) 92 x 489.60 x 117.20 mm

Length: 92 mm

Width: 489.60 mm

Height: 117.20 mm

Documents & Downloads

Datasheet

Datasheet 3190079 Contrik 1027454 1-piece Socket splitter Black

User & Safety Instructions

User & Safety Instructions 3190079 Contrik 1027454 1-piece Socket splitter Black

Description

Power strip Xtreme outdoor (XO) is a compact distribution solution for mobile outdoor applications. The robust EASYLEN® housing is Ideal suitable for outdoor use and demanding applications under harsh conditions. 1x CEE16A in and up to 6x powerCON® TRUE1® TOP Out.

This text is machine translated.

Features

Extremely robust and safe EASYLEN® casing with leather grain
CEE16A In & Daisy Chaining power sockets and highly reliable Neutrik® powerCON® TRUE1® TOP Out
Flame resistant (UL94-V2) and non-conductive casing material
High outdoor protection (IP65)
Low weight, compact and stackable housing design
Versatile mounting options

Description

Features

Extremely robust and safe EASYLEN® casing with leather grain
CEE16A In & Daisy Chaining power sockets and highly reliable Neutrik® powerCON® TRUE1® TOP Out
Flame resistant (UL94-V2) and non-conductive casing material
High outdoor protection (IP65)
Low weight, compact and stackable housing design
Versatile mounting options
