Name: Contrik 1028228 1-piece Socket splitter Black
Brand: Contrik
SKU: 3190067
Availability: SoldOut

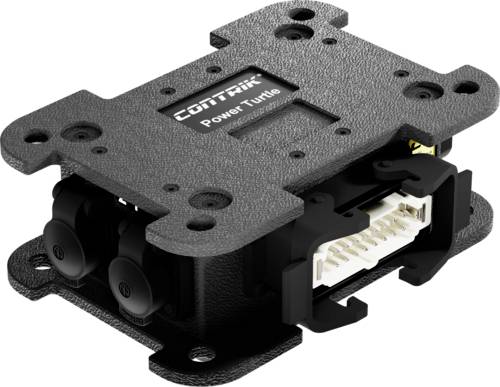

A black electronic device with the inscription 'Comtrik Power Turtle'. It has multiple connection points and a robust casing.

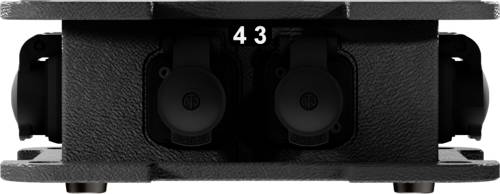

Black four-way socket with covers, numbered '43', placed on a textured surface.

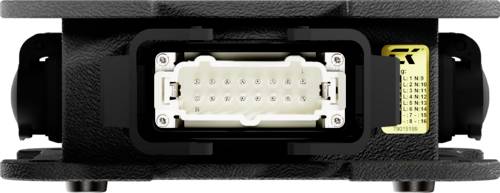

'View of a robust electrical connector with multiple pins in a black housing.'

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.04 / piece)

€ 0.04

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Power distribution turtle

IN:1 x Harting E16
OUT: 6x Powercon True1

Technical specifications

1x Harting E 16 (6 channels) [1-9] input
Output: 6x powerCON® TRUE1® TOP with self-closing caps
Daisy-Chaining: PowerCON® TRUE1® TOP with self-closing caps
Di-electric strength: > 0.5 kV/mm
Number of electrical contacts 2 + PE
Phases: Single phase
Wire cross-section: 2.08mm²
Attachment options: Cross-beam clamp (M10), fixing holes for unplugging or hanging
Stackable design
Casing: Easylen
Flammability according to UL 94 V-2
Temperature range -25°C to +40°C.

Product type: Socket splitter

Nominal voltage (details): 250 V AC

Nominal current (details): 16 A

: IP65
Protection class II

Factory colour: Black

Weight: 1.3 kg

Dim: (L x W x H) 173 x 225 x 87 mm

Length: 173 mm

Width: 225 mm

Height: 87 mm

Documents & Downloads

Datasheet

Datasheet 3190067 Contrik 1028228 1-piece Socket splitter Black

User & Safety Instructions

User & Safety Instructions 3190067 Contrik 1028228 1-piece Socket splitter Black

Description

Power Turtle Multicore are extremely robust, compact distribution boxes, which enable a significant reduction of the cable volume, the effort and the costs through the multi-core input. They are Ideal suitable for outdoor use and demanding mobile applications. 1x Harting E16 In - 6x powerCON® TRUE1® TOP Out.

This text is machine translated.

Features

Reduction of the cable expenditure by Harting E16 multi-pin connector
High durability & protection: Robust Easylen® housing with Hohem IK, IP65 with Harting E16 when plugged in, self-closing caps, side plug arrangement, flame resistant & non-conductive housing material
Very compact Design: Flat Design, side plug arrangement, applications with limited space
Simple transport & handling: Stackable with other Power turtles, light, fully lockable
Various fixing options: Herrings, suspension, traverse clamps
