Counttec BG 1042302 Electricity meter (3-phase) Analogue 5 A MID-approved: Yes 1 pc(s)

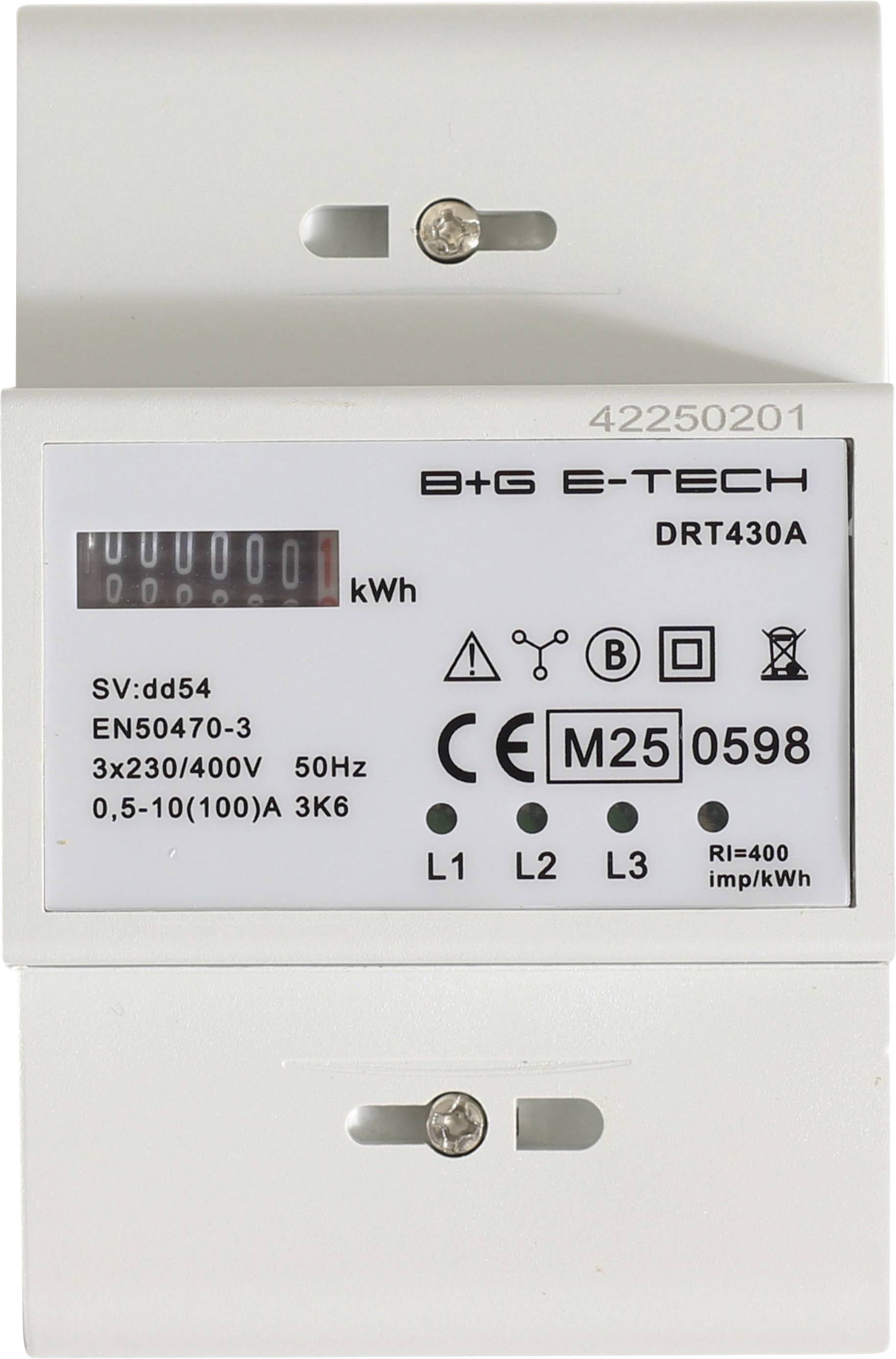

Close-up of a B+G E-Tech electric meter showing a kWh readout and three-phase indicators, with model DRT430A and serial number 42250201.
Product type
Electricity meter (3-phase)
Current load
5 A
Display
Analogue
Counter type
35 mm DIN rail
Operating voltage
400 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 129.99 / piece)
€ 129.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Rotary current meter, top hat rail 10(100)A, roller counter, MID calibrated

  • Roller counter, 4TE, MID calibrated

Technical specifications

  • Connection type/connection type: Direct
  • Meter constant / pulse rate: 1000 imp/kWh
  • Pulse output: S0; 1000 imp/kWh
  • Operating temperature: -25 °C to + +55 °C.
  • Storage temperature -30 °C to +70 °C
Counter type

35 mm DIN rail

Product type

Electricity meter (3-phase)

Current load

5 A

Display

Analogue

Operating voltage

400 V AC

Starting current

0.25 A

Frequency

50 Hz

Accuracy class

Class B

MID-approved

Yes

Reading type

Active energy

Nominal voltage range

161 up to 500 V AC

Mains voltage (max.)

500 V AC

Mains voltage (min.)

161 V AC

Current (max.)

80 A

Current range

80 A (max)

Type

BG

IP51

Protection class

II

Documents & Downloads

Datasheet

Datasheet 3841512 Counttec BG 1042302 Electricity meter (3-phase) Analogue 5 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3841512 Counttec BG 1042302 Electricity meter (3-phase) Analogue 5 A MID-approved: Yes 1 pc(s)

Description

The three-phase meter for the top hat rail with roller counter is 4TE wide and has 10(100)A and is MID calibrated.
