Counttec EC332C EC332C Portable electricity meter Digital 32 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Portable electricity meter
Current load
32 A
Display
Digital
Calibration
Calibrated
Operating voltage
3 x 230/400 V AC
Datasheet (PDF)
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Three-phase meter with CEE plug and coupling
- Mobile intermediate counter in three-phase design for fast energy measurementFlexible, position-independantapplicable , robust castPrecise measurement , MID calibrated three-phase meter, IP 54
Technical specifications
- Voltage input 3x 230/400VInsulation resistance: 2kV for 1 minuteInterference voltage pulse: 4kV 1.2 µs waveformTemperature range 20 - +50 50°CABS casingAccuracy class 1IP 54 rated enclosure
- Product type
Portable electricity meter
- Current load
32 A
- Display
Digital
- Calibration
Calibrated
- Operating voltage
3 x 230/400 V AC
- Factory colour
White
- Self-consumption
0.5 W
- Frequency
50 Hz
- Accuracy class
1
- MID-approved
Yes
- Reading type
Energy consumption
- Nominal voltage range
230 up to 400 V AC
- Mains voltage (max.)
400 V AC
- Mains voltage (min.)
230 V AC
- Current (max.)
32 A
- Current range
32 A (max)
- Type
EC332C
Documents & Downloads
Datasheet
Datasheet 2543014 Counttec EC332C EC332C Portable electricity meter Digital 32 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2543014 Counttec EC332C EC332C Portable electricity meter Digital 32 A MID-approved: Yes 1 pc(s)
Description

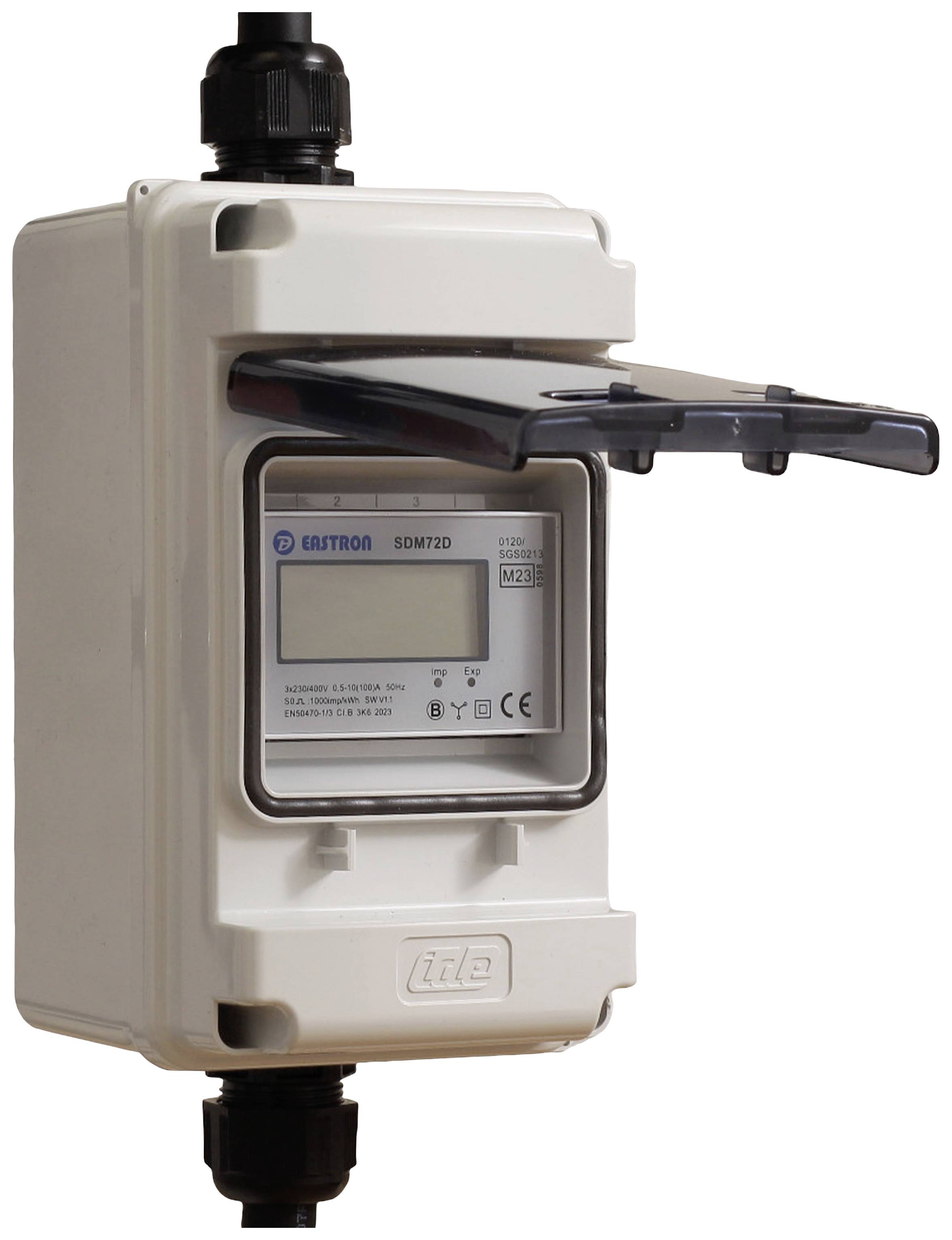

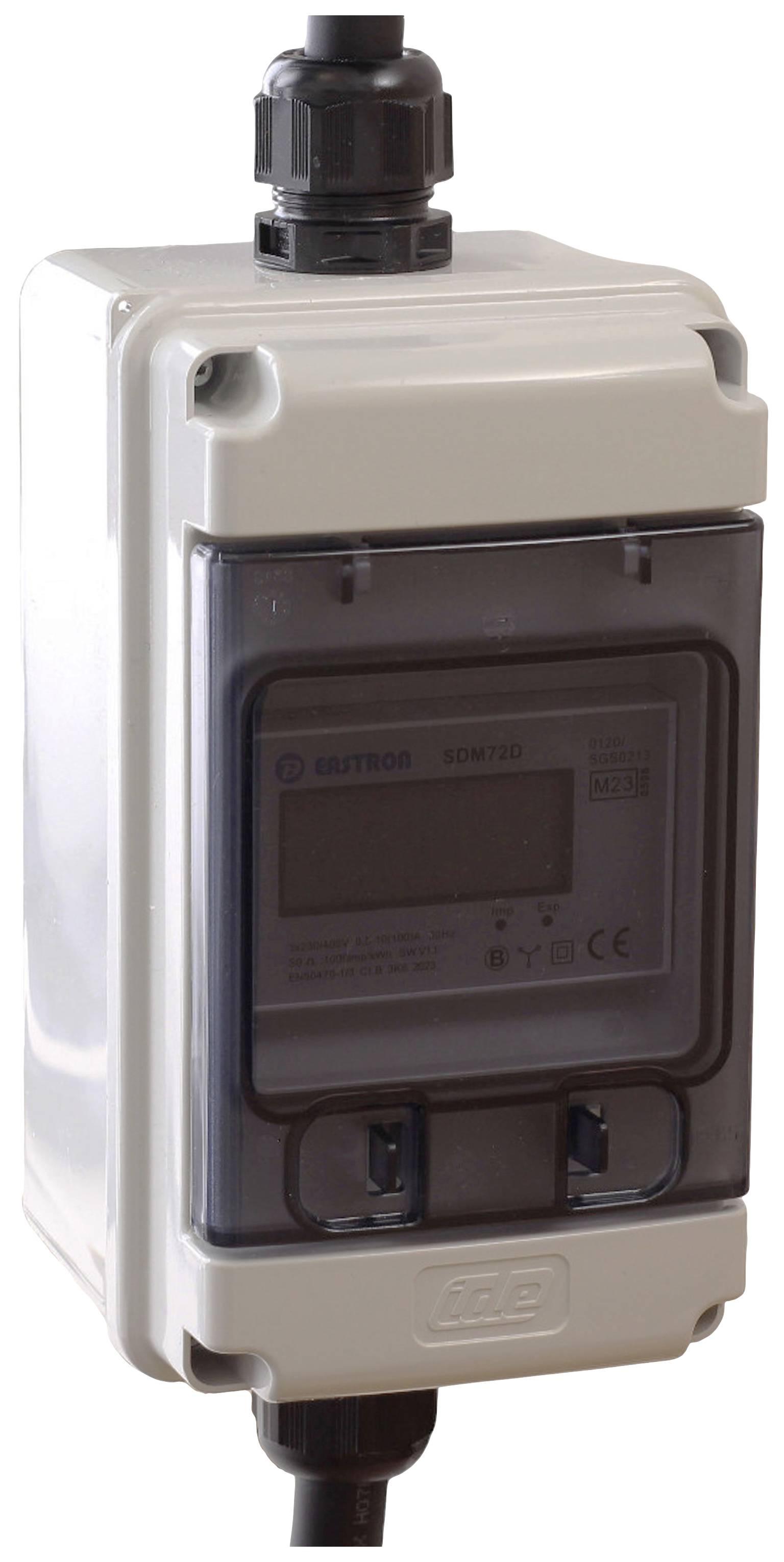

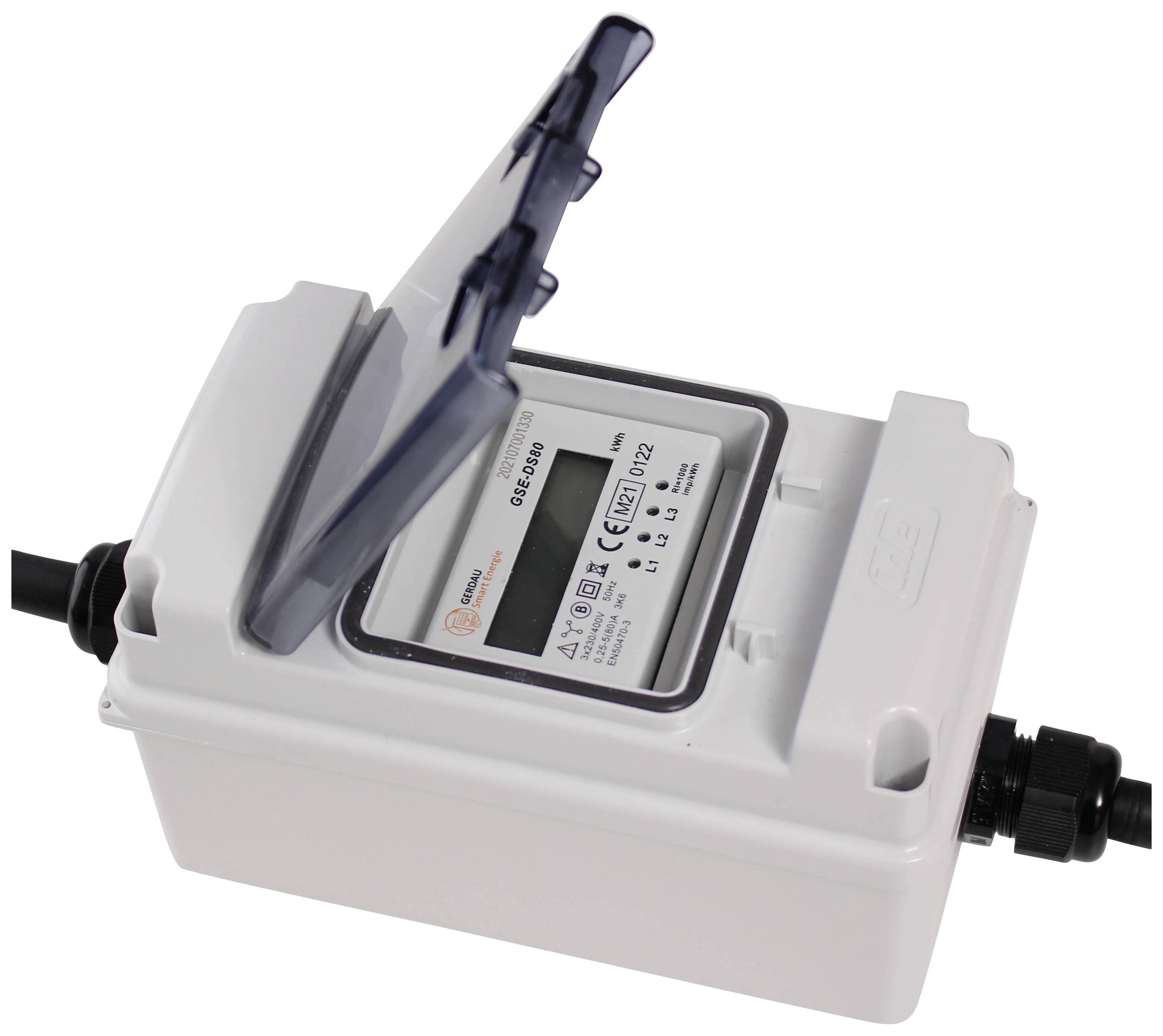

The EasyCount 3 is an energy meter integrated in a sealed, impact-resistant housing.
It is shock-resistant and protected against moisture. The cable ends are provided with connectors and Clutches.
The built in -phase meter is with MID approval and is suitable for balancing purposes.
In three-phase design for fast energy measurement.
Flexible and position-independent use, robust and molded casing, precise measurement, feed and lead approx. 60 cm cable length, plug and coupling of the brand MENNEKES.
This product is manufactured in Germany.
This text is machine translated.
It is shock-resistant and protected against moisture. The cable ends are provided with connectors and Clutches.
The built in -phase meter is with MID approval and is suitable for balancing purposes.
In three-phase design for fast energy measurement.
Flexible and position-independent use, robust and molded casing, precise measurement, feed and lead approx. 60 cm cable length, plug and coupling of the brand MENNEKES.
This product is manufactured in Germany.
This text is machine translated.
Features
- 32A
- IP54
- CEE plug and coupling
- MID calibrated for charging
