Counttec Q3MA1060 Q3MA1060 Electricity meter (3-phase) Digital 5 A 1 pc(s)

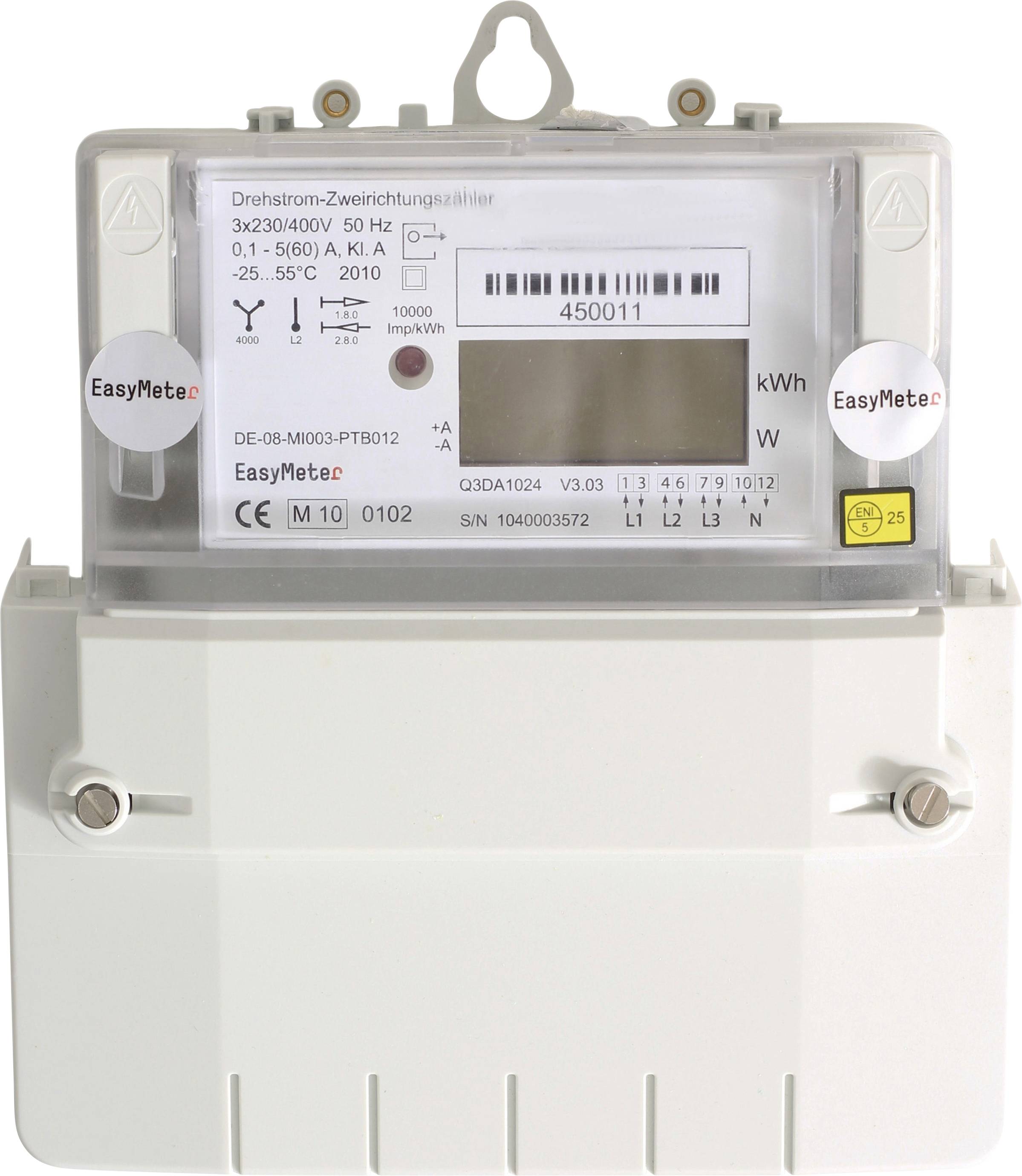

Digital electricity meter with LCD display and barcode label, showing EasyMeter branding and a white plastic enclosure.

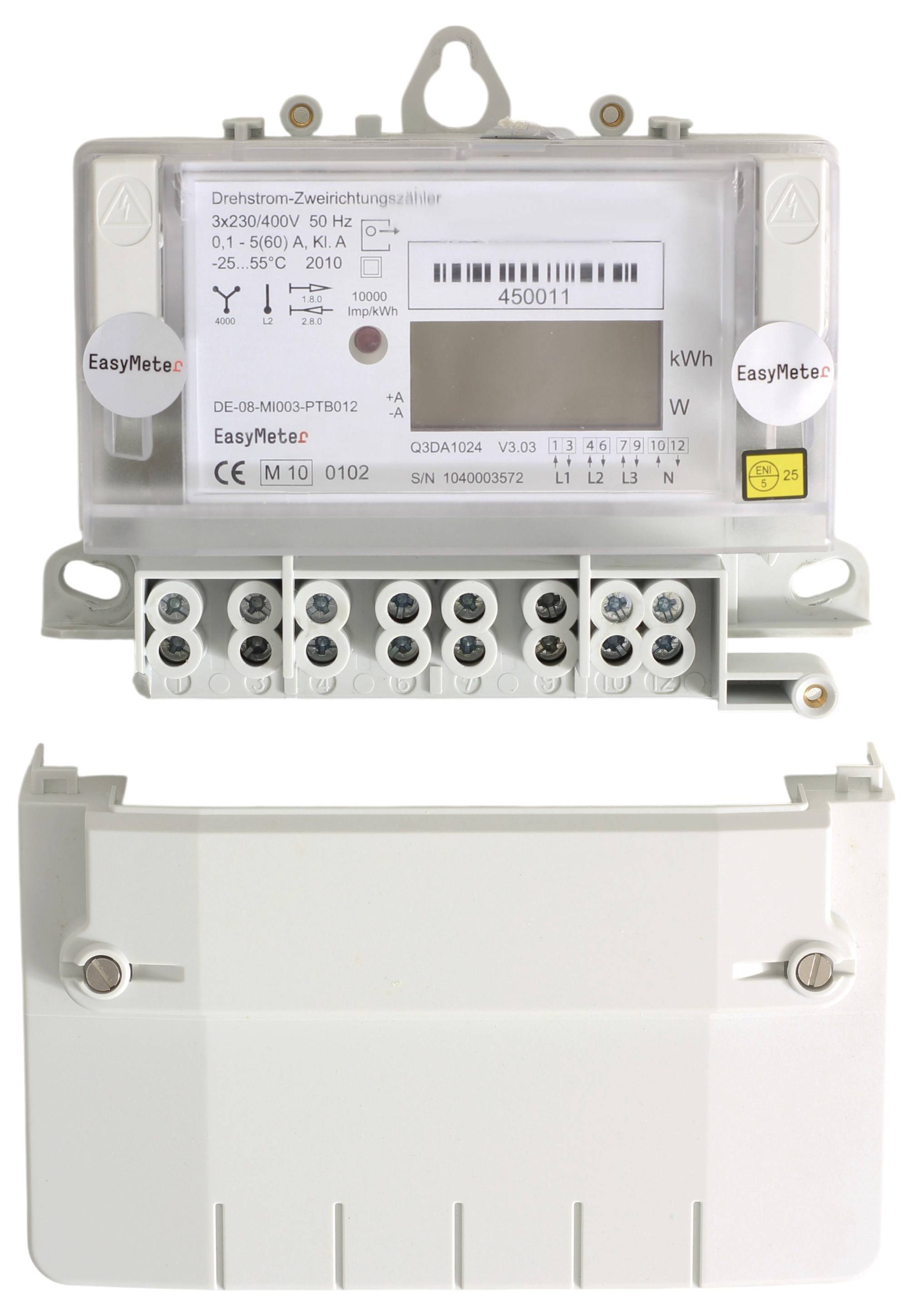

Electricity meter with a removable white cover, showing terminal connectors and a display panel labeled 'kWh'.
1/2
Product type
Electricity meter (3-phase)
Current load
5 A
Display
Digital
Counter type
DIN-Counter mounting
Operating voltage
400 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 134.99 / piece)
€ 134.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

AC meter Easymeter counter 5(60)A

  • Replacement for the Ferraris counter, meter matrix mounting, delivery/reference, officially newly certified by the German main test center, upper IR-interface is full data set in SML, PIN code released

Technical specifications

  • Meter constant / pulse rate: 10000 imp/kWh (unit imprint)
  • Interfaces / communication: Upper IR interface
  • Temperature range: -40 to + 70 oC (printed on instrument)
Counter type

DIN-Counter mounting

Product type

Electricity meter (3-phase)

Current load

5 A

Display

Digital

Operating voltage

400 V AC

Frequency

50 Hz

Accuracy class

Class A

Reading type

Active energy

Nominal voltage range

400 up to 230 V AC

Mains voltage (max.)

230 V AC

Mains voltage (min.)

400 V AC

Current (max.)

60 A

Current range

60 A (max)

Type

Q3MA1060

Documents & Downloads

Datasheet

Datasheet 3841503 Counttec Q3MA1060 Q3MA1060 Electricity meter (3-phase) Digital 5 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3841503 Counttec Q3MA1060 Q3MA1060 Electricity meter (3-phase) Digital 5 A 1 pc(s)

Description

The Easymeter three-phase meter is regenerated and officially certified by the German main testing station. Approved for official setting. Smallest size. The two-direction counter (delivery/reference) has 5(60)A, 3x 230/400V and 50Hz. For mounting counter in accordance with DIN 43857. As a replacement for the conventional Ferrari counters. Counter level not at zero but advanced. Modern measurement system with activated PIN entry; the counter has no PIN code. The full data set in SML is present at the upper IR interface.

This text is machine translated.
