Name: CPAD-00/215 Eaton xComfort Switch set Switching capacity (max.) 2300 W Pure white
Brand: Eaton
SKU: 2142546
Availability: BackOrder

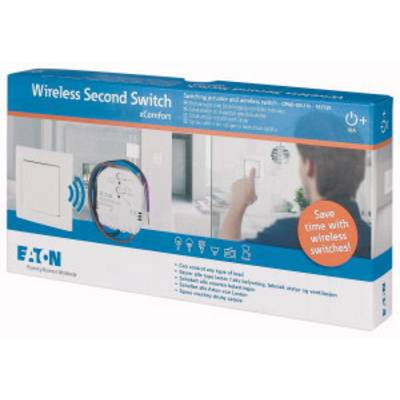

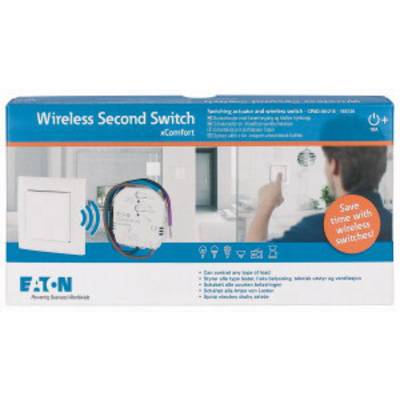

A packaging displays a wireless switch from Eaton and electronic components. A man is operating the switch on the wall.

Packaging of a wireless secondary switch with a visible switch, module, and a photo of a person operating a switch.

CPAD-00/215 Eaton xComfort Switch set Switching capacity (max.) 2300 W Pure white-2

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 149.99 / piece)

€ 149.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Wireless Second Switch, package, pre-programd

Actor with binary input and buttons.
Pre-programmed
868 MHz

Technical specifications

Power supply: 230 VAC, 50 Hz
Range in building: Typical 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Function assignments: 32
routing routes: 32
operating temperature: -5 to +55 °C
Housing color: Gray, RAL7035
Dim. Housing (H x W x D): 49.5 x 45.5 x 18 mm
Length of connecting wires: 150 mm
Support in basic mode: Local input mode button (mode 1), switch (mode 2); function mode on/off, rocker, pushbutton, step-house switch, step-house switch with switch-off warning
Power supply: 3 V via battery CR2450
Operating temperature: -5 to +45 °C
Housing color Button insert: Similar to RAL7035
Housing color key base plate: Similar to RAL7035
Dim. Push-button insert (H x W x D): 55 x 55 x 12.2 mm
Dim. Button base (H x W x D) 70 x 70 x 10 mm

Product type: Switch set

Series: Eaton xComfort

Max. switching capacity: 2300 W

: IP20

Power supply (LOV): mains-powered
battery-powered

Operating voltage: 196 V
253 V

: 2300 W

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Flush mount
Surface-mount

Factory colour: Pure white

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Flush mounted (plaster)

: 10 A

: 0.23 W

: 2300 W

: 196-253 V

: FALSE

: TRUE

: FALSE

: 2300 W

: TRUE

: 1

: 1

: 3

: 10 A

: Other

: FALSE

: TRUE

: FALSE

: TRUE

: IP20

: TRUE

: TRUE

: FALSE

: TRUE

: FALSE

: 18 mm

: 0 W

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2142546 CPAD-00/215 Eaton xComfort Switch set Switching capacity (max.) 2300 W Pure white

User & Safety Instructions

User & Safety Instructions 2142546 CPAD-00/215 Eaton xComfort Switch set Switching capacity (max.) 2300 W Pure white

Description

Pre-configured wireless switch package to a traditional switch with a second wireless switch to expand. Switches on all types of loads. Hybrid switching technology (long life). Easy installation without major construction work. Wireless Push Button, wherever you like. Compatible with universal 55 mm switching systems.

This text is machine translated.
