Crouzet SSR 84140631N 50 A Switching voltage (max.): 510 V AC Random timing 1 pc(s)
Product type
SSR
Control voltage (min.)
10 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
510 V AC
Current load (max.)
50 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 83.99 / piece)
€ 83.99
incl. VAT
14-day return policy included
Technical specifications
- Panel mounting
- Two-channel
- Product type
SSR
- Type
SSR GN2
- Switching type
Random timing
- Connection
Screw terminal
- Control voltage (min.)
10 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
10 - 30 V DC
- Switching voltage (min.)
24 V DC
- Switching voltage (max.)
510 V AC
- Current load (max.)
50 A
- Min. temperature
-40 °C
- Max. temperature
+80 °C

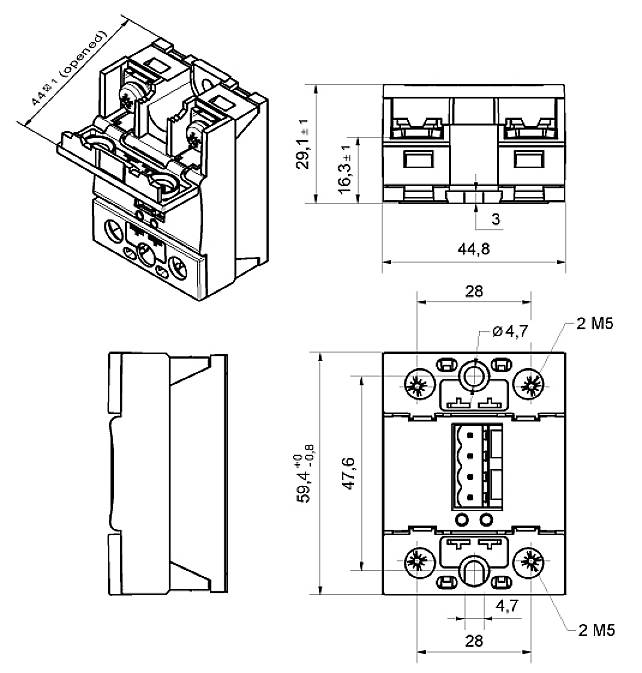

- Width
44.8 mm
- Height
29 mm
- Length
59.4 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
