Buy Crouzet SSR GN350DSRH 50 A Switching voltage (max.): 510 V AC Random timing 1 pc(s)

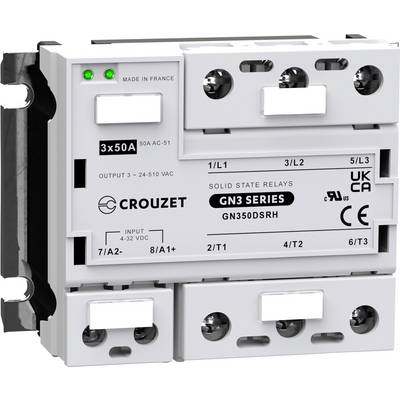

Electrical solid-state relay by Crouzet, Model GN3 Series. Front view showing technical specifications and connections.

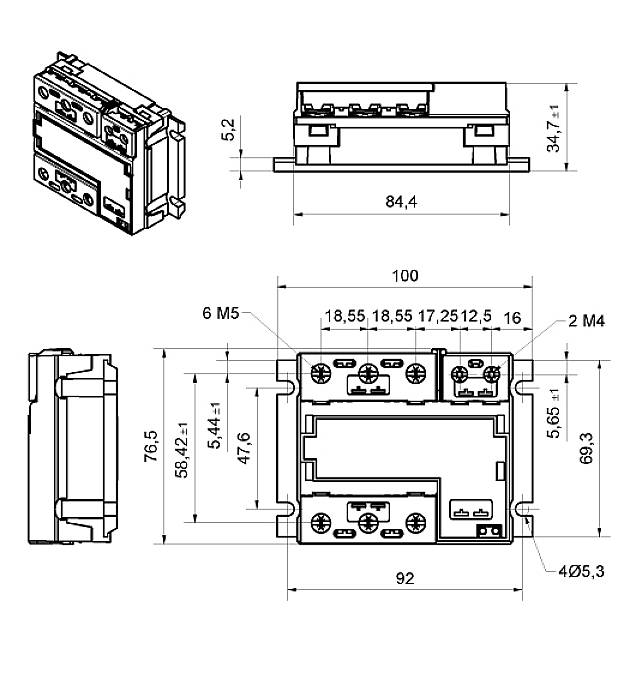

Technical drawing of an electrical component with detailed dimensions in millimetres, views showing front, side and top elevation.

1/2

Product type

SSR

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

510 V AC

Current load (max.)

50 A

Datasheet (PDF)

Fast track dispatch on Fri, 3 Jul

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Panel mounting
Three-phase

Product type: SSR

Type: SSR GN3

Switching type: Random timing

Connection: Screw terminal

Control voltage (min.): 4 V DC

Control voltage (max.): 32 V DC

Control voltage range: 4 - 32 V DC

Switching voltage (min.): 24 V DC

Switching voltage (max.): 510 V AC

Current load (max.): 50 A

Min. temperature: -40 °C

Max. temperature: +80 °C

Width: 76.5 mm

Height: 34.7 mm

Length: 100 mm

RoHS-compliant: Yes

Content: 1 pc(s)

Variants(All information is without VAT, plus shipping costs)

Connection

Switching type

Control voltage (max.)

Current load (max.)

Control voltage (min.)

Switching voltage (max.)

Product type

Crouzet SSR GN350DSRH 50 A Switching voltage (max.): 510 V AC Random timing 1 pc(s)

Item no:2474908

This article

Screw terminal

Random timing

32 V DC

50 A

4 V DC

510 V AC

SSR

Crouzet SSR 84132010N 20 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474892

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

30 V DC

20 A

4 V DC

280 V AC

SSR

Crouzet SSR 84132110N 8 A Switching voltage (max.): 280 V AC Random timing 1 pc(s)

Item no:2474893

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Random timing

32 V DC

8 A

4 V DC

280 V AC

SSR

Crouzet SSR 84132210N 8 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474894

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

32 V DC

8 A

4 V DC

280 V AC

SSR

Crouzet SSR 84134017N 25 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474895

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

30 V DC

25 A

4 V DC

280 V AC

SSR

Crouzet SSR 84140013N 25 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474896

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

30 V DC

25 A

10 V DC

280 V AC

SSR

Crouzet SSR 84140603N 50 A Switching voltage (max.): 660 V AC Zero -voltage switching 1 pc(s)

Item no:2474897

Screw terminal

Zero -voltage switching

32 V DC

50 A

4 V DC

660 V AC

SSR

Crouzet SSR 84140613N 50 A Switching voltage (max.): 660 V AC Zero -voltage switching 1 pc(s)

Item no:2474898

Screw terminal

Zero -voltage switching

30 V DC

50 A

10 V DC

660 V AC

SSR

Crouzet SSR 84140631N 50 A Switching voltage (max.): 510 V AC Random timing 1 pc(s)

Item no:2474899

Screw terminal

Random timing

30 V DC

50 A

10 V DC

510 V AC

SSR

Crouzet SSR 84140800N 25 A Switching voltage (max.): 280 V AC Zero -voltage switching 1 pc(s)

Item no:2474900

Type C CEE 7/16 plug 6.3 mmType C CEE 7/16 plug 4.8 mm

Zero -voltage switching

32 V DC

25 A

4 V DC

280 V AC

SSR

Documents & Downloads

Datasheet

Datasheet 2474908 Crouzet SSR GN350DSRH 50 A Switching voltage (max.): 510 V AC Random timing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2474908 Crouzet SSR GN350DSRH 50 A Switching voltage (max.): 510 V AC Random timing 1 pc(s)
