Name: CSAU-01/01-16I Eaton xComfort Actuator Switching capacity (max.) 3680 W
Brand: Eaton
SKU: 2142511
Availability: BackOrder

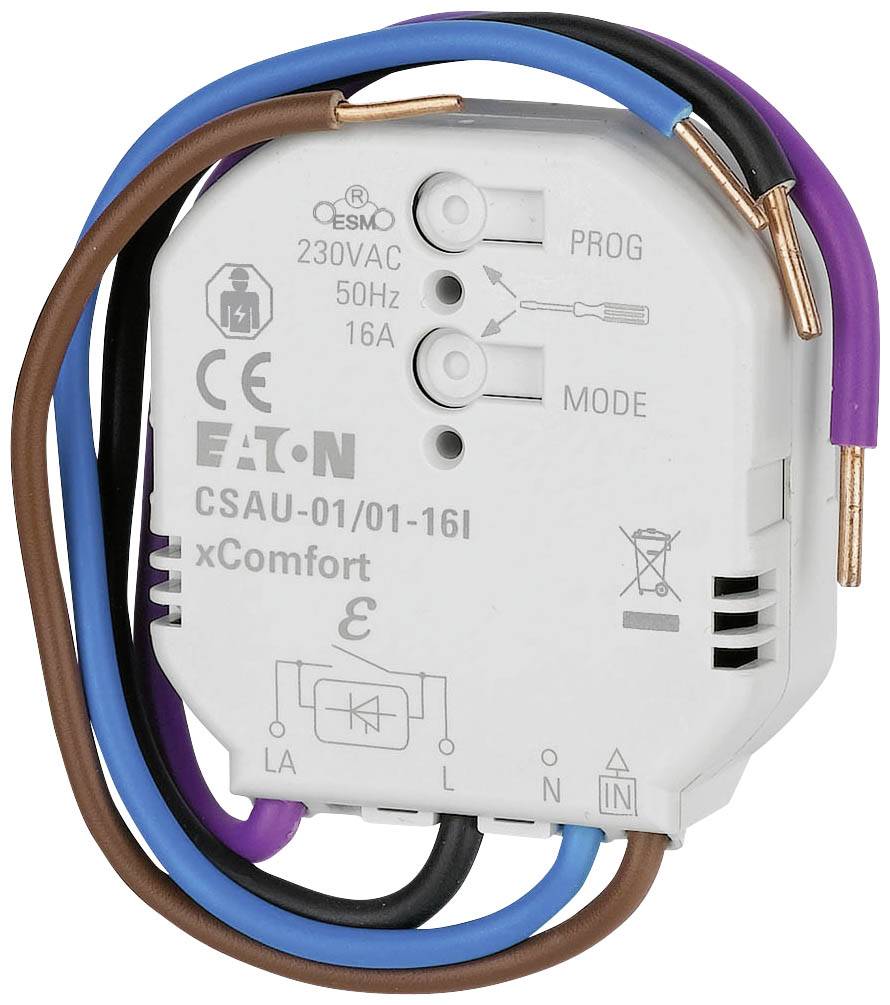

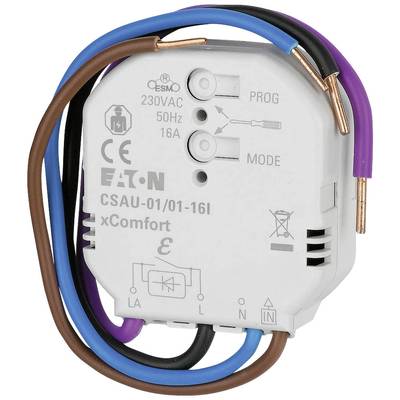

An xComfort switching actuator from EATON with connection wires, marked as CSAU-01/01-16I, for 230V and 16A, displaying programme and mode switches.

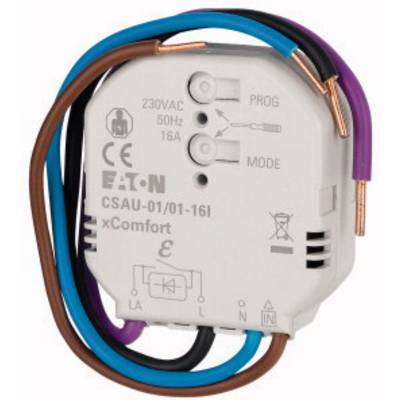

A white electric switch with multiple connected coloured wires. Inscription shows 'Eaton xComfort' and technical specifications.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Switching Device with input

Switch actuator 16 A
Hybrid switching technology
Binary input

Technical specifications

Power supply: 230 VAC, 50 Hz
Transmission type: Bidirectional, via coded telegrams
Range in the building: Typical 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Function assignments: 32
routing routes: 32
Operating temperature: -5 to +55 °C
Housing color: Gray, RAL7035
Length connecting wires: 150 mm
Support in basic mode: Local input mode button (mode 1), switch (mode 2)
Function mode on/off, rocker, pushbutton, step house switch, step house switch with switch-off warning

Product type: Actuator

Series: Eaton xComfort

Dim: (W x H x D) 45.5 x 49.5 x 18 mm

Max. switching capacity: 3680 W

: IP20

Power supply (LOV): mains-powered

Operating voltage: 230 V

: 3680 W

Data transfer (Smart Home): Wireless

Frequency: 868.3 MHz

Mounting type: Flush mount

Width: 45.5 mm

Height: 49.5 mm

Depth: 18 mm

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

: Flush mounted (plaster)

: 16 A

: 0.23 W

: 3680 W

: 230-230 V

: FALSE

: TRUE

: FALSE

: 3680 W

: TRUE

: 1

: 1

: 3

: 16 A

: xComfort

: FALSE

: TRUE

: FALSE

: TRUE

: IP20

: TRUE

: FALSE

: FALSE

: TRUE

: TRUE

: 18 mm

: 0 W

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Dim

Operating voltage

CSAU-01/01-16I Eaton xComfort Actuator Switching capacity (max.) 3680 W

Item no:2142511

Dispatches on Fri 13 Nov

Conrad Electronic

This article

(W x H x D) 45.5 x 49.5 x 18 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

CSAU-01/01-10 Eaton xComfort Actuator Switching capacity (max.) 2300 W White

Item no:2142506

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

CSAU-01/01-16IE Eaton xComfort Actuator Switching capacity (max.) 3680 W

Item no:2142512

Dispatches on Mon 9 Nov

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

CSAU-01/02 Eaton xComfort Actuator Switching capacity (max.) 1840 W

Item no:2142557

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

(W x H x D) 45.3 x 48.6 x 26.2 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

CSAU-01/03 Eaton xComfort Actuator Switching capacity (max.) 1380 W

Item no:2142558

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

(W x H x D) 45.3 x 48.6 x 26.2 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

CSAU-01/04 Eaton xComfort Actuator Switching capacity (max.) 1840 W

Item no:2142462

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

(W x H x D) 48.6 x 45.3 x 26.2 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

CSAU-01/01-10I Eaton xComfort Actuator Switching capacity (max.) 2300 W

Item no:2142508

Unavailable

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

CSAU-01/01-10IE Eaton xComfort Actuator Switching capacity (max.) 2300 W

Item no:2142509

Unavailable

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

CSAU-01/01-16 Eaton xComfort Actuator Switching capacity (max.) 3680 W

Item no:2142510

Unavailable

Conrad Electronic

(W x H x D) 45.5 x 49.5 x 18 mm

230 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Documents & Downloads

Datasheet

Datasheet 2142511 CSAU-01/01-16I Eaton xComfort Actuator Switching capacity (max.) 3680 W

User & Safety Instructions

User & Safety Instructions 2142511 CSAU-01/01-16I Eaton xComfort Actuator Switching capacity (max.) 3680 W

Information

Information 2142511 CSAU-01/01-16I Eaton xComfort Actuator Switching capacity (max.) 3680 W

Description

High-performance switch actuator in small size 230VAC/16A with a local 230VAC input. This device must be in an installation box (according to EN 60670) and behind a accessories or blind plate can be installed, which at least two screw fixing points to the mounting box can be attached. Suitable for high switching capacity to a variety of stresses, such as lighting, ventilation, heating, etc... The local input can be used like a standard binary input device other devices can be connected to switch signals to send.

This text is machine translated.
