Name: CTAA-01/04-LED Eaton xComfort 1-channel Wall switch Grey
Brand: Eaton
SKU: 2142471
Availability: BackOrder

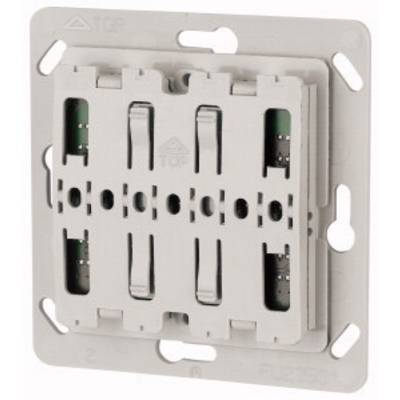

Light switch insert, square, grey, with four elongated openings and screw points at the corners, for wall mounting.

An electrical switch with four toggle switches and a square frame suitable for wall mounting.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Button 1-way, with LED

Wireless wall switch 868 MHz
1-channel
With LED

Technical specifications

Power supply: 3 V via battery CR2450
Transmission type: Bidirectional, via coded telegrams
Range in building: Typical 30 - 50 m, 2 walls + 1 ceiling; (depending on wall thickness, material, used rocker and frame!!)
Operating temperature -5 to +45 °C
Housing color Taster insert: Similar RAL7035
Housing color Taster base plate: Similar RAL7035
Dim. Push-button insert (H x W x D): 55 x 55 x 12.2 mm
Dim. Button base (H x W x D) 70 x 70 x 10 mm

Product type: Wall switch

Series: Eaton xComfort

Power supply (LOV): battery-powered

Data transfer (Smart Home): Wireless

Channels: 1

Frequency: 868.3 MHz

Mounting type: Surface-mount

Factory colour: Grey

Hub: Not required, optional for remote access

Data exchange: Bidirectional (bi)

: n.rel.

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2142471 CTAA-01/04-LED Eaton xComfort 1-channel Wall switch Grey

User & Safety Instructions

User & Safety Instructions 2142471 CTAA-01/04-LED Eaton xComfort 1-channel Wall switch Grey

Information

Information 2142471 CTAA-01/04-LED Eaton xComfort 1-channel Wall switch Grey

Description

The button sends when you press on to the actuators at the convenient electrical installation. LEDs show, whether the signal transmitted, properly understood and back has been confirmed, but does not send any feedback on the actual switching state of the actuator. There is no distinction between blind, dimmers, etc. or change-over, cross switch or blind switch, etc. is necessary. The device is equipped with a button battery powered and can everywhere and simply (screwed in and glued). Due to the slim design, no switch, branch or installation box is required. The button is compatible with many 55 mm frame the switch industry.

This text is machine translated.
