Name: D-Link DES-1005C/E Network RJ45 switch 0.7 MB/s
Brand: D-Link
SKU: 3763536
Availability: InStock

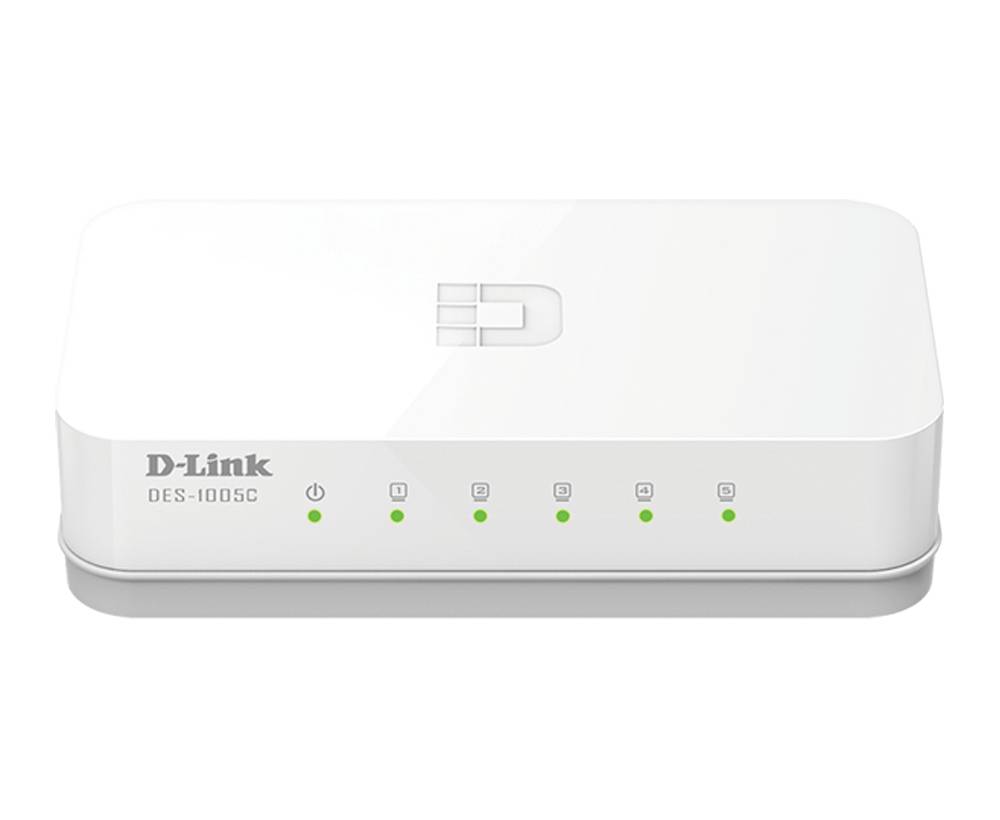

D-Link DES-1005C/E Network RJ45 switch 0.7 MB/s-0

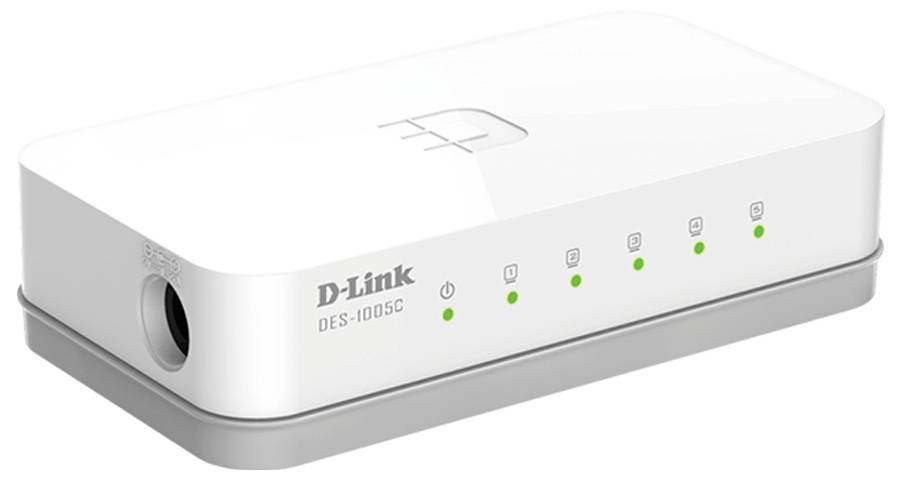

D-Link DES-1005C/E Network RJ45 switch 0.7 MB/s-1

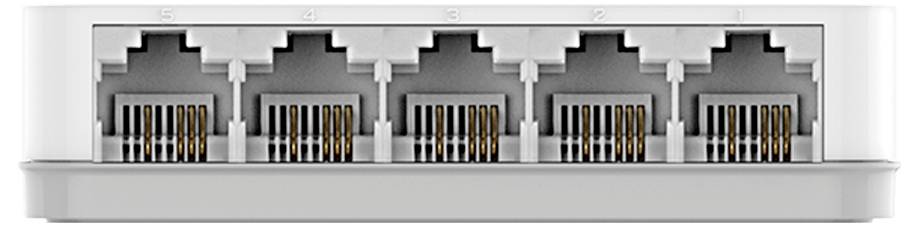

D-Link DES-1005C/E Network RJ45 switch 0.7 MB/s-2

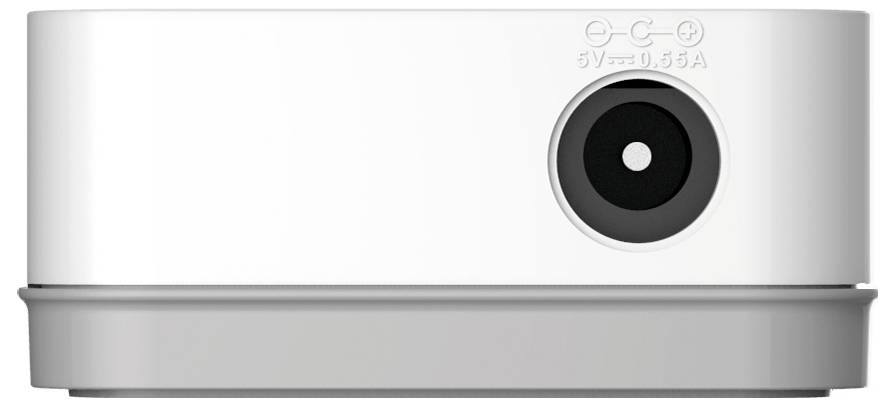

D-Link DES-1005C/E Network RJ45 switch 0.7 MB/s-3

1/4

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

D-Link ES-1005C/E unmanaged fast Ethernet (10/100) desktop white

Five 10/100 Mbps ports for flexible connectivity
Energy efficient Ethernet technology reduces the power consumption
Supports Jumbo frames with up to 2048 bytes for larger data transfers
Auto negotiation and auto uplink functions for easy setup
MTBF of 1,785,631 hours increases the reliability

Technical specifications

Power source: Direct current

Product type: Network RJ45 switch

LAN transfer rate: 10 MBit/s
100 MBit/s

Transfer rate: 0.7 MB/s

Working principle: Unmanaged switch

Ethernet ports: 5

MAC addresses: 2000

Weight: 43.4 g

Width: 88 mm

Height: 21.4 mm

Depth: 48 mm

Type: DES-1005C/E

Factory colour: White

Case type: Desktop

UKCA: yes

Fanless: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 5

Packet buffer memory: 0.093 MB

Storage relative humidity (H-H): 5 - 95 %

Auto-negotiation: yes

Switching capacity: 1 Gbit/s

Heat dissipation: 0.406 BTU/h

Packet forwarding rate (10 Mbps): 14880 pps

Packet forwarding rate (100 Mbps): 148800 pps

Flow control support: yes

Power over Ethernet (PoE): no

Stackable: no

Jumbo frames support: yes

Store-and-forward: yes

Rack mounting: no

Mean time between failures (MTBF): 1785631 h

Full duplex: yes

MAC address table: 2000 Eintragungen

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 10 - 90 %

10G support: no

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 0.74 Mpps

Power consumption (max): 0.784 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763536 D-Link DES-1005C/E Network RJ45 switch 0.7 MB/s

Description

The D-Link DES-1005C 5-port fast-Ethernet unmanaged switch is a compact, cost-efficient network solution for home offices, SOHO applications and small companies that need a reliable wired network connection without complicated setup.

With five 10/100 Mbit/s Fast-Ethernet-ports the DES-1005C enables an easy extension of your network and the connection of several devices such as PCs, printers, IP-cameras or routers. Thanks to the plug-and-play design no technical configuration is required – connect and start immediately.

All ports have Auto MDI/MDIX, where the switch automatically adapts to straight or crossover cables. IEEE 802.3x flow control and the secure store and forward switching process ensure efficient data processing, reduced network overload and stable performance.

The DES-1005C automatically detects inactive network connections and puts unused ports in standby mode to reduce the energy consumption. The fan-less, compact desktop-design ensures a low-noise operation and flexible positioning in every work environment.

This text is machine translated.
