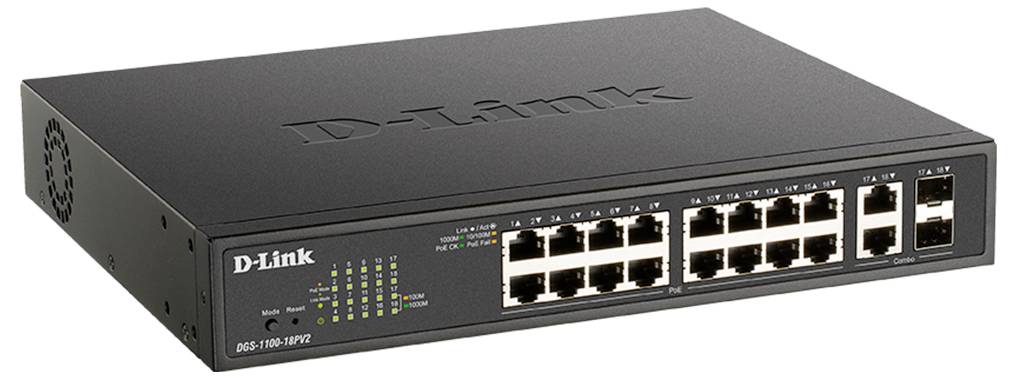

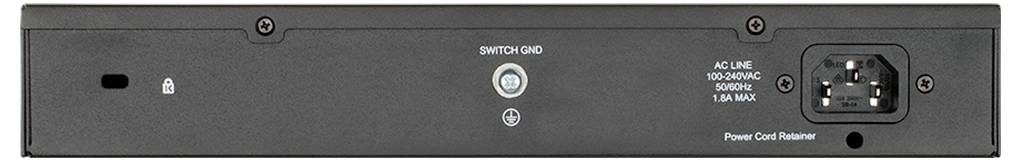

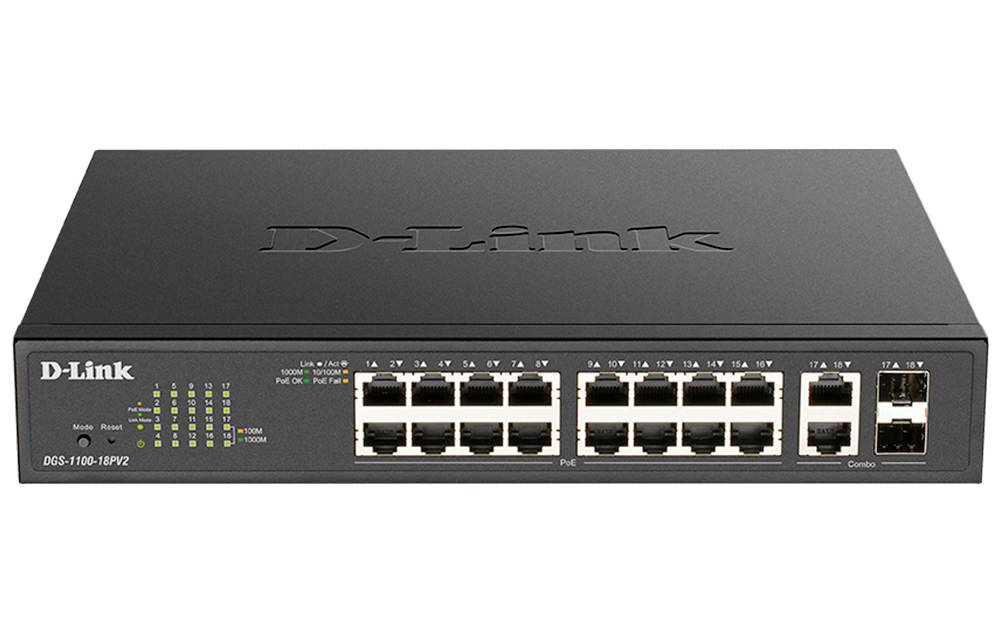

Name: D-Link DGS-1100-18PV2 DGS-1100-18PV2 Network RJ45/SFP switch
Brand: D-Link
SKU: 3763538
Availability: InStock

D-Link DGS-1100-18PV2 DGS-1100-18PV2 Network RJ45/SFP switch-0

D-Link DGS-1100-18PV2 DGS-1100-18PV2 Network RJ45/SFP switch-1

D-Link DGS-1100-18PV2 DGS-1100-18PV2 Network RJ45/SFP switch-2

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 265.00 / piece)

€ 265.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DGS-1100-18PV2 network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black

A total of 18 ports, including 16 PoE+ ports for flexible connectivity
Wide operating temperature range from -5 °C to 50 °C.
Security features including DoS attack protection
Support for VLAN and IGMP snooping for optimized network performance
Rack mountable design for versatile installation

Technical specifications

Form factor: 1U
Number of fans: 1 fans
Power source DC / PoE

Product type: Network RJ45/SFP switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Working principle: Managed switch

IEEE 802.3af PoE: 16

SFP ports: 2 x

MAC addresses: 8000

Weight: 2.1 kg

Width: 280 mm

Height: 44 mm

Depth: 230 mm

Type: DGS-1100-18PV2

Factory colour: Black

Max. operating noise: 45.8 dB

Power supply (details): 100 - 240 V

UKCA: yes

Power over Ethernet (PoE) ports quantity: 16

Operating temperature (T-T): -5 - 50 °C

Combo SFP ports quantity: 2

Basic switching RJ-45 Ethernet ports quantity: 16

Total Power over Ethernet (PoE) budget: 130 W

Storage relative humidity (H-H): 0 - 95 %

Auto-negotiation: yes

Switching capacity: 36 Gbit/s

Heat dissipation: 125.2 BTU/h

Jumbo frames: 9216

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Jumbo frames support: yes

Half duplex: yes

Rack mounting: yes

Mean time between failures (MTBF): 343695 h

Full duplex: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4094

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 26.78 Mpps

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763538 D-Link DGS-1100-18PV2 DGS-1100-18PV2 Network RJ45/SFP switch

Description

The D-Link DGS 1100-18PV2 has been developed for a reliable and efficient network performance. With a total of 18 ports, including 16 PoE+ ports and 2 combo gigabit SFP ports, this switch ensures fast connectivity tailored to different network requirements. The model supports a wide range of operating conditions from -5°C to 50°C, making it suitable for a wide range of environments without compromising performance. Equipped with functions like VLAN-support, IGMP-Snooping and Quality of Service (QoS) it enables an improved bandwidth management and reduces network congestion. The DGS 1100-18PV2 also has security features such as port security and DoS attack protection that ensure a secure network experience. Together with a robust MTBF of over 343,000 hours, this switch is a reliable choice for improving your network infrastructure.

This text is machine translated.
