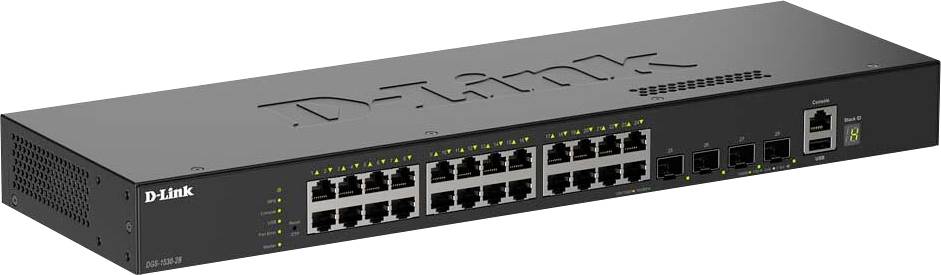

Name: D-Link DGS-1530-28/E DGS-1530-28/E Network RJ45 switch 128 Gbit/s
Brand: D-Link
SKU: 3466347
Availability: InStock

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 675.00 / piece)

€ 675.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DGS-1530-28/E Network switch Managed L2 Gigabit Ethernet (10/100/1000), black

Managed L2 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45
10G support
MAC address table: 16000 entries Routing/switching capacity: 128 Gb/s.
Access control list
Rack mounting Stackable
AC

Technical specifications

Number of fans: 1 fans
Energy source: AC

Product type: Network RJ45 switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 128 Gbit/s

Working principle: Managed switch

Ethernet ports: 24

SFP+ ports: 4 x

SFP ports: 4 x

10/100/1000 Mbps ports: 24 x

Port type: 24 x 10/100/1000 + 4 x 10 Gigabit SFP+

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 2.15 kg

Width: 440 mm

Height: 44 mm

Depth: 140 mm

Type: DGS-1530-28/E

Factory colour: Black

Max. ambient temperature: -5 °C

Min. ambient temperature: 50 °C

No. of USB A 2.0 ports: 1 x

Max. operating noise: 40.9 dB

Power supply (details): 100 - 240 V

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 24

Packet buffer memory: 1.5 MB

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Auto-negotiation: yes

Switching capacity: 128 Gbit/s

Heat dissipation: 109.1 BTU/h

Traffic classification: yes

Loop protection: yes

ARP inspection: yes

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Access Control List (ACL) ingress: 2000

Access Control List (ACL) egress: 1000

Policy-based routing: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

USB Type-A ports quantity: 1

Rack mounting: yes

Mean time between failures (MTBF): 530607 h

Full duplex: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4096

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 95.24 Mpps

Power consumption (max): 32 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3466347 D-Link DGS-1530-28/E DGS-1530-28/E Network RJ45 switch 128 Gbit/s

Description

The D-Link SmartPro DGS-1530-28 is a versatile switch, which was developed to improve the network performance and efficiency. With 28 ports, including 24 for 10/100/1000 and 4 for 10 Gigabit SFP+, this model provides connectivity options for various network configurations. It supports a considerable number of IPv4 (4000 routes) and IPv6 routes to meet modern network requirements and ensure a seamless data transmission across your entire infrastructure.
This switch also features a variety of features, such as an energy-efficient architecture, advanced flow control, and support for VLAN functions. It can be used in different environments, can withstand temperatures from -5 °C to 50 °C and works effectively even at humidity of up to 95%. RMON, SNMP, and SSH protocols enable easy remote management and monitoring, making the DGS-1530-28 a reliable choice for companies that want to optimize their network performance.

This text is machine translated.
