D-Link DIS-100G-10 DIS-100G-10 Network RJ45 switch 20 GBit/s
EAN:
Part number:
Item no:
Total (€ 194.99 / piece)
€ 194.99
incl. VAT
14-day return policy included
Highlights & Details

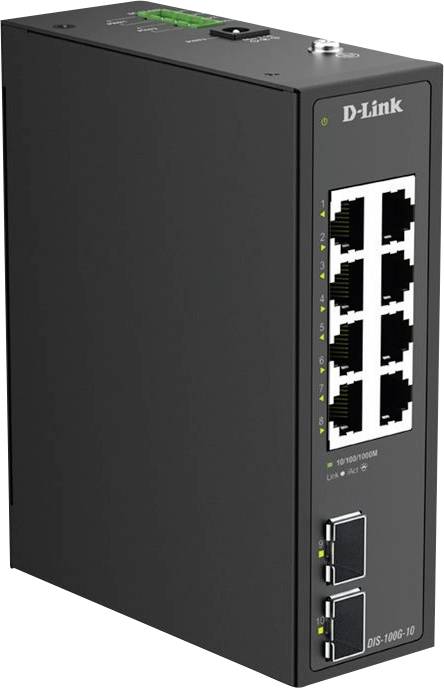

D-Link DIS-100G-10 Network switch unmanaged L2 Gigabit Ethernet (10/100/1000) DIN rail black
- Unmanaged L2
- Number of basic switching RJ-45 Ethernet ports: 8
- MAC address table: 8000 entries Routing/switching capacity: 20 Gb/s.
- DIN rail
- DC power supply included
Technical specifications
- Form factor: DIN rail
- Power source: Direct current
- Product type
Network RJ45 switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
20 GBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- SFP ports
2 x
- Port type
8 x 10/100/1000 + 2 x Gigabit SFP
- MAC addresses
8000
- Weight
620 g
- Width
44 mm
- Height
138 mm
- Depth
108 mm
- Type
DIS-100G-10
IP40
- Factory colour
Black
- Max. ambient temperature
-40 °C
- Min. ambient temperature
75 °C
- UKCA
yes
- DIN rail mounting
yes
- Operating temperature (T-T)
-40 - 75 °C
- Basic switching RJ-45 Ethernet ports quantity
8
- Switching capacity
20 Gbit/s
- SFP module slots quantity
2
- Power over Ethernet (PoE)
no
- MAC address table
8000 Eintragungen
- Operating relative humidity (H-H)
5 - 95 %
- 10G support
no
- Forwarding rate
14.88 Mpps
- Power consumption (max)
6.99 W
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3466353 D-Link DIS-100G-10 DIS-100G-10 Network RJ45 switch 20 GBit/s
Description
The D-Link DIS 100G-10 switch is designed to provide networking capabilities for different environments. With a switching capacity of 20 Gbit/s and a transfer rate of 14.88 Mpps, this switch efficiently handles network traffic. Its 8-port configuration, including 2 Gigabit SFP ports, provides versatile connectivity, while support for Jumbo frames up to 9 KB improves the efficiency of data transfer. The D-Link DIS 100G-10 is designed for long life, works in a temperature range from -40 °C to 75 °C and has a fan-less design for silent operation. It is suitable for installation in demanding environments with high humidity and a humidity range of 5% to 95% RH. With an in-built surge protection of up to 6 kV this switch ensures reliability and longevity and is therefore suitable for critical applications.
This text is machine translated.
This text is machine translated.
Features
- 8 Gigabit Ethernet ports for high speed connections
- Fanless design for silent operation
- Long-lasting operation at extreme temperatures from -40 °C to 75 °C.
- Support for Jumbo frames up to 9 KB for efficient data processing
- Conforms to several standards for versatile use
