Name: D-Link DIS-100G-10P DIS-100G-10P Network RJ45 switch 20 GBit/s
Brand: D-Link
SKU: 3763540
Availability: BackOrder

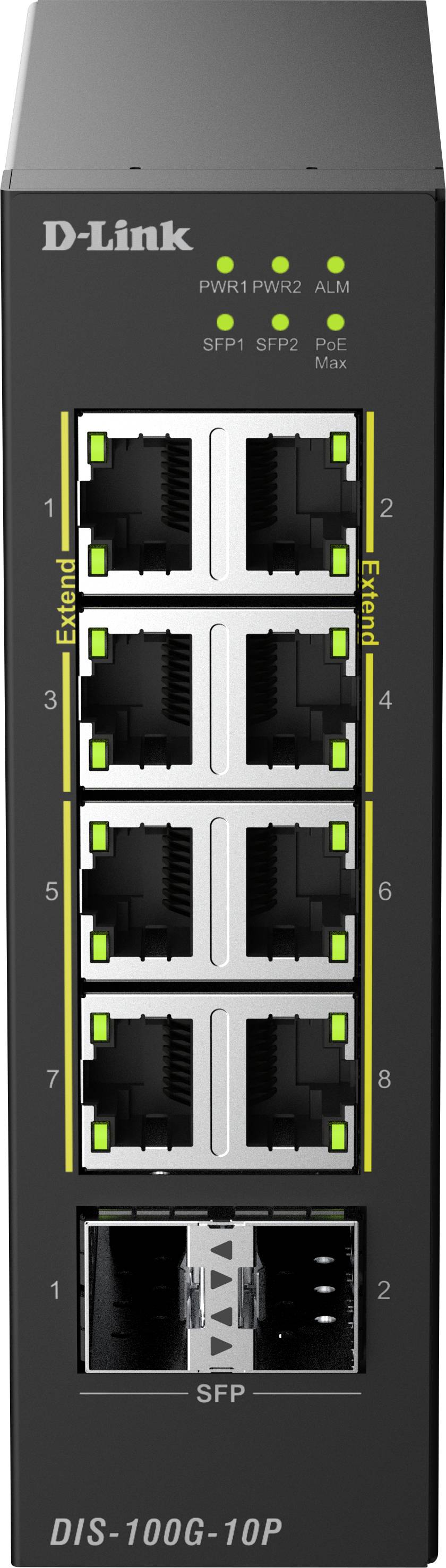

Front view of a D-Link DIS-100G-10P unmanaged Ethernet switch with 8 numbered RJ45 ports and 1 SFP port, showing link/power LEDs.

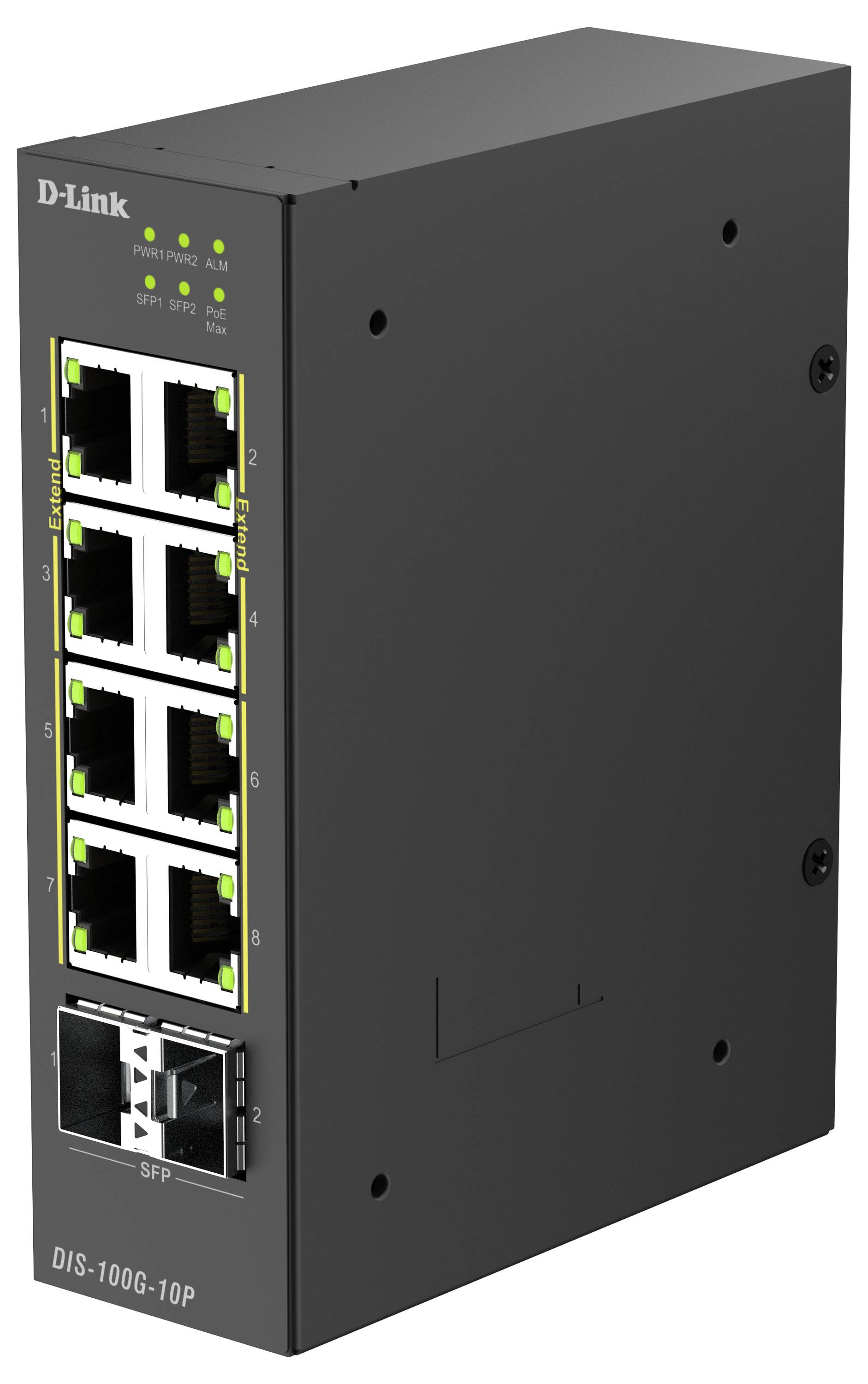

D-Link industrial network switch with eight Ethernet ports and one SFP port, shown in a black metal case.

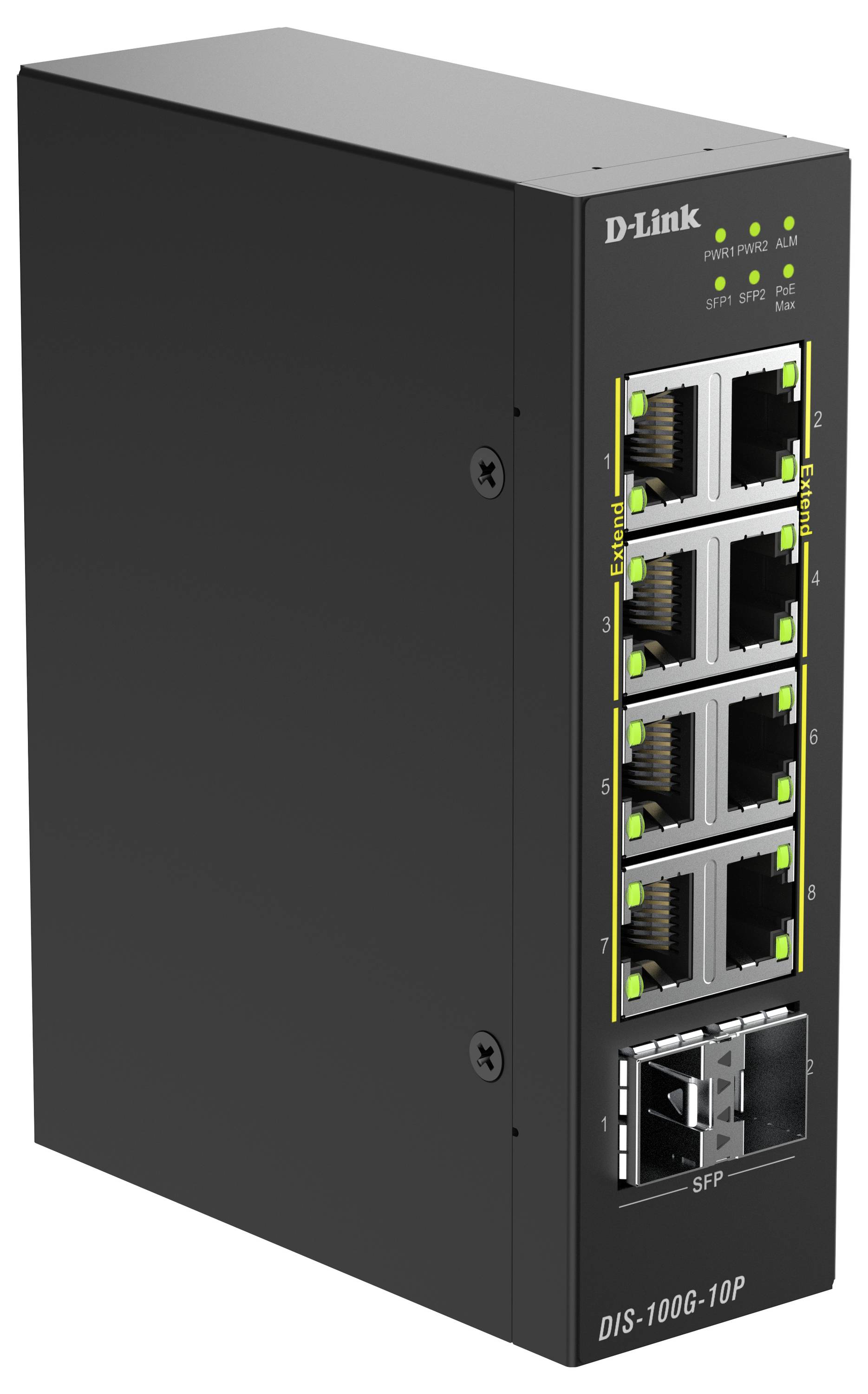

D-Link DIS-100G-10P industrial Ethernet switch with eight RJ45 ports, one SFP port, and status LEDs on the front panel.

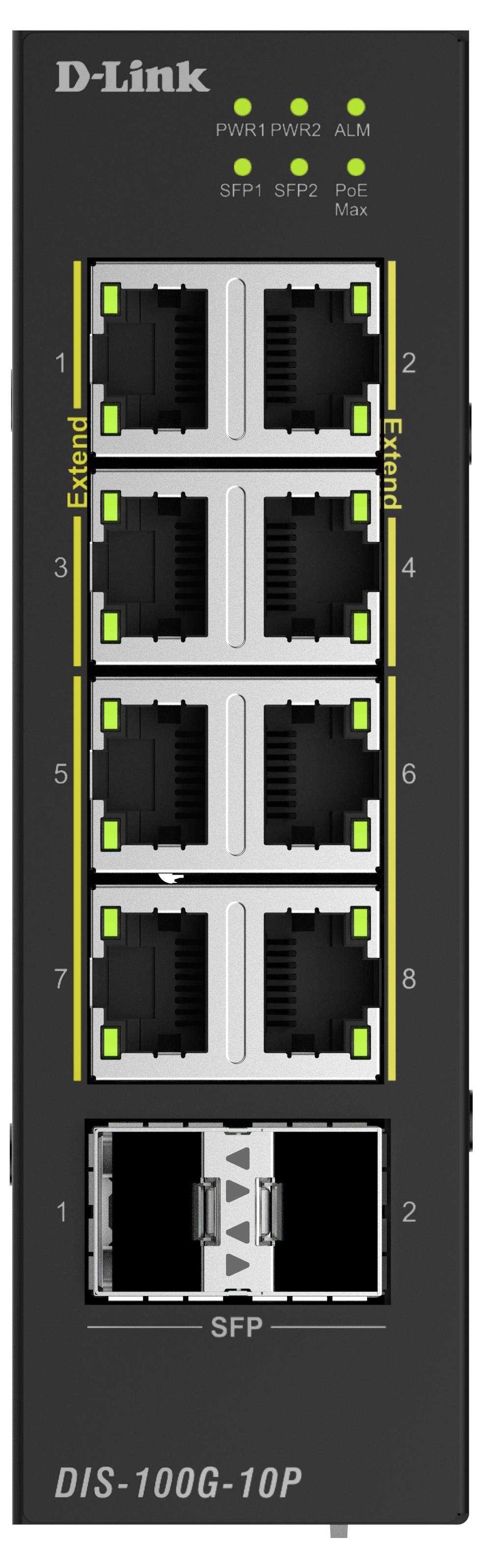

Front view of a D-Link DIS-100G-10P switch showing 8 labeled copper ports in four stacked pairs and 2 SFP ports at the bottom, with status LEDs at top.

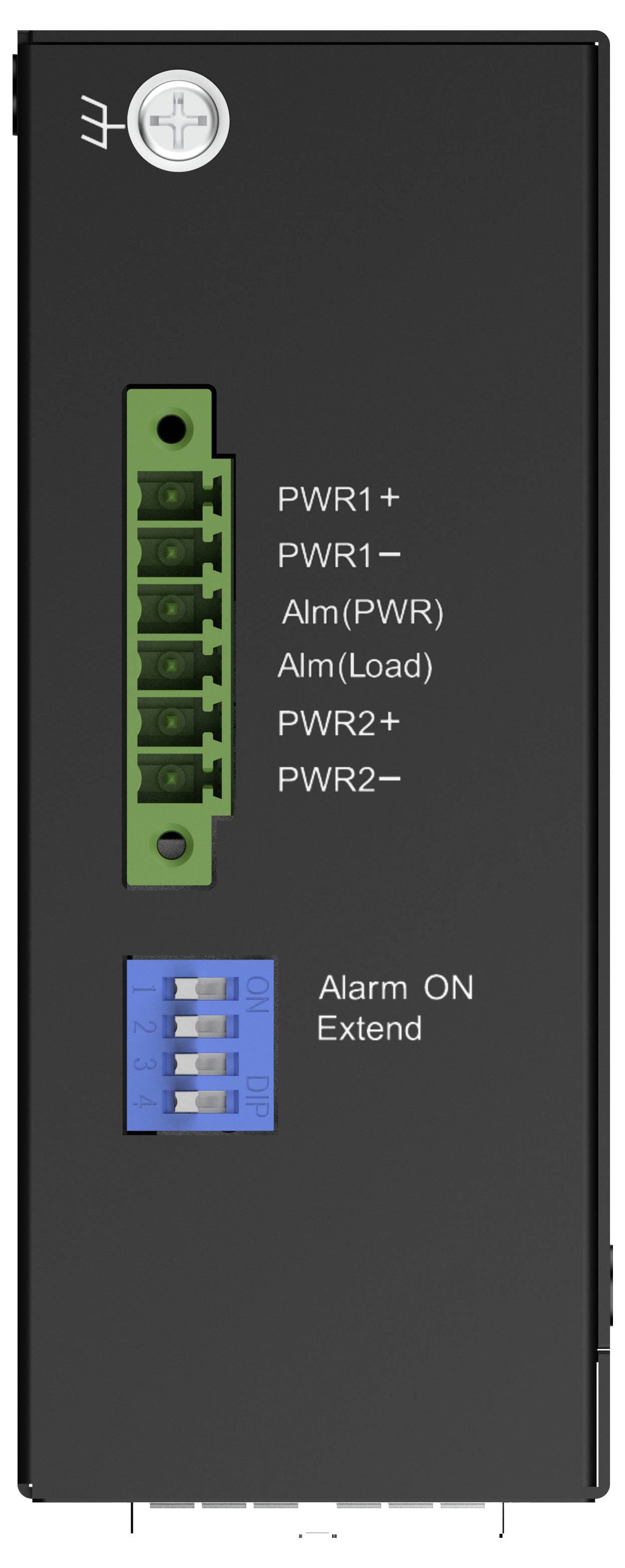

Industrial power module front panel with green terminal block labeled PWR1+, PWR1-, Alm(PWR), Alm(Load), PWR2+, PWR2- and blue switches labeled Alarm ON, Extend.

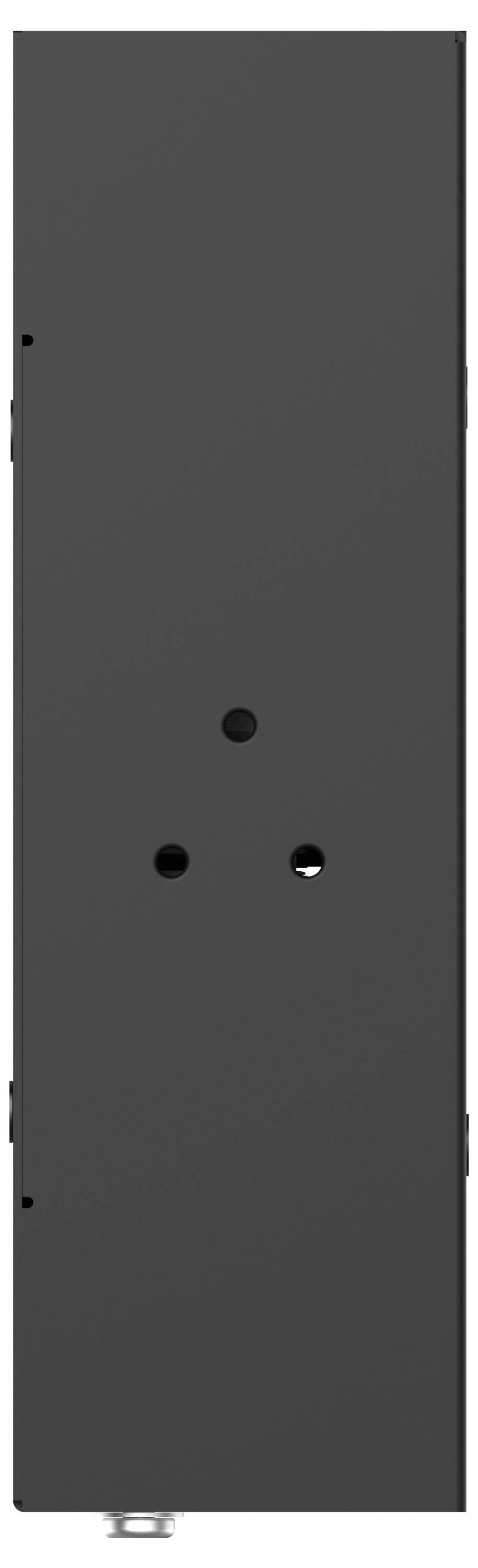

A plain dark gray rectangular panel or door with a few small circular holes or fasteners near the center and edges.

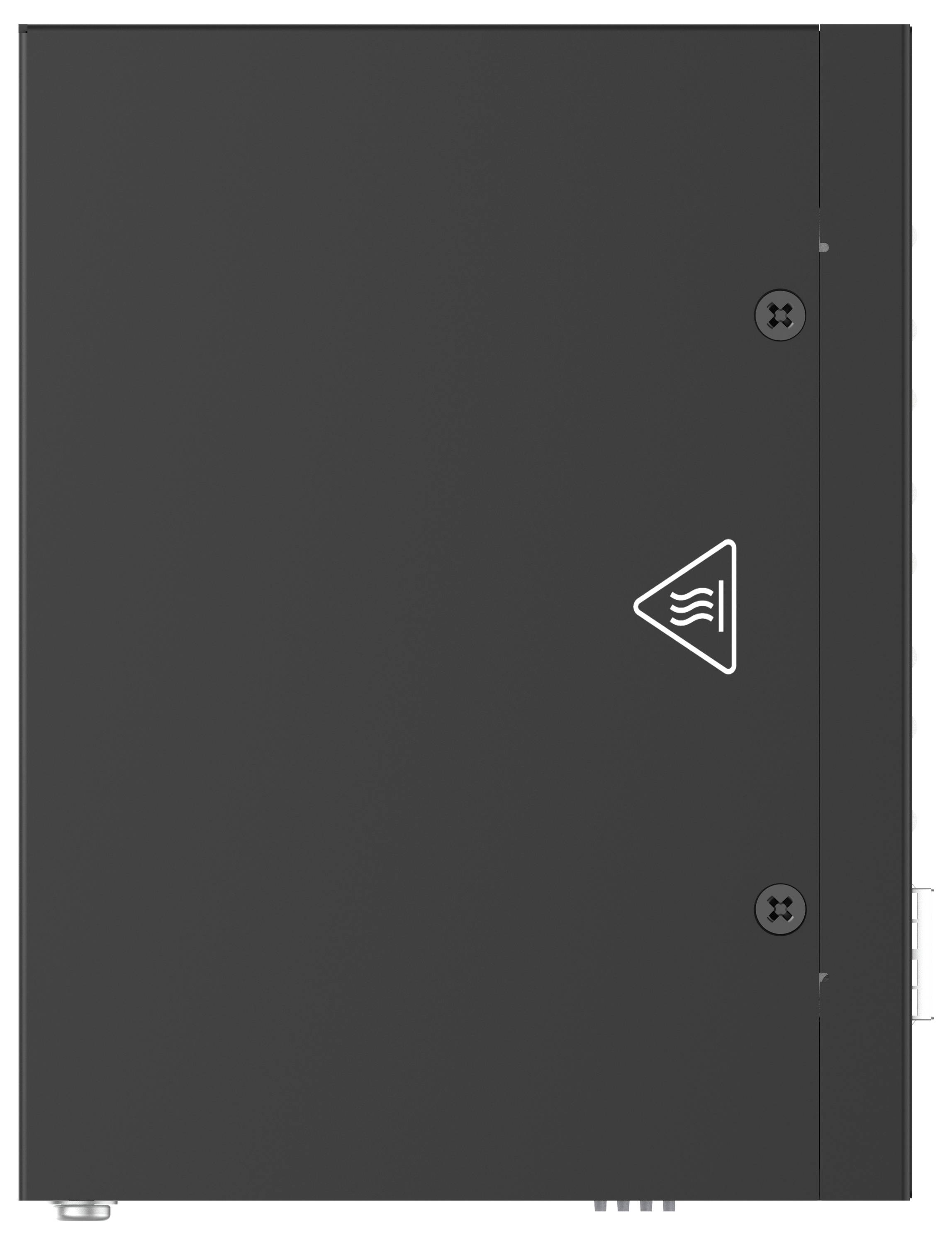

Close-up of a dark gray metal panel or door with a triangular warning-style icon near the center-right and visible screws along the edge.

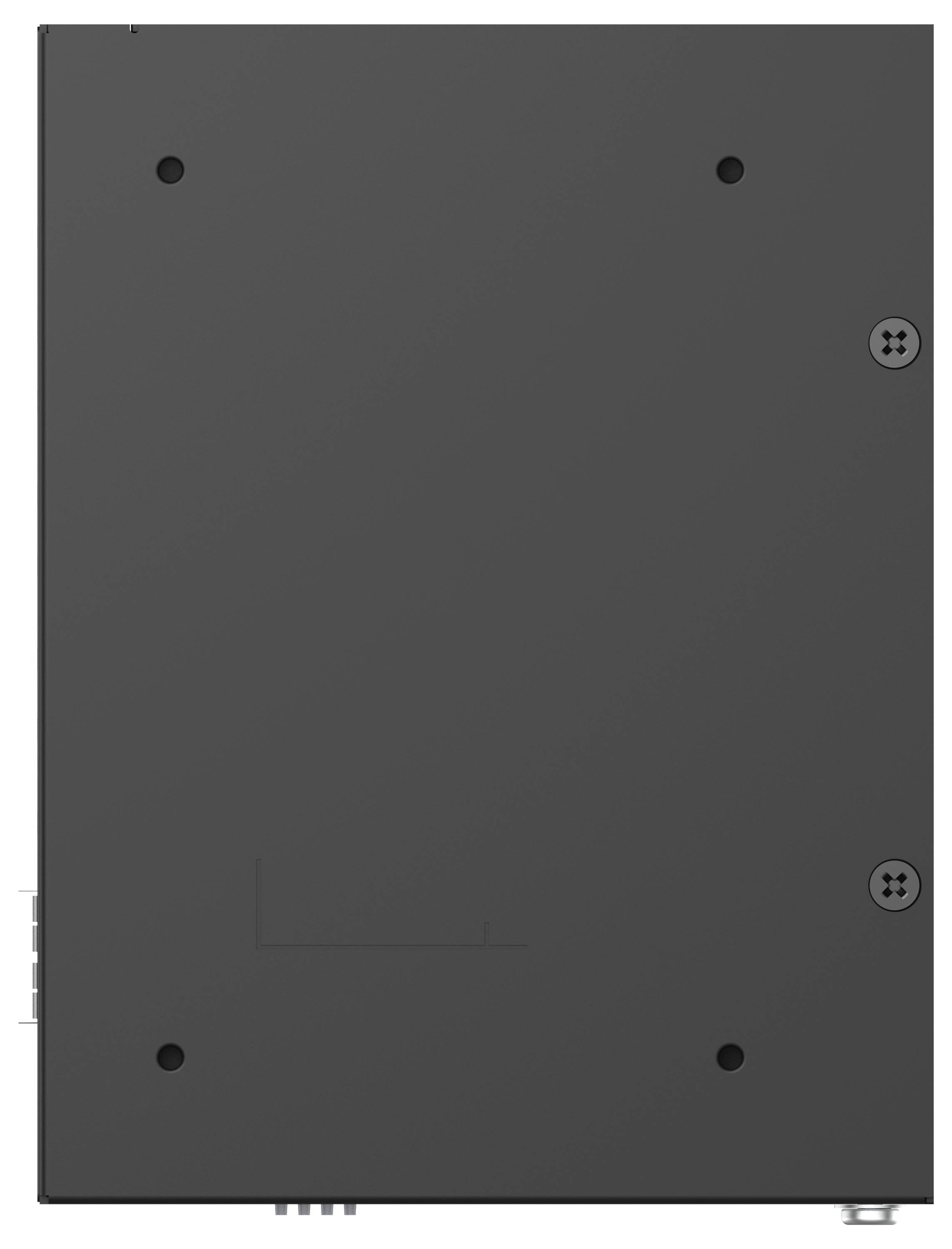

Dark gray rectangular device panel with four corner screw holes and two round side connectors on the right<br>

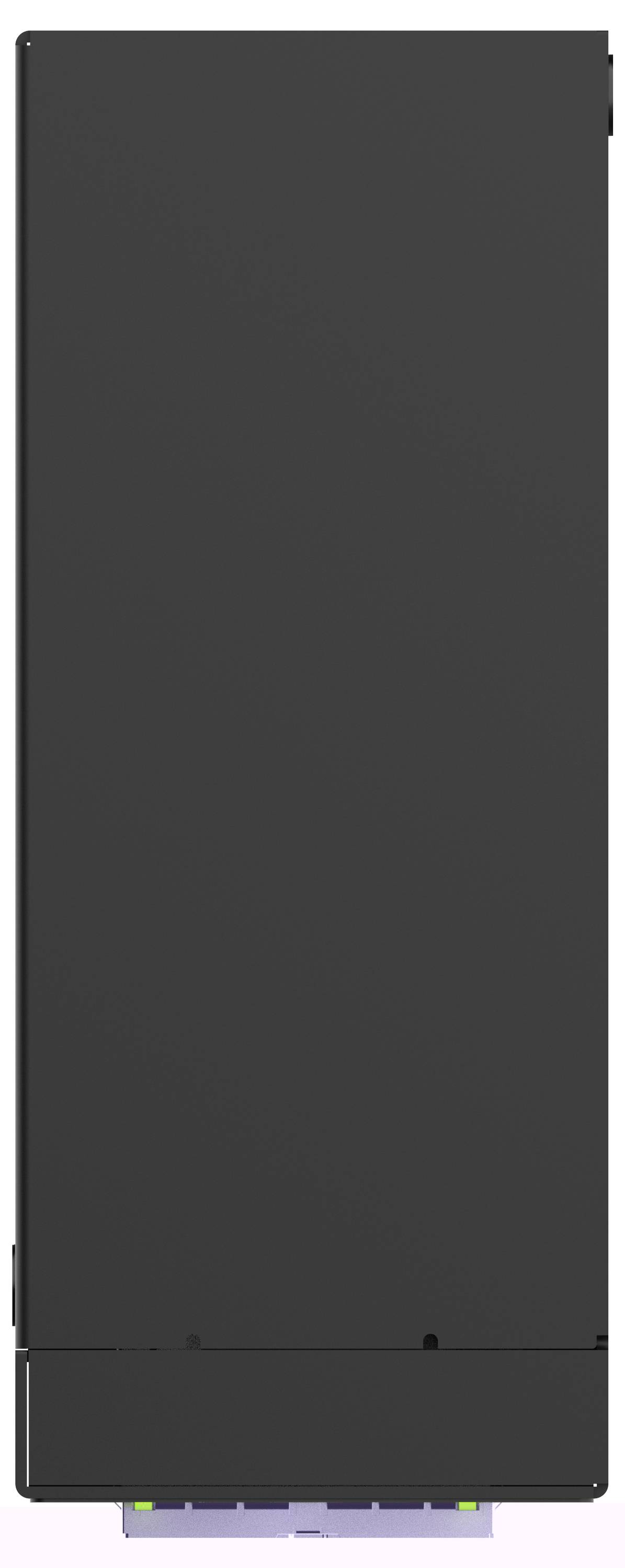

A tall dark gray rectangular device or panel shown front-on, with a slightly lighter base and small green indicators along the bottom edge.

1/9

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 265.00 / piece)

€ 265.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DIS-100G-10P network switch unmanaged L2 gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail black

Designed for industrial environments with a large operating temperature range
Supports up to 10 ports for versatile connectivity options
Energy efficient design with Green Ethernet technology
Robust metal housing for increased durability
With advanced surge protection for reliable performance

Technical specifications

Form factor: DIN rail
Power source: Direct current

Product type: Network RJ45 switch

Transfer rate: 20 GBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

SFP ports: 2 x

MAC addresses: 4000

Weight: 440 g

Width: 44 mm

Height: 130.6 mm

Depth: 99 mm

Type: DIS-100G-10P

: IP40

Factory colour: Black

Max. ambient temperature: 75 °C

Min. ambient temperature: -40 °C

Cable length: 0 cm

Keyboard layout: German, QWERTZ

UKCA: yes

DIN rail mounting: yes

Operating temperature (T-T): -40 - 75 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 240 W

Switching capacity: 20 Gbit/s

SFP module slots quantity: 2

Power over Ethernet (PoE): yes

MAC address table: 4000 Eintragungen

Operating relative humidity (H-H): 5 - 95 %

10G support: no

Forwarding rate: 14.88 Mpps

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763540 D-Link DIS-100G-10P DIS-100G-10P Network RJ45 switch 20 GBit/s

Description

The D-Link DIS 100G-10P is a robust industrial switch designed for demanding environments. With a switching capacity of 20 Gbit/s and a transfer rate of 14.88 Mpps it ensures an efficient data processing in your network. The device offers multiple connection options with 8 ports that support the 10/100/1000Base-T standards, as well as 2 additional Gigabit SFP ports, making it suitable for numerous applications.
The D-Link DIS 100G-10P is designed for harsh conditions and works in a temperature range from -40 °C to 75 °C. It features a fan-less and passive cooling design, WAS increases reliability by minimizing the potential for mechanical failures. In addition, its metal enclosure and compliance with various international standards, including IEEE 802.3 and CE Class A certification, provide durability and safety in industrial environments.

This text is machine translated.
