Name: D-Link DIS-310G-24X DIS-310G-24X Network SFP+ switch
Brand: D-Link
SKU: 3763541
Availability: BackOrder

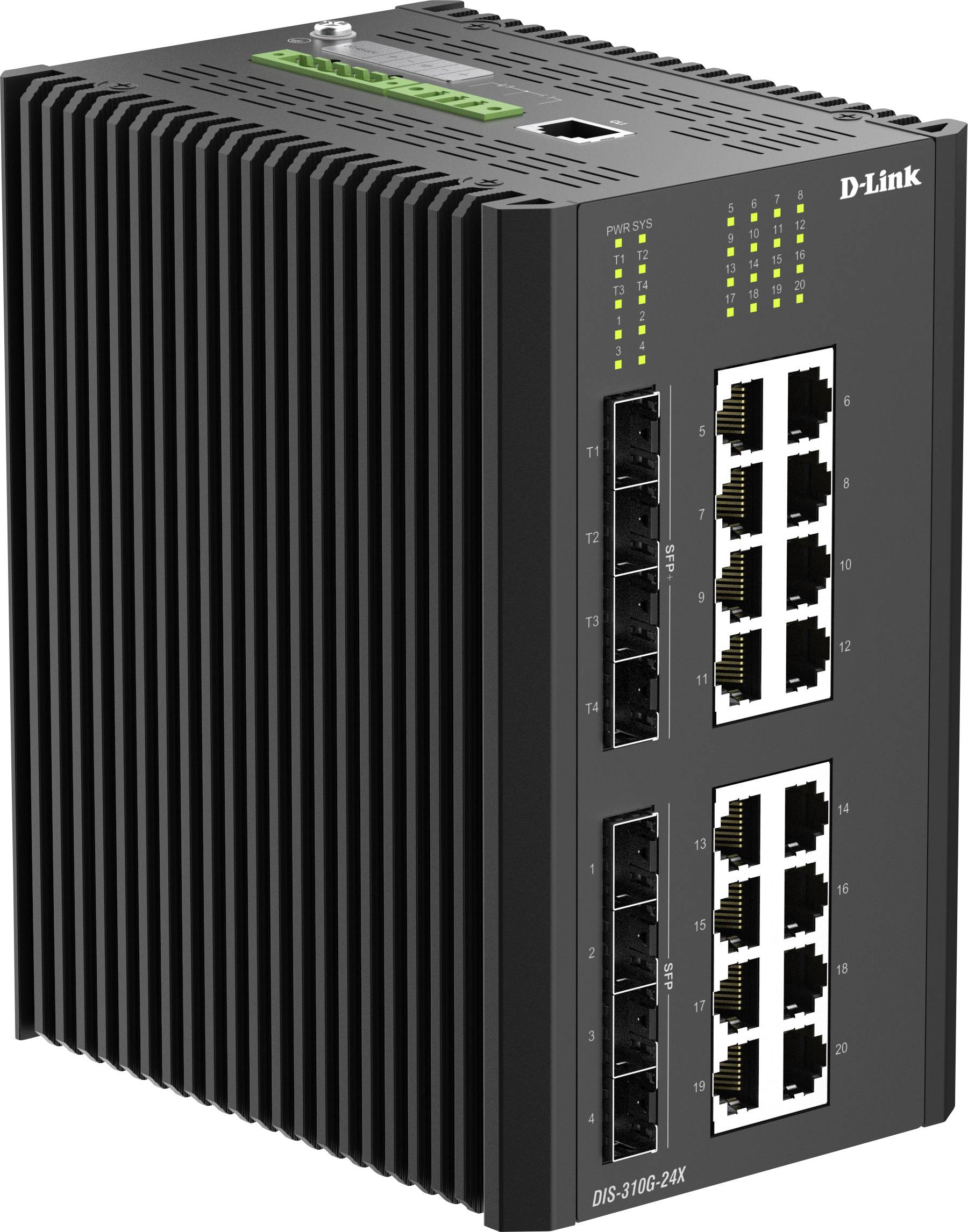

D-Link industrial Ethernet switch with 24 RJ45 ports, status LEDs, and rugged finned metal housing for network connectivity.

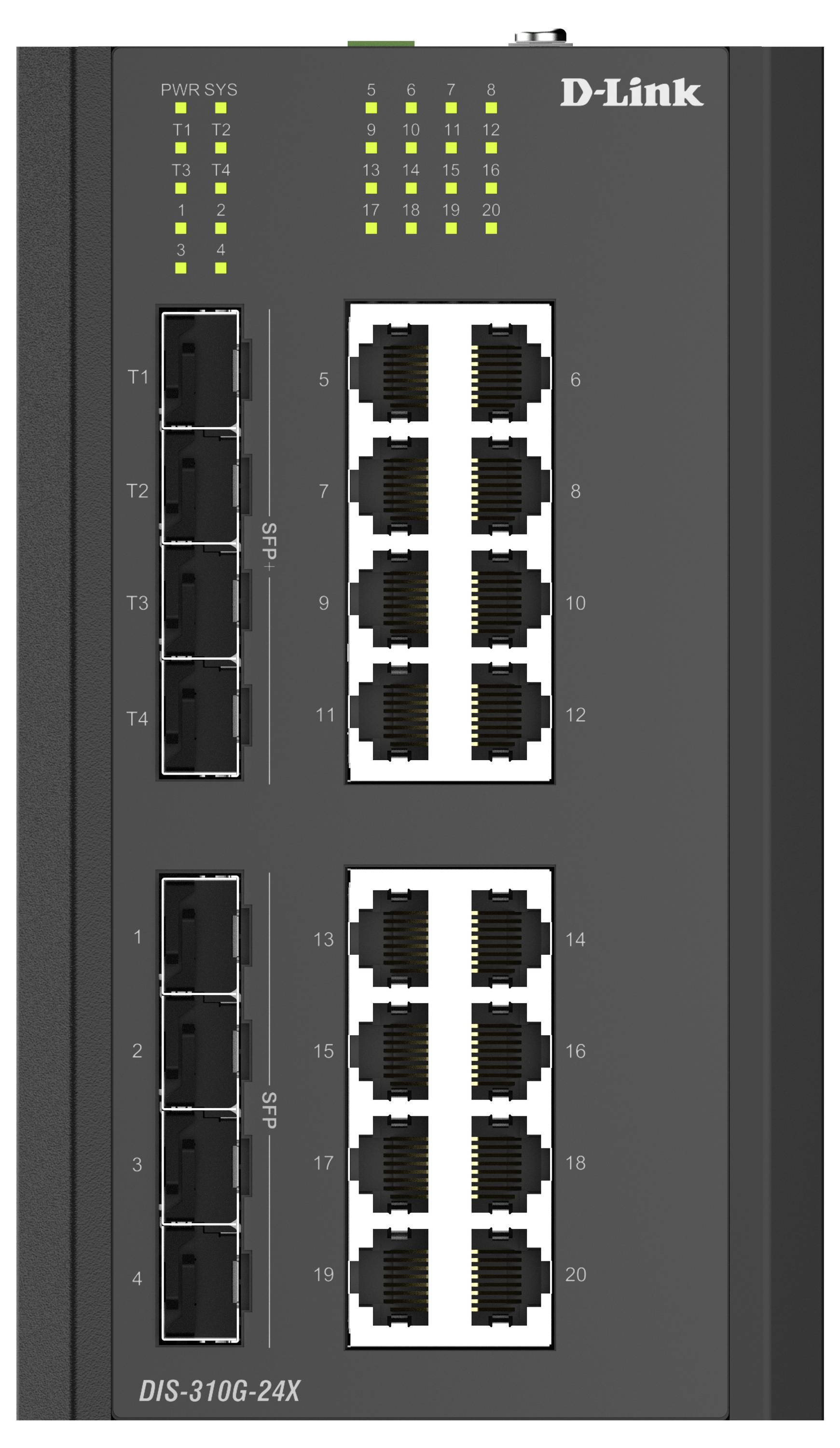

D-Link DGS-310G-24X network switch front panel with 24 Ethernet ports and status LEDs<br>

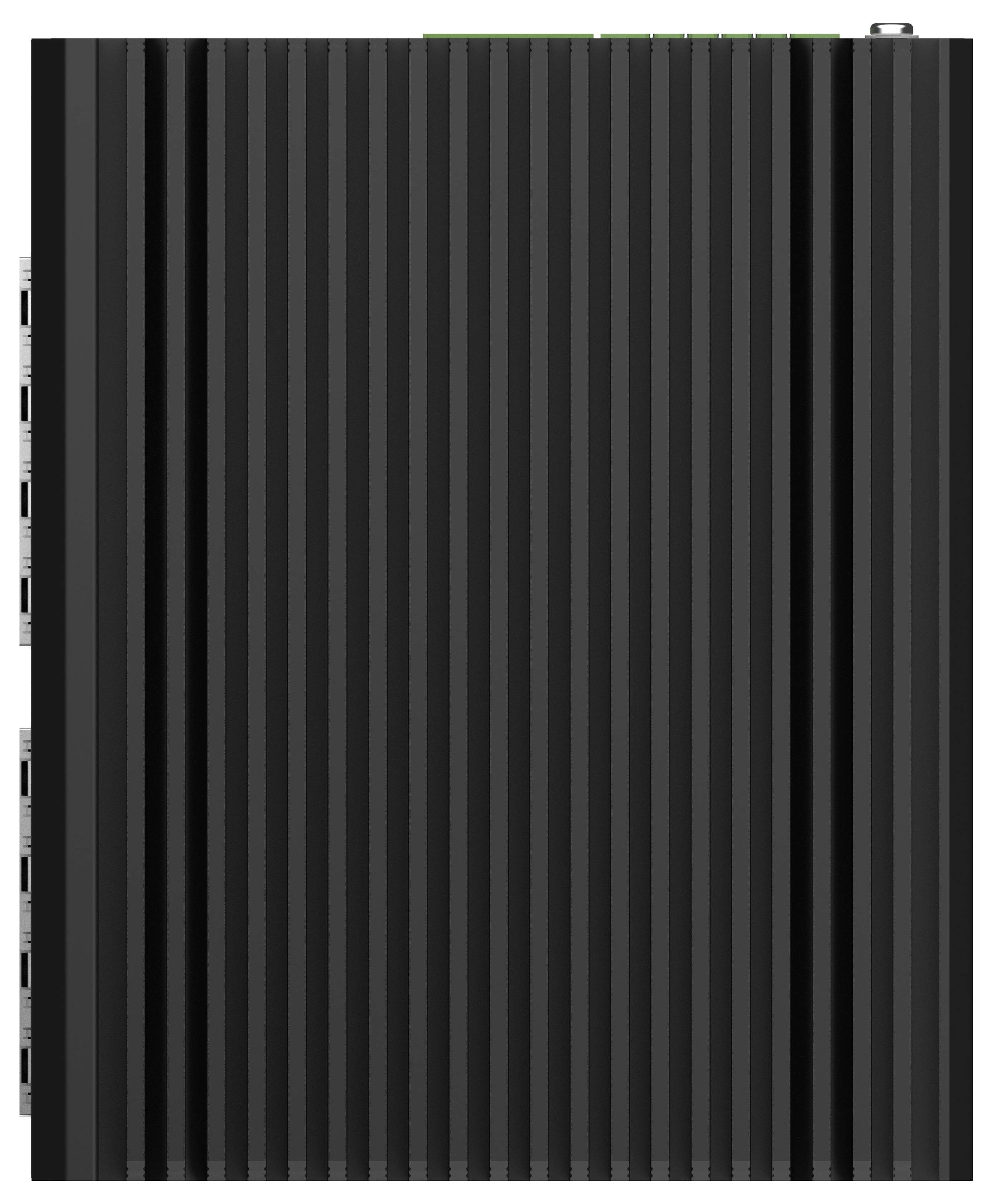

Black vertical-striped panel or cover, with no visible text or distinct subject.

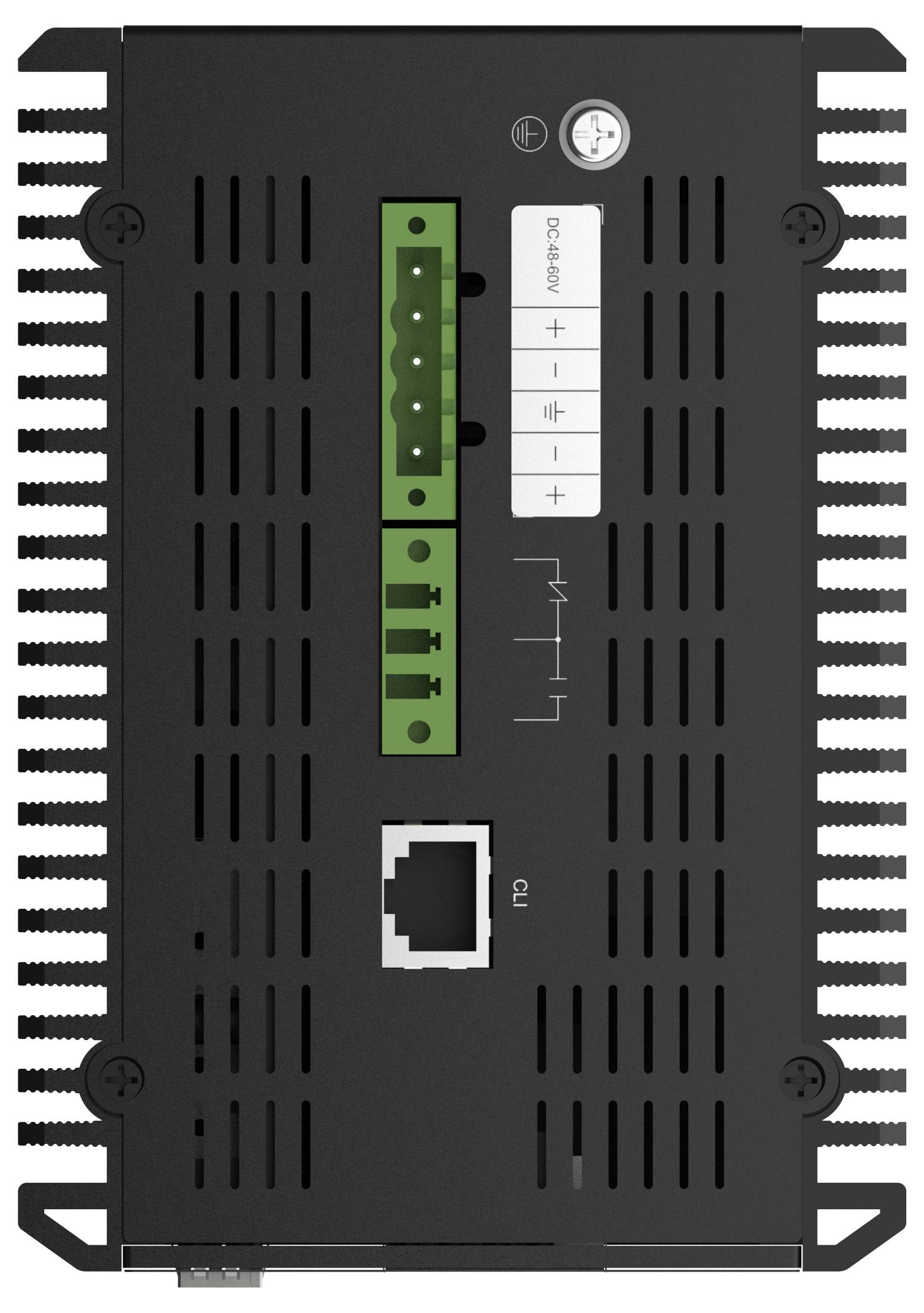

Black rectangular industrial controller with cooling fins, green terminal blocks, a small display panel, and an Ethernet port on the front.

1/4

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,289.00 / piece)

€ 1,289.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DIS-310G-24X Network Switch Managed L2/L3 Gigabit Ethernet (10/100/1000) DIN rail Black

Provides 120 Gb/s switching capacity for high-performance connectivity
Supports up to 20 VLANs and 8 priority queues per port for effective traffic management
Works at extreme temperatures from -40 °C to 75 °C and is therefore suitable for industrial environments
Features a fan-less design and 6 kV surge protection for a long life
Provides extensive remote management options and ensures easy network monitoring

Technical specifications

Form factor: DIN rail
Power source: Direct current

Product type: Network SFP+ switch

Working principle: Managed switch

Ethernet ports: 26

SFP+ ports: 4 x

SFP ports: 4 x

MAC addresses: 16000

Weight: 2.2 kg

Width: 100 mm

Height: 170 mm

Depth: 140 mm

Type: DIS-310G-24X

: IP40

Factory colour: Black

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

DIN rail mounting: yes

Operating temperature (T-T): -40 - 75 °C

Basic switching RJ-45 Ethernet ports quantity: 16

Switching capacity: 120 Gbit/s

Jumbo frames: 12000

SFP module slots quantity: 4

SFP+ module slots quantity: 4

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Jumbo frames support: yes

MAC address table: 16000 Eintragungen

Number of VLANs: 4000

Operating relative humidity (H-H): 5 - 95 %

VLAN support: yes

10G support: yes

Forwarding rate: 89.28 Mpps

Power consumption (max): 27.35 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3763541 D-Link DIS-310G-24X DIS-310G-24X Network SFP+ switch

Description

The D-Link DIS 310G-24X is a reliable industrial quality switch designed for use in demanding environments. With a capacity of 120 Gbit/s and a transfer rate of 89.82 Mpps, this switch ensures an efficient data transmission for high-performance networks. It has 24 ports, including 16 10/100/1000 Base-T ports as well as additional Gigabit and 10 Gigabit SFP+ ports, making it versatile for different port requirements.
Designed for durability, the D-Link DIS 310G-24X is reliable even under difficult conditions and is designed for a wide temperature range from -40 °C to 75 °C. The switch supports multiple VLAN IDs and priority queues to ensure efficient data management and traffic prioritization. With convenient features like Energy-Efficient Ethernet (EEE), cable diagnostics and support for different remote management protocols, this switch fulfills the requirements of modern network infrastructures and at the same time ensures high operational efficiency.
