Dahua Technology DH-SF1016L DH-SF1016L Network switch 3.2 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 3 Piece(s) available
Highlights & Details

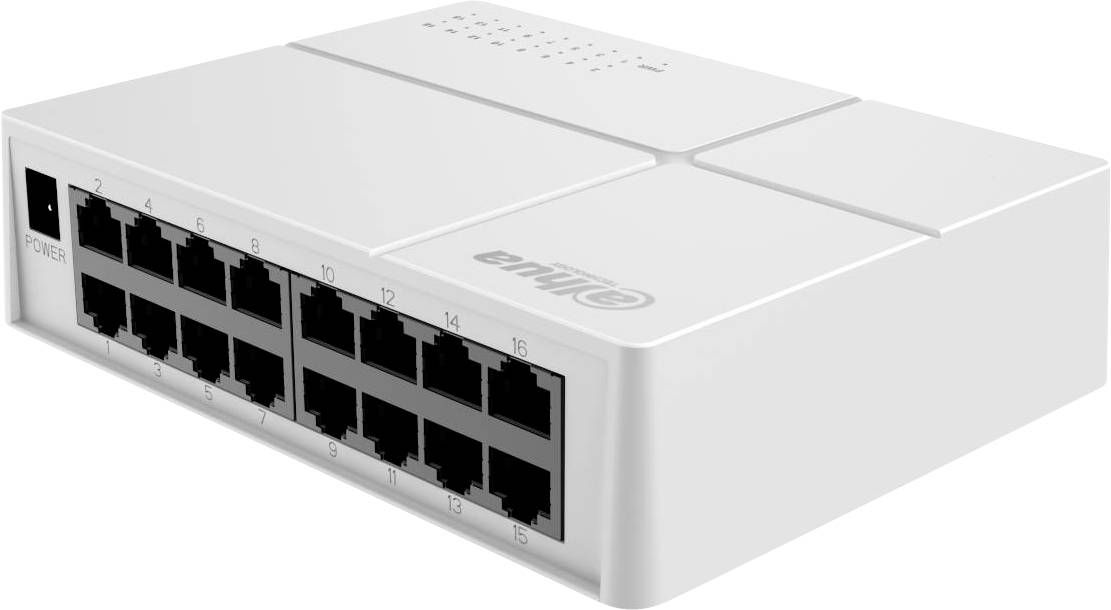

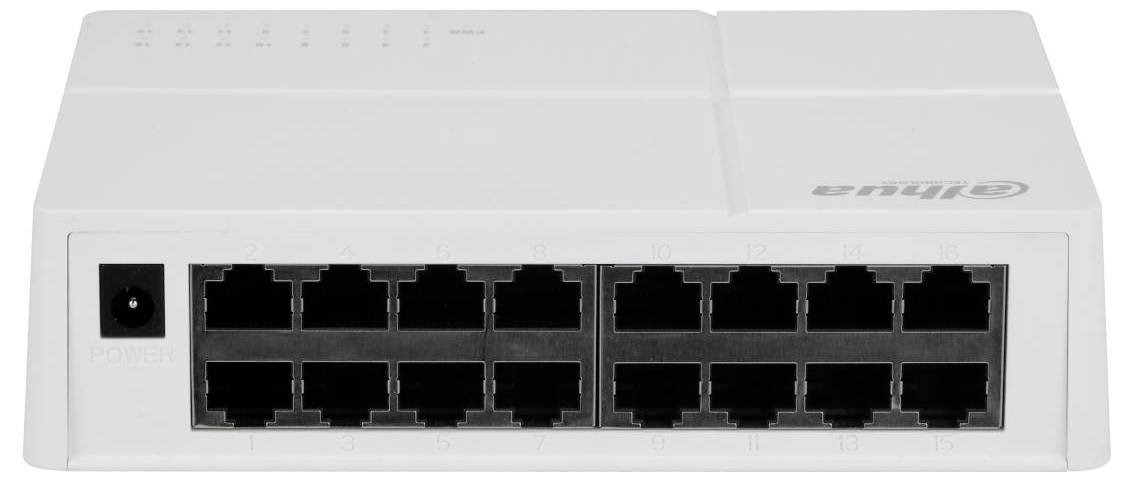

Dahua switch DH-SF1016L - Compact 16-port unmanaged Ethernet switch plug & play
- 16 × RJ-45 10/100 Mbps ports
- Wide operating temperature range from –10 °C to +55 °C.
- Easy to install, plug-and-play
- Supports wall mounting
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
- Transfer rate
3.2 GBit/s
- Working principle
Unmanaged switch
- Ethernet ports
16
- 10/100 Mbps ports
16 x
- Jumbo frames
Yes
- Power supply (LOV)
mains-powered
- Weight
300 g
- Width
160 mm
- Height
42 mm
- Depth
120 mm
- Type
DH-SF1016L
- Interfaces
RJ45
IP30
- Factory colour
White
- Current consumption
Switch-off voltage 12 V/DC/0.5 A
- Max. ambient temperature
+55 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3593712 Dahua Technology DH-SF1016L DH-SF1016L Network switch 3.2 GBit/s
User & Safety Instructions
User & Safety Instructions 3593712 Dahua Technology DH-SF1016L DH-SF1016L Network switch 3.2 GBit/s
Description
The Dahua DH-SF1016L is a Layer 2 switch for small and medium sized offices and businesses.
It has a powerful switching engine and a large buffer memory, in order to ensure a smooth video streaming transmission. With a plastic housing and fan-less design, the device offers a more cost-effective option for customers. It is an unmanaged switch that does not need to be configured via a web interface, WAS simplifies the installation.
Rugged design
Built for a long life, the switch's architecture makes it highly reliable and enables highly efficient, uninterrupted operation.
Plug & Play
No effort required – no configuration is required. Simply switch on and use directly.
Easy to set up
It supports both desktop installation and wall mounting, making it suitable for a variety of scenarios.
The DH-SF1016L is Ideal suitable for use:
· For your own home
· For small businesses like business premises
· Meeting rooms and offices
· Homes, hotels, etc.
This text is machine translated.
It has a powerful switching engine and a large buffer memory, in order to ensure a smooth video streaming transmission. With a plastic housing and fan-less design, the device offers a more cost-effective option for customers. It is an unmanaged switch that does not need to be configured via a web interface, WAS simplifies the installation.
Rugged design
Built for a long life, the switch's architecture makes it highly reliable and enables highly efficient, uninterrupted operation.
Plug & Play
No effort required – no configuration is required. Simply switch on and use directly.
Easy to set up
It supports both desktop installation and wall mounting, making it suitable for a variety of scenarios.
The DH-SF1016L is Ideal suitable for use:
· For your own home
· For small businesses like business premises
· Meeting rooms and offices
· Homes, hotels, etc.
This text is machine translated.
Scope of delivery
- Dahua switch DH-SF1016L
- Power supply unit
- Power Cables
- Quick guide
- Legal disclaimers
- Regulatory Information
