Name: Digitus ACU-4511-305 Network cable CAT 5e U/UTP 4 x 2 x 0.2 mm² Grey-white (RAL 7035) 305 m
Brand: Digitus
SKU: 1548889
Price: 99.99 EUR
Availability: SoldOut

Network cable with four twisted pairs and the inscription 'DIGITUS PROFESSIONAL'; suitable for data transmission.

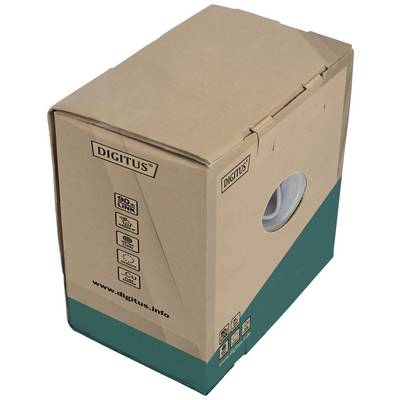

A brown cardboard box with a green area, labelled 'Digitus'. Likely contains cables based on its shape and opening.

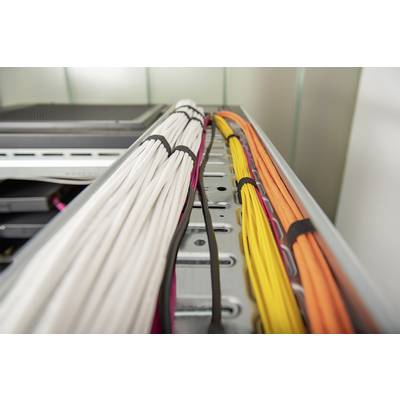

Bundle of white, orange and yellow cables, neatly secured on a server rack, symbolises ordered IT infrastructure.

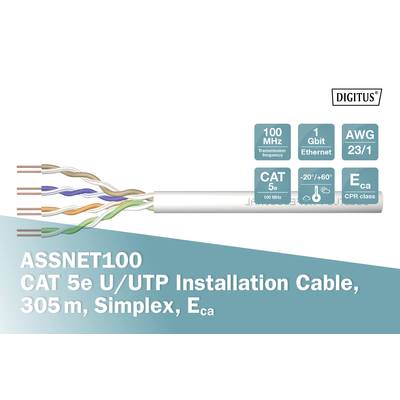

'ASSNET100 CAT 5e U/UTP Installation Cable, 305 m, Simplex, Eca.' Shows cable with 4 colour-coded pairs, supports 100 MHz, 1 Gbit Ethernet.

The image shows an example of using a CAT 5e U/UTP installation cable between a network plug and a socket.

'Cable cross-section: Outer sheath, copper wire, pairs of cores.' Representation of a CAT 5e U/UTP installation cable with 305 m length.

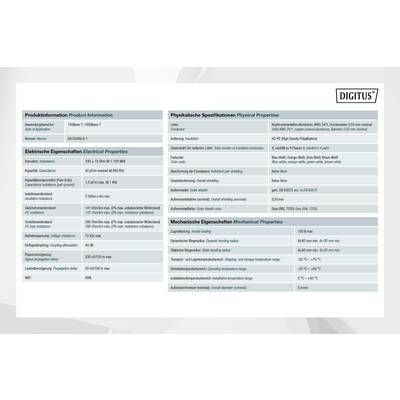

'Digitus' Cable Specification Table: Product Information, Physical, Electrical, and Mechanical Specifications with Dimensions.

'Table shows transmission performance characteristics in MHz, with details for FREQ, ATT, NEXT, PS NEXT, ACR, PS ACR, RL, ELFEXT, PS ELFEXT.'

'Digitus' diagram shows cable categories CAT 6, CAT 6A, CAT 7, CAT 7 SOHO, CAT 7A, CAT 8.2, arranged according to frequency up to 2000 MHz.

'Table for CPD Euro Class with Categorisations of Fire Protection Classes: B2 (Very High), C (High), D (Medium), E (Low).'

1/10

Product type

Network cable

Specification

CAT 5e

Shielding

U/UTP

No. of leads

8 x

Cross section (each core)

0.2 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (1 m = € 0.33)

€ 99.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Network cable - packed

Technical specifications

Product type: Network cable

: CAT 5e

: U/UTP

No. of leads: 8 x

Cross section (each core): 0.2 mm²

Cross section: 4 x 2 x 0.2 mm²

Cable features: Simplex
twisted pairs
rigid core

Outside Ø: 5 mm

Factory colour: Grey-white (RAL 7035)

Max. frequency: 100 MHz

Content: 305 m

AWG max.: 24

Packaged: Yes

Sold per metre: No

Manufacturer part #: ACU-4511-305

Type: ACU-4511-305

Insulation material: HDPE

Min. temperature range (flexible installation): 0 °C

Max. temperature range (flexible installation): 50 °C

Min. temperature range (fixed installation): 60 °C

Max. temperature range (fixed installation): -20 °C

Halogen-free: No

Twisted pair cabling (part 1): Yes (1)

Type: Rigid

Documents & Downloads

Datasheet

Datasheet 1548889 Digitus ACU-4511-305 Network cable CAT 5e U/UTP 4 x 2 x 0.2 mm² Grey-white (RAL 7035) 305 m

User & Safety Instructions

User & Safety Instructions 1548889 Digitus ACU-4511-305 Network cable CAT 5e U/UTP 4 x 2 x 0.2 mm² Grey-white (RAL 7035) 305 m

Description

Suitable for the structured building wiring in the secondary and tertiary area.

Description

Suitable for the structured building wiring in the secondary and tertiary area.
