Name: Digitus DN-80066-1 DN-80066-1 Network RJ45 switch 8 ports 10 / 100 / 1000 MBit/s
Brand: Digitus
SKU: 3384340
Availability: InStock

A black network switch with eight Ethernet ports, numbered from 1 to 8, on a white surface.

A black, rectangular electrical distribution unit with multiple numbered connections and a DC power input socket.

A black electronic device, presumably a network device, with a DC power connector and an earthing screw on the front panel.

Black electronic device with multiple ports and a power connection. Top surface has numbered indicators.

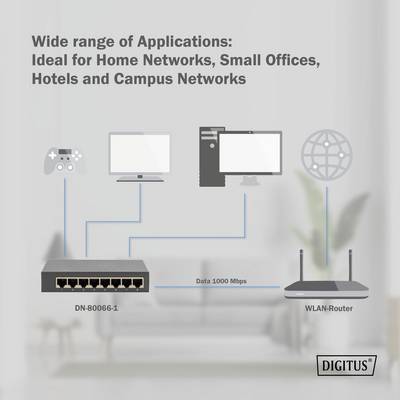

Wide Range of Applications: Ideal for Home Networks, Small Offices, Hotels and Campus Networks<br><br>Graphic shows network devices connected to a switch (DN-80066-1) and Wi-Fi router.

'Plug in, connect devices, enjoy.' Diagram shows devices connected via a switch and Wi-Fi router.<br><br>Note: I've translated this directly, maintaining the original meaning and using typical British English phrasing and spelling conventions.

A black network switch with eight Ethernet ports. Text above describes quiet, fanless operation and provides technical details.

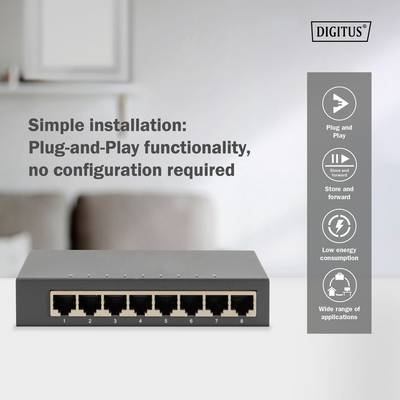

A black 8-port network switch on a table with text: 'Simple installation, plug-and-play, no configuration required'.

Compact network switch measuring 140x67x26 mm, suitable for various network environments. Six Ethernet ports visible.

Digitus DN-80066-1 DN-80066-1 Network RJ45 switch 8 ports 10 / 100 / 1000 MBit/s-9

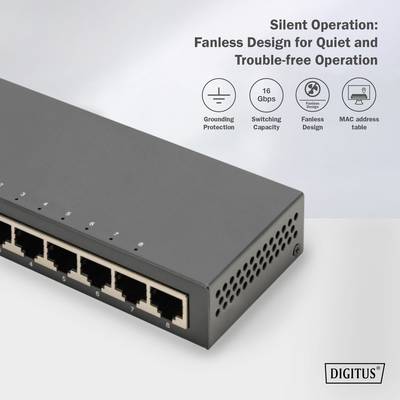

A black network switch with eight Ethernet ports. Top right highlights advantages: silent, 16 Gbps, fanless, earthing-protected.

1/11

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digitus 8-port gigabit switch, desktop, unmanaged, metal casing

Gigabit speed: 8 adaptive 10/100/1000Mbps RJ45 ports for ultra-fast network connections
Easy installation: Plug-and-play, no configuration required
Silent operation: Fan-less design for quiet operation
Reliable performance: 16Gbps switching capacity and 11.9Mpps forwarding rate
Low power consumption: Only 5W power consumption, Ideal for continuous operation
Stable connectivity: 4K MAC address table with auto-learning and auto-aging for efficient network management

Technical specifications

Product type: 8-port Gigabit unmanaged switch
Connections: 8 x 10/100/1000Mbps adaptive RJ45 ports
Network Media (Cable): 10BASE-T: UTP Category 3, 4, 5 cables (≤100m) 100BASE-TX: UTP Category 5, 5e cables (≤100m) 1000BASE-T: UTP Category 5e, 6 cables (≤100m)
MAC address table: 4K, Auto-Learning, Auto-Aging
Switching capacity: 16Gbps
Forwarding-rate: 11.9Mpps
Power supply: Input Voltage: 5V/1A Power consumption: 5W DC-plug size: 5.5 x 1.5mm
Operating temperature: 0 °C ~ 40°C
Storage temperature: -40°C ~ 70°C.
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5% ~ 90% non-condensing
Dimensions (L x W x H) 140 x 67 x 26mm

Product type: Network RJ45 switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

10/100/1000 Mbps ports: 8 x

Port type: RJ45

Auto-uplink at each port: No

Jumbo frames: No

Power supply (LOV): mains-powered
via DC in
via mains outlet
via PSU

Weight: 410 g

Width: 149 mm

Height: 92 mm

Depth: 95 mm

Type: DN-80066-1

Interfaces: RJ45

Factory colour: Black

Operating voltage: 230 V

Current consumption: 5 W

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

Port: 8 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3384340 Digitus DN-80066-1 DN-80066-1 Network RJ45 switch 8 ports 10 / 100 / 1000 MBit/s

Description

The DN-80066-1 SOHO network switch is the ideal solution for home networks and small offices. With 8 gigabit ports, it offers fast and reliable connections for all your devices. Thanks to the simple Plug and Play installation and the compact, fan-free design, it is maintenance-free and fits perfectly in every network environment.

This text is machine translated.

Features

High compatibility: Supports MDI/MDIX auto-flip
Compact design: 140x67x26mm
Safe operation: Supports grounding for protection against lightning and overvoltage
Wide range of applications: Ideal for home networks, small offices, hotels and campus networks
Transfer mode: Store-and-forward

Scope of delivery

5V/1A mains adaptor
Quick installation guide (QIG)

Description

Features

High compatibility: Supports MDI/MDIX auto-flip
Compact design: 140x67x26mm
Safe operation: Supports grounding for protection against lightning and overvoltage
Wide range of applications: Ideal for home networks, small offices, hotels and campus networks
Transfer mode: Store-and-forward
