Name: Digitus DN-80113-2 DN-80113-2 Network RJ45 switch 10 / 100 / 1000 MBit/s
Brand: Digitus
SKU: 3455195
Availability: InStock

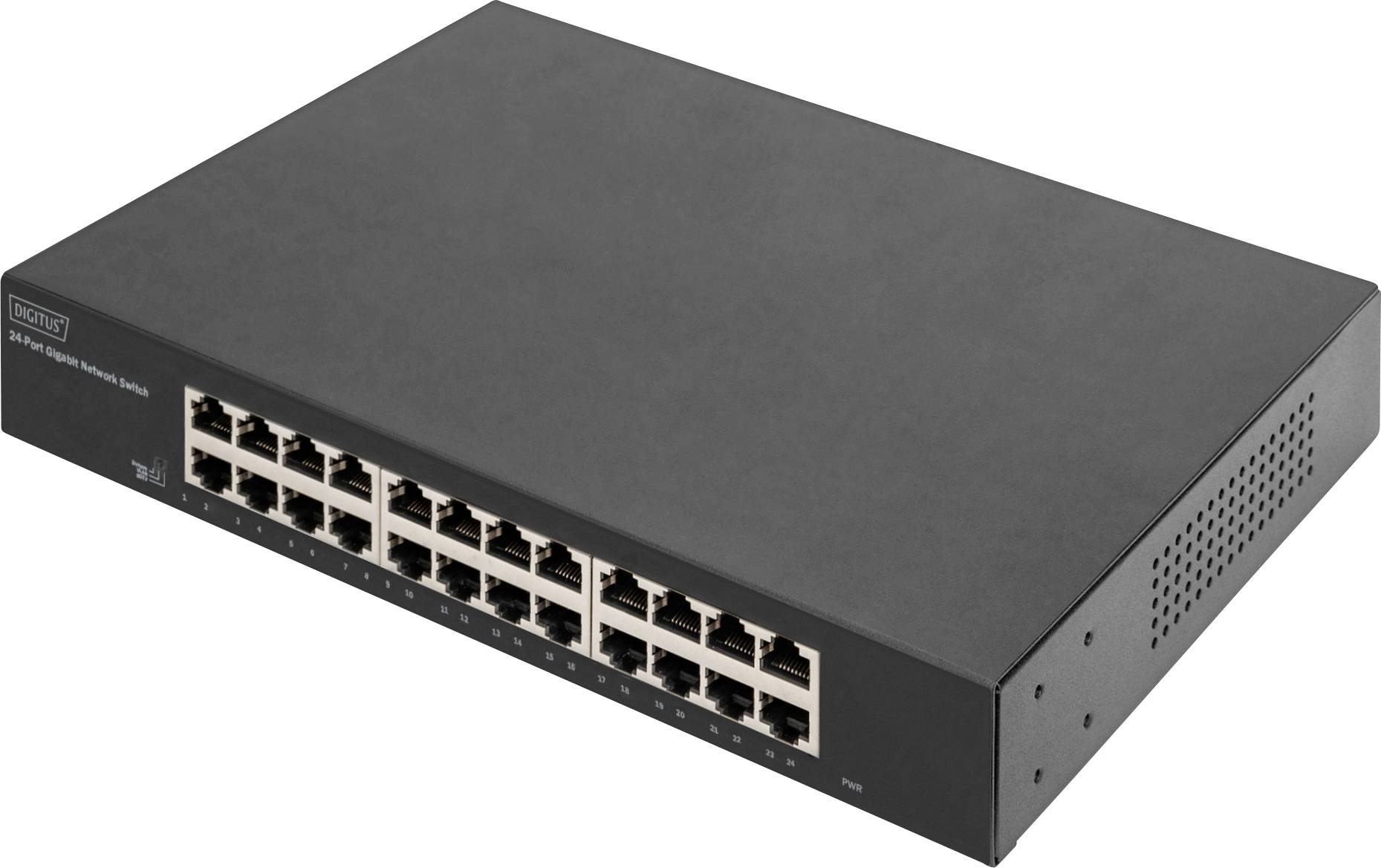

A black 24-port Ethernet network switch for connecting multiple devices, shown from an angled top view with visible port labels.

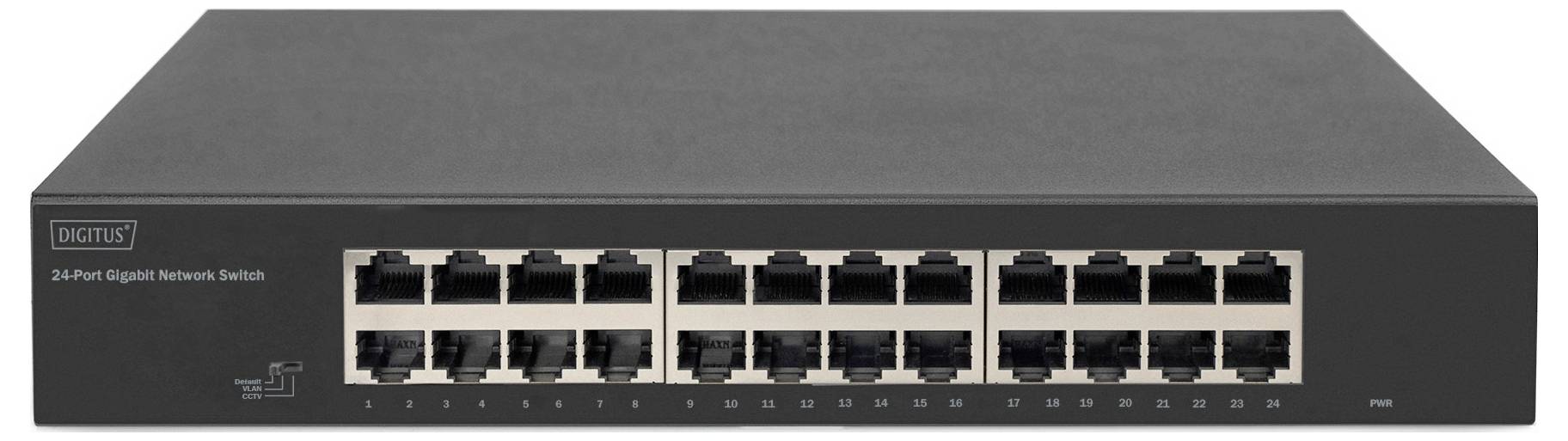

Digitus DN-80113-2 DN-80113-2 Network RJ45 switch 10 / 100 / 1000 MBit/s-1

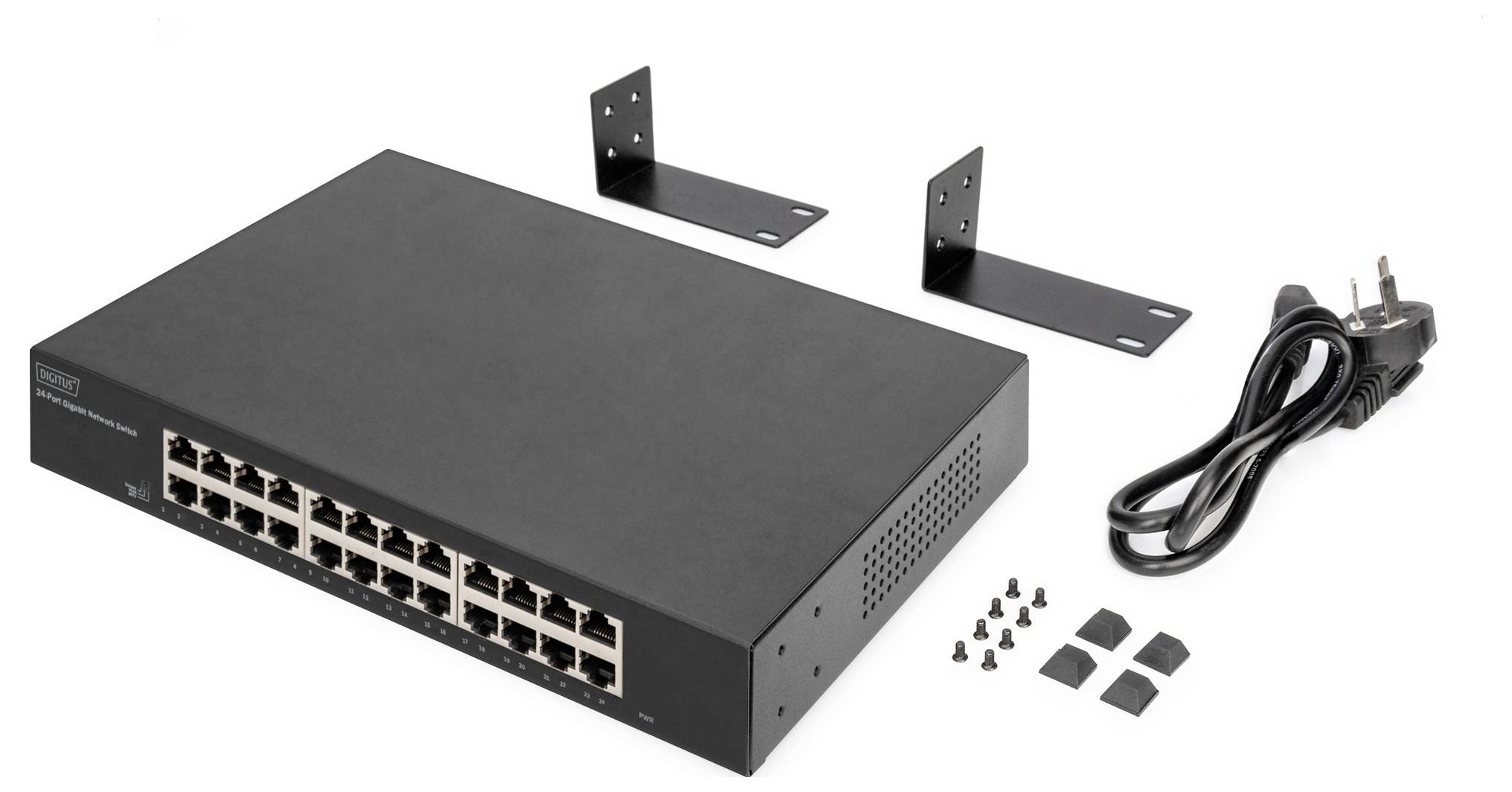

Digitus DN-80113-2 DN-80113-2 Network RJ45 switch 10 / 100 / 1000 MBit/s-2

1/3

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

21 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Digitus 24-port gigabit switch, 19", unmanaged

Gigabit speed: 24x 10/100/1000Mbps RJ45 ports deliver ultra-fast network speeds and ensure a smooth and uninterrupted data flow
IEEE-compatibility: Fulfils several IEEE-standards (IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3az) and thus guarantees compatibility with a large number of network devices
Auto MDI/MDIX: Simplifies network setup with automatic port-flipping and eliminates the need for crossover-cable
Full-duplex and half-duplex flow control: Supports IEEE802.3x full duplex flow control and back pressure half duplex flow control for improving network efficiency
Advanced security: Provides a perfect security mechanism to protect your network from potential threats
Intelligent data processing: Intelligent recognition of wire-speed forwarding and store-and-forward mode for optimum data processing
VLAN and CCTV support: Increases network segmentation and supports CCTV applications for improved network management
Robust design: Fan-less design and robust construction with surge and electrostatic protection for durability and reliability
Energy efficient: Low power consumption with a total power of only 14.4 W, WAS makes it an environmentally friendly choice
Easy to install: Includes all necessary accessories such as a power cord, feet, rack mounting kit, screws and a user guide for easy setup

Technical specifications

Interface 24 × 10/100/1000 Mbps RJ45 port
Network media (cable lengths):
10BASE-TX: UTP Category 3, 4, 5 (100 m)
100BASE-TX: UTP Category 5, 5e (100 m)
1000BASE-TX: UTP Category 5e, 6 (100 m)
MAC address table 8K
Jumbo frame: 15 Kbytes
Buffer 4 Mbit
Packet forwarding rate: 35.71 Mpps
Bandwidth 48 Gbps
Input voltage AC 100–240 V, 50/60 Hz
Operating temperature: 0 °C ~ 40 °C
Storage temperature: -40 °C to 70 °C.
Operating humidity 10% ~ 90% RH (non-condensing)
Storage humidity: 5 % ~ 90 % RH (non-condensing)
Overvoltage protection: Differential mode ±2 kV, common mode ±4 kV
Electrostatic Standard (ESD): Contact ±6 kV, air ±8 kV
MTBF: 100,000 hours

Product type: Network RJ45 switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 24

Weight: 2.26 kg

Type: DN-80113-2

Factory colour: Black

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3455195 Digitus DN-80113-2 DN-80113-2 Network RJ45 switch 10 / 100 / 1000 MBit/s

Description

The Digitus DN-80113-2 unmanaged switch with 24 RJ45 ports is an advanced network solution that is that meets the demanding requirements of small to medium-sized companies. This powerful switch provides a seamless, secure network experience and ensures reliable and efficient data transfer across your network infrastructure. With robust functions and superior technology, the DN-80113-2 is the perfect supplement for each modern network.

This text is machine translated.
