Name: Digitus DN-93615-12 RJ45 module Keystone CAT 6A 1 pc(s)
Brand: Digitus
SKU: 3556304
Availability: InStock

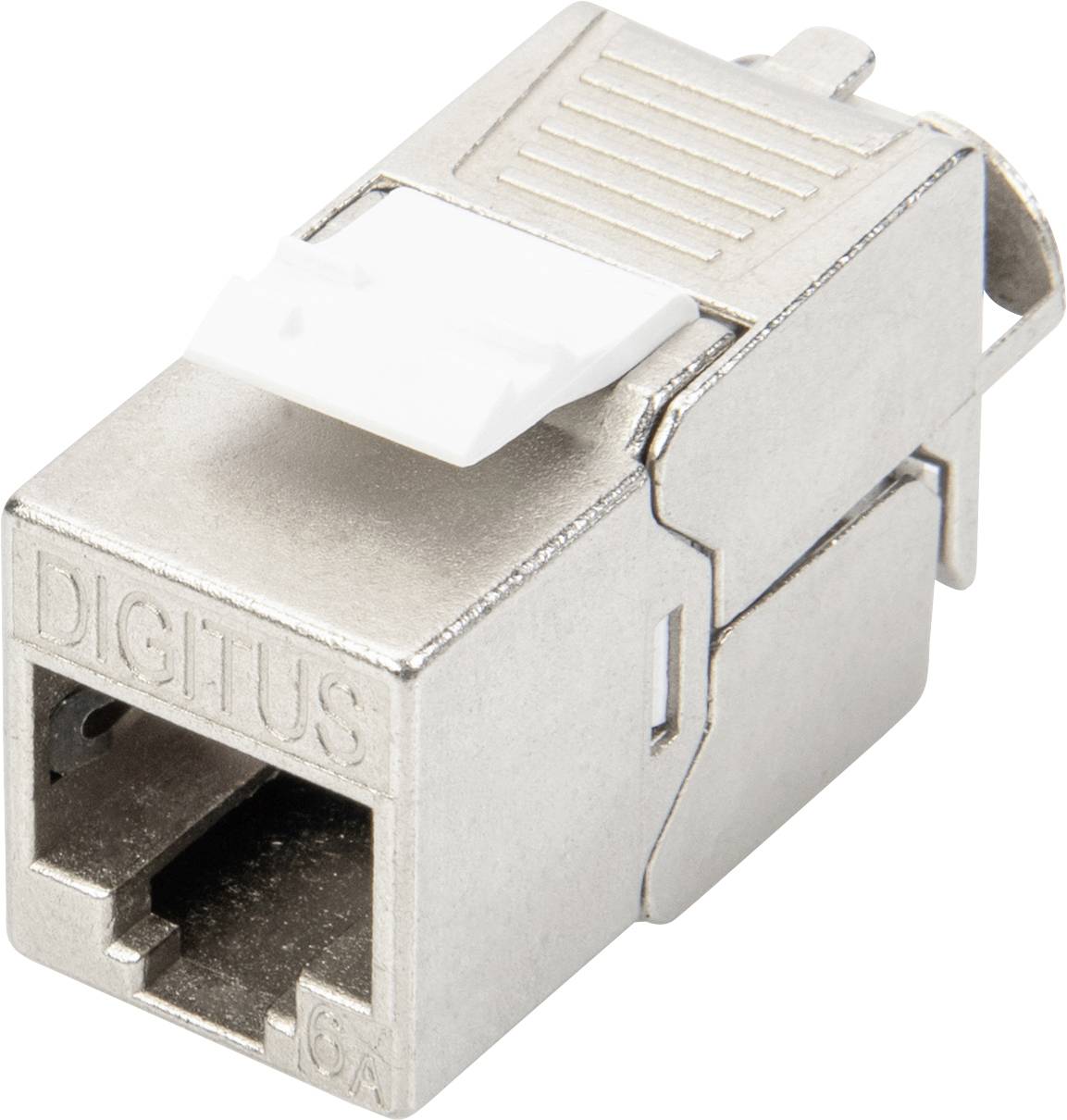

Modular network cable connector, labeled 'Digitus', featuring a metal casing with a white latch.

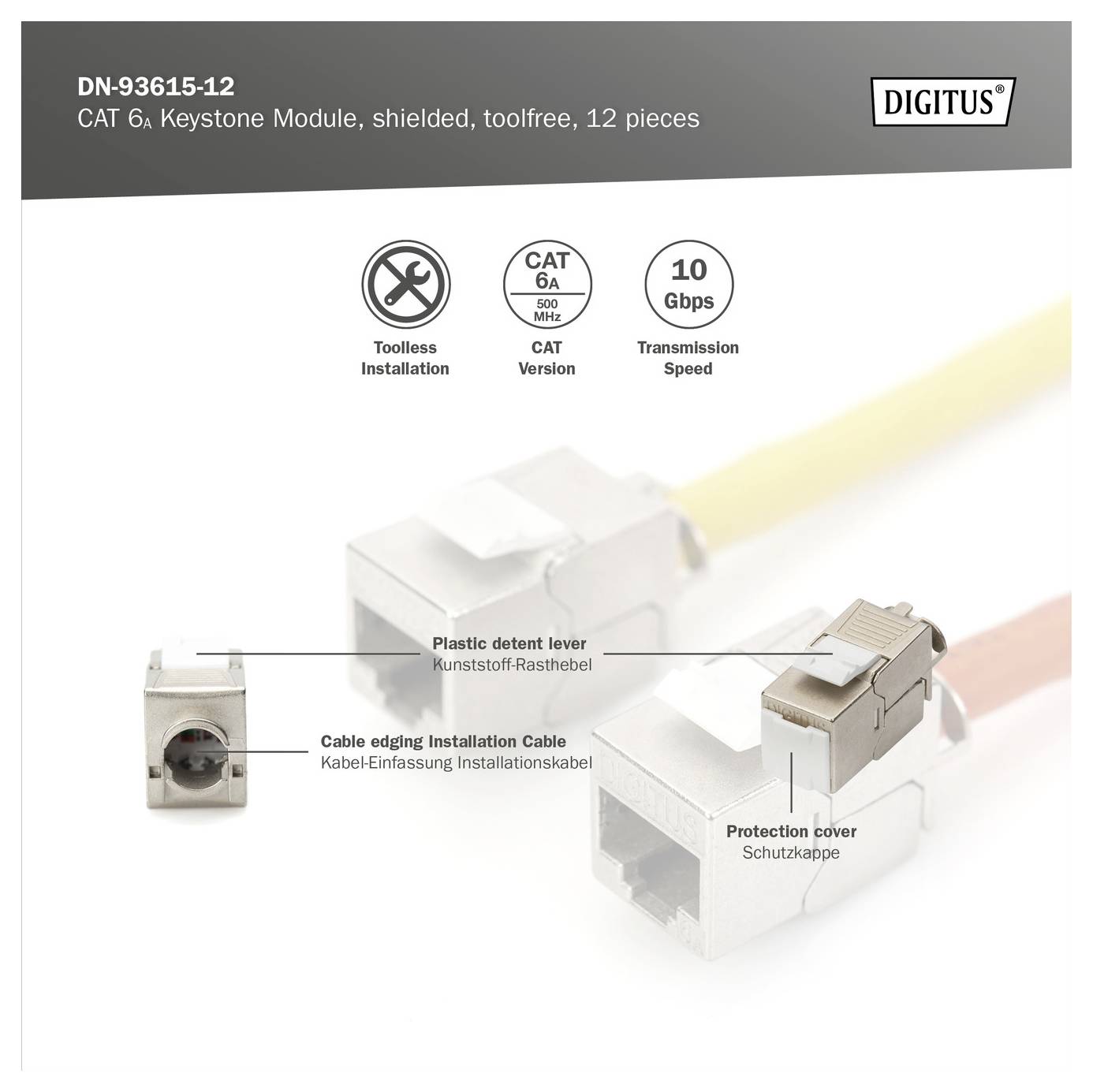

'Digitus CAT 6 Keystone Module, shielded, 12 pieces. Features toolless installation, CAT 6A 500 MHz standard, 10 Gbps transmission speed.'

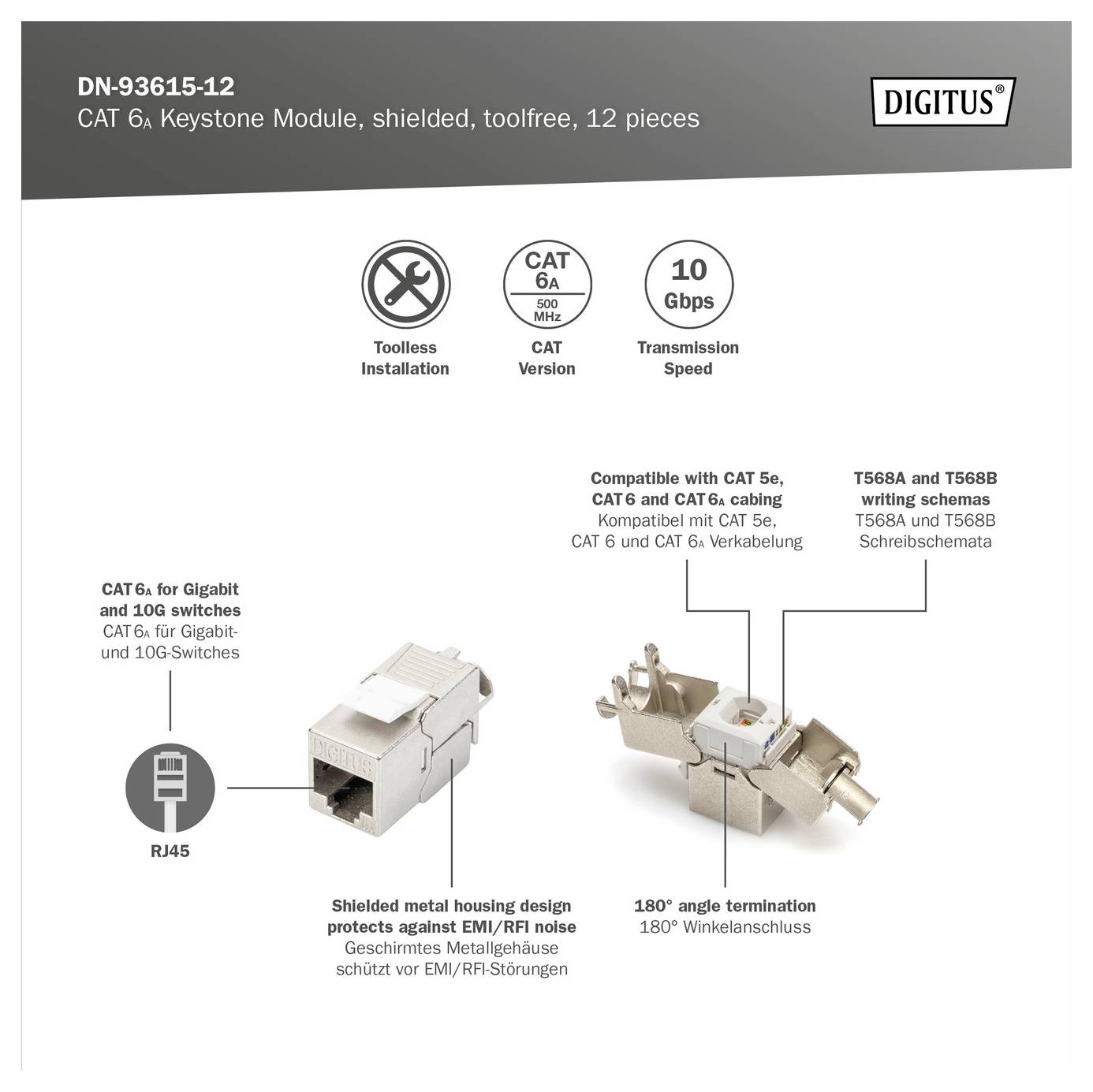

'CAT 6a Keystone Module, shielded, tool-free, 12 pieces. Toolless installation, 10 Gbps, shielded metal housing, 180° termination.'

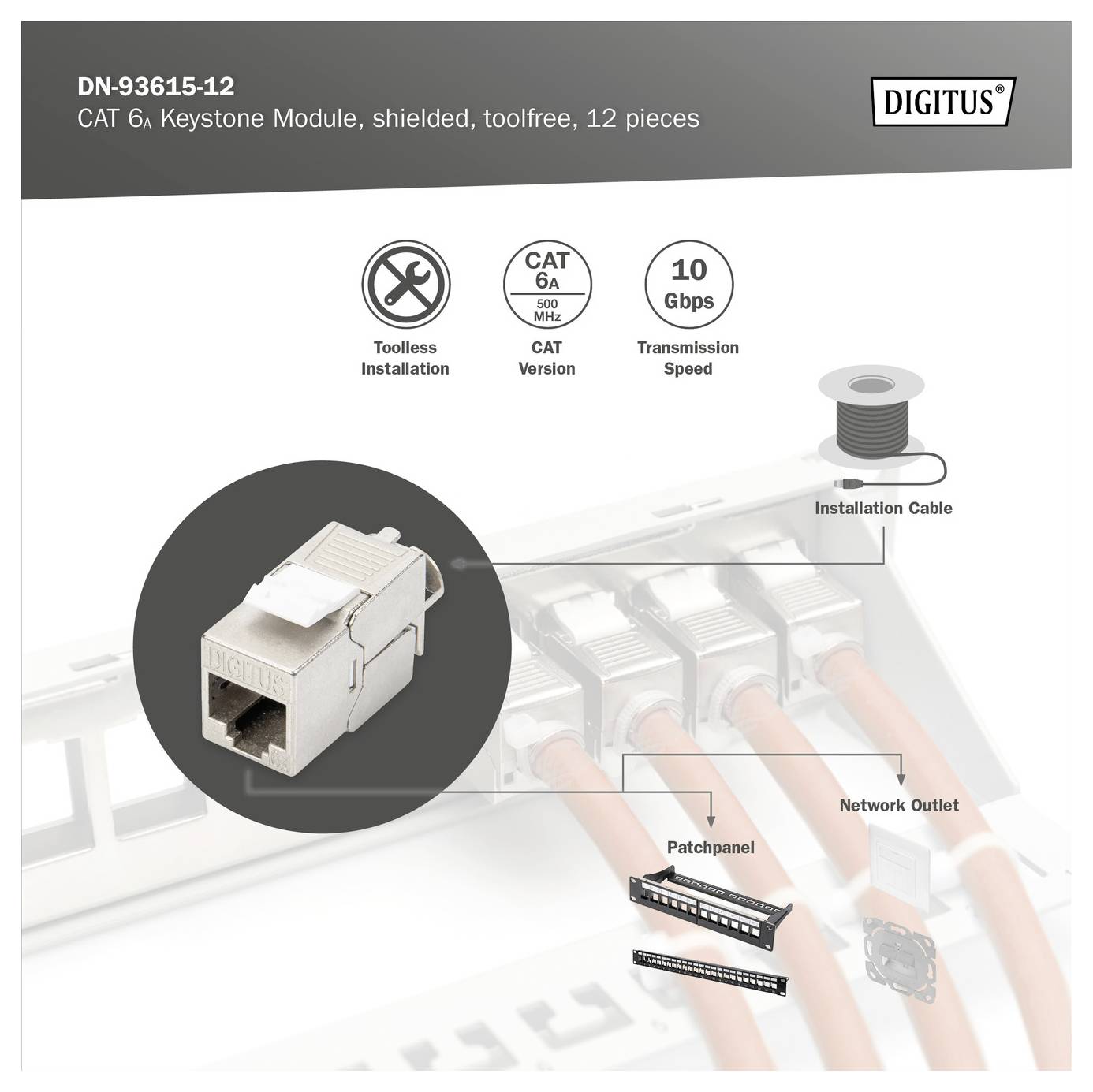

'Digitus CAT 6A Keystone Module, shielded, toolless installation, 10 Gbps speed. Includes installation cable, patch panel, network outlet.'

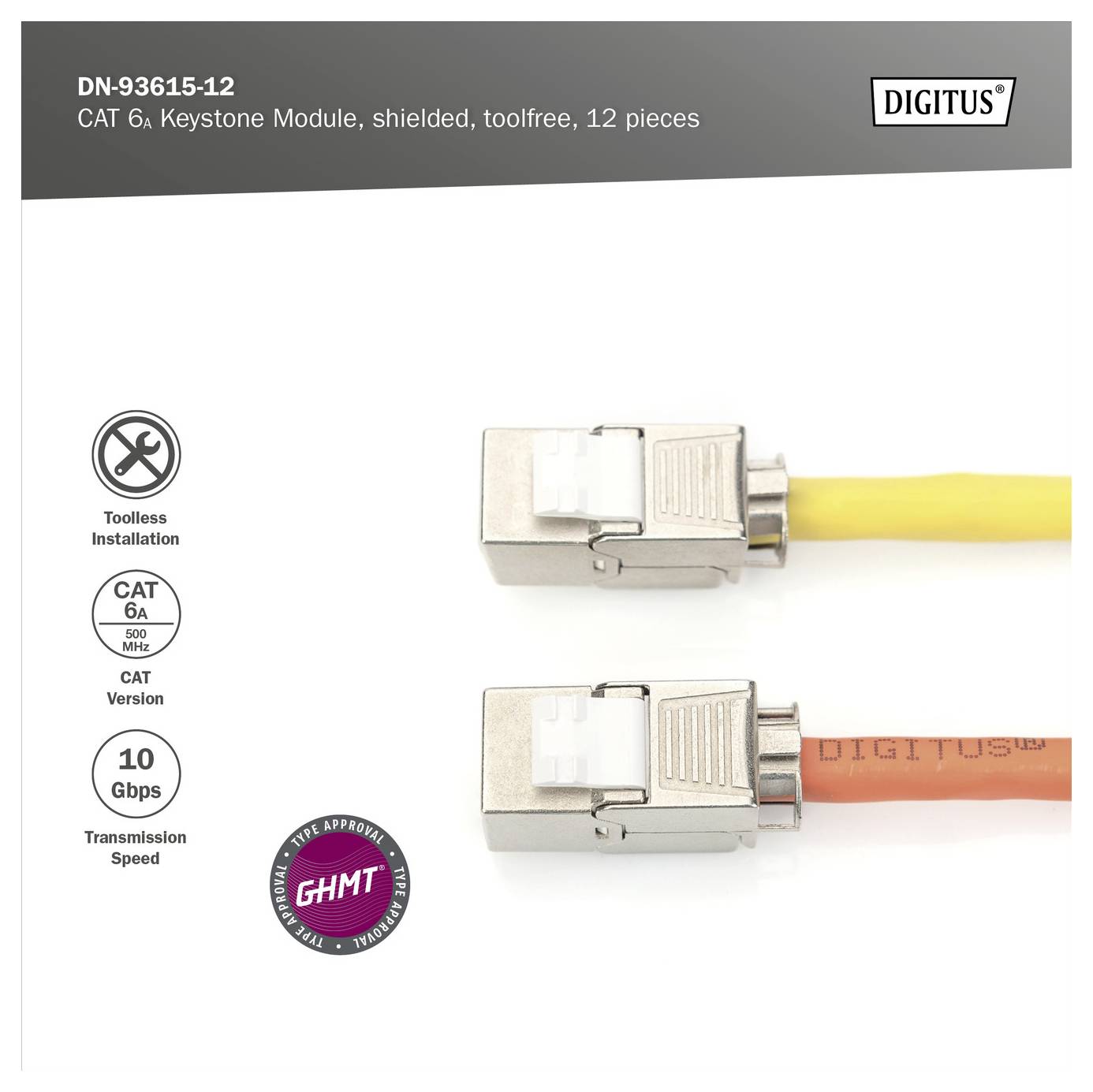

'CAT 6A Keystone Module, shielded, toolless, 12 pieces' image showing two connectors with yellow and orange cables. Key features include toolless installation, CAT 6A version, and 10 Gbps transmission speed.

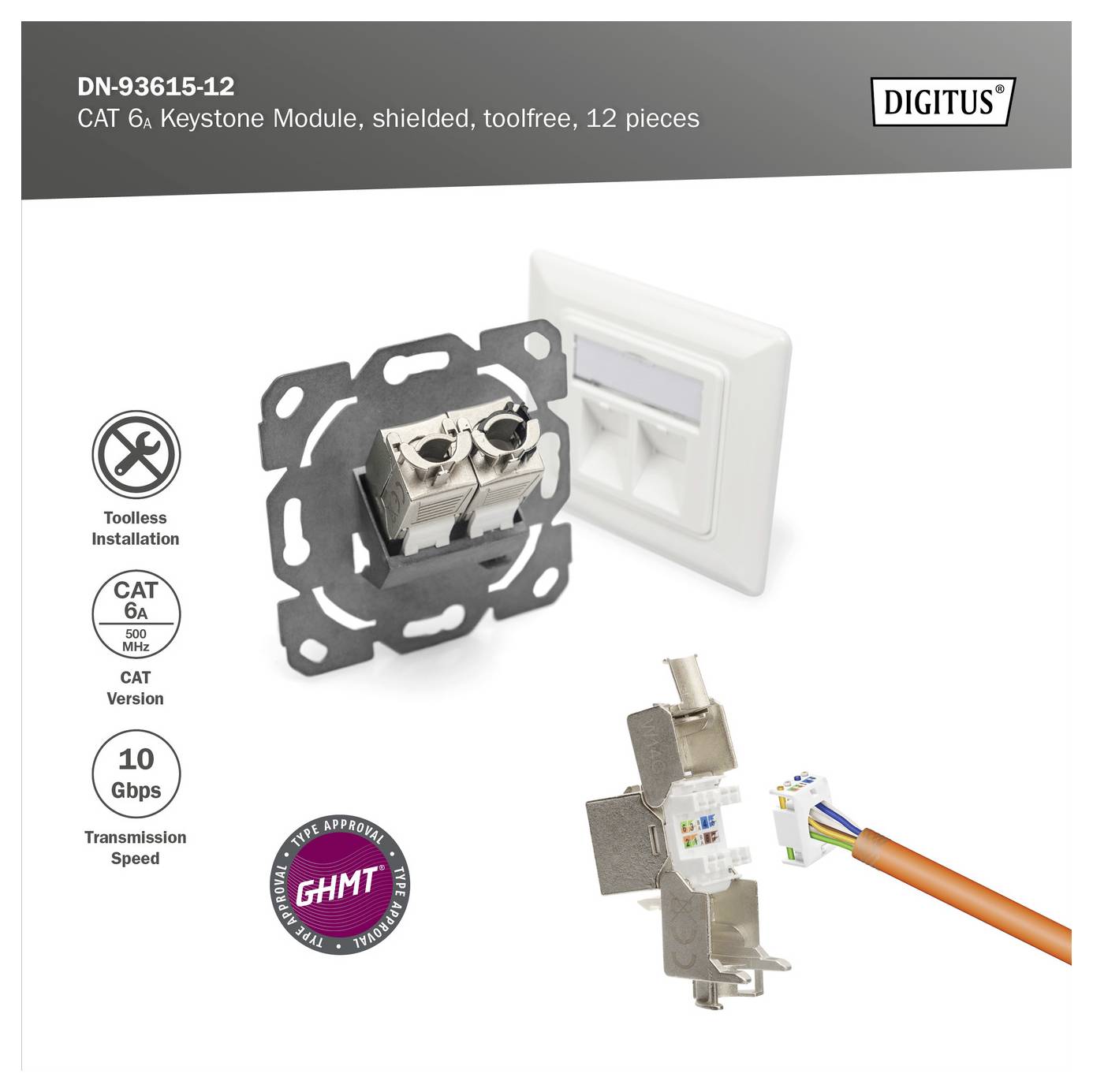

'Digitus CAT 6A keystone module, shielded, toolless installation, rated 10 Gbps. Includes 12 pieces.'

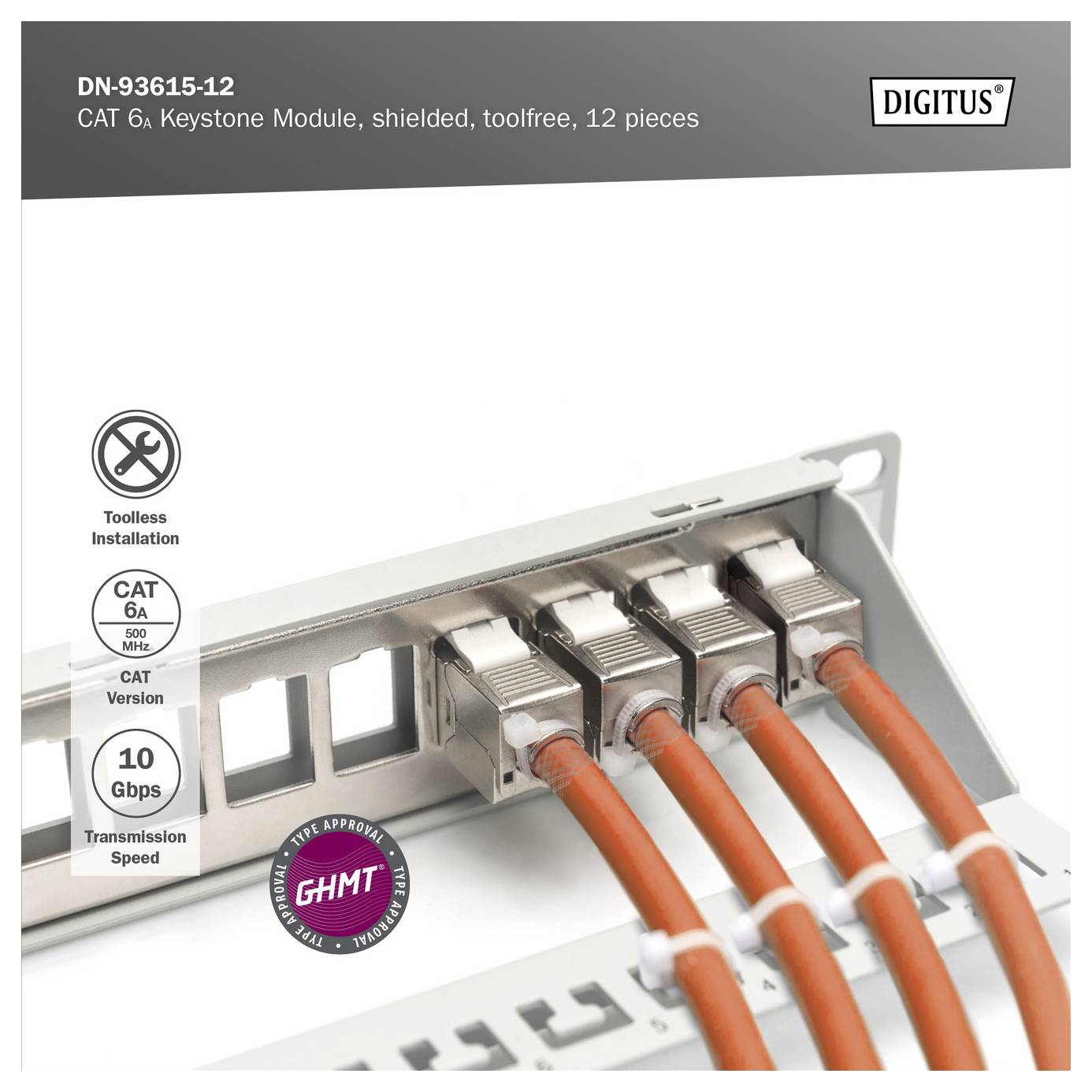

'Digitus DN-93615-12 CAT 6a Keystone Module, shielded, toolless, 12 pieces. Features orange cables and supports 10 Gbps transmission.'

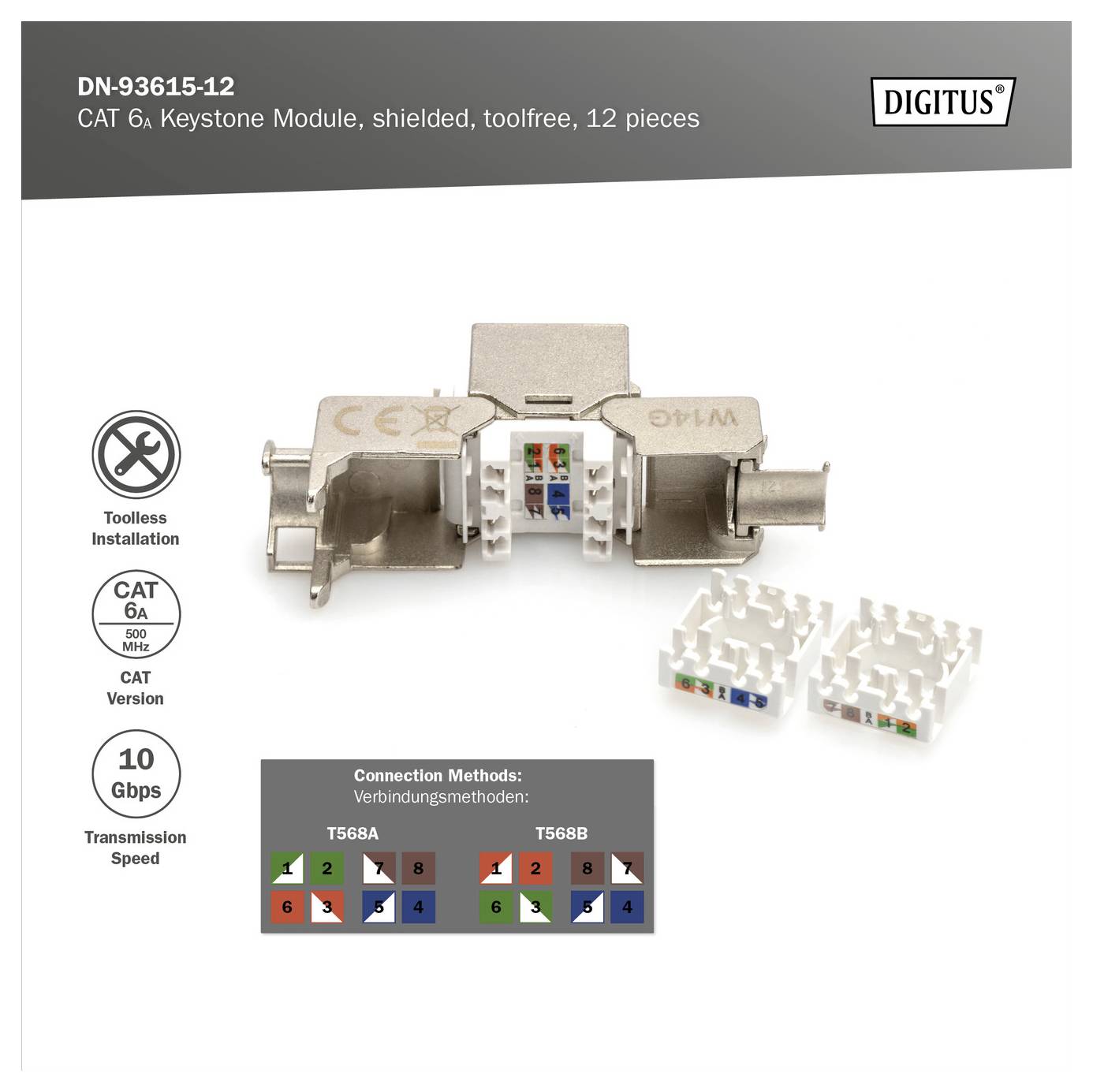

'Digitus DN-93615-12 CAT 6A, Keystone Module, shielded, toolless installation, 12 pieces. Two connection methods: T568A and T568B.'

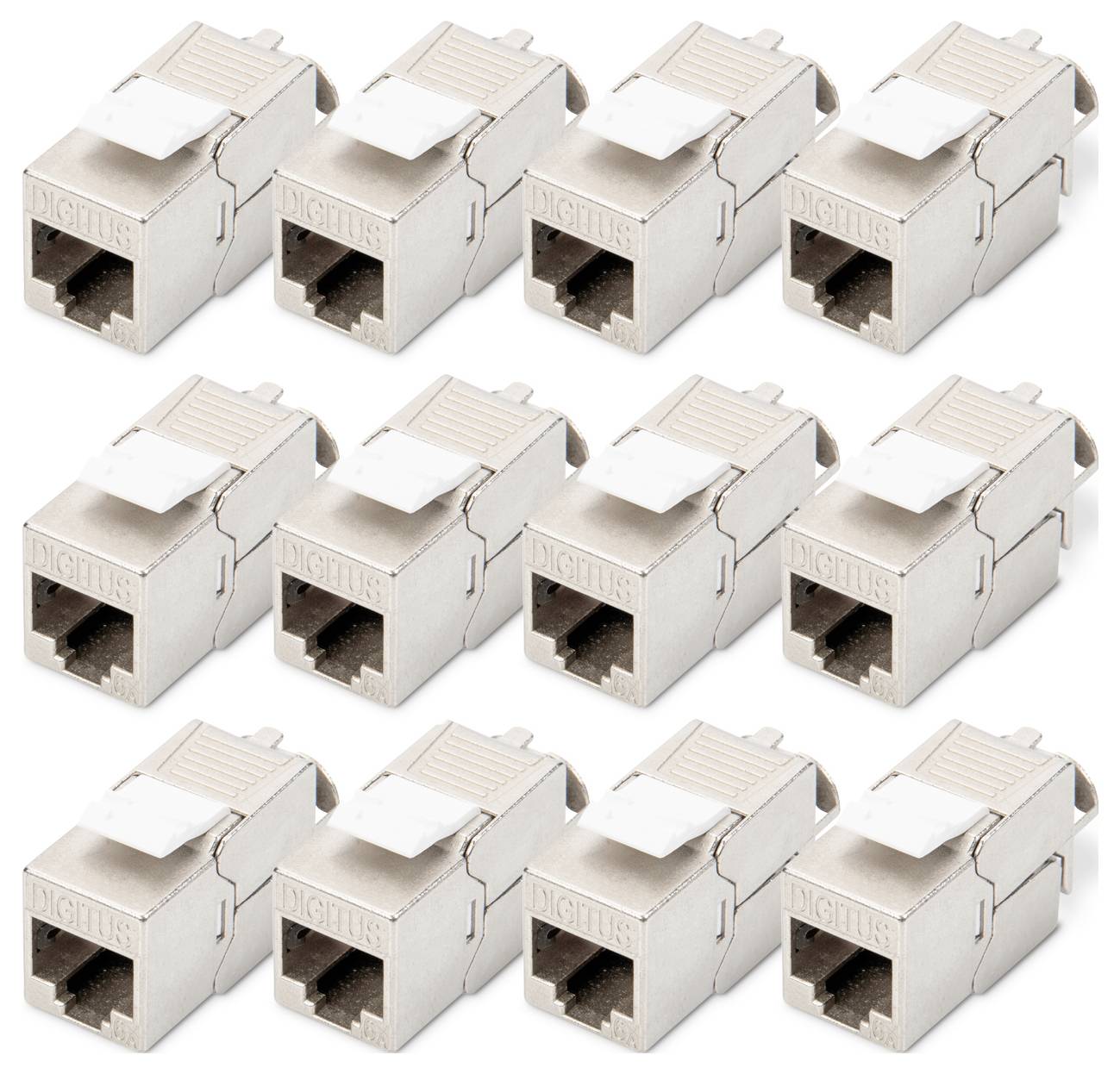

Twelve metal keystone jacks for network connections, arranged in three rows.

1/9

EAN:

Part number:

Item no:

Fast track dispatch on Fri 30 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 34.99 / piece)

€ 34.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digitus CAT 6A Keystone module, shielded, tool-free mounting - 12 pcs.

360° shield contacting
Suitable for field assembly (tool-free installation)
Designed - suitable for junction box and junction box mounting
CAT 6A with LSA-terminals
Dust cover for RJ45 socket
GHMT certified
Supported PoE standards: IEEE 802.3 AF/at/t - PoE, PoE+ (4PPoE in permanent link)

Technical specifications

Material RJ45-socket ABS UL 94V-0
Contact RJ45-socket: Nickel-plated phosphorus bronze, 0.5 μ gold-plated contact
RJ-45 shielding: Nickel-plated bronze
LSA-cutting terminal: Crown LSA+, UL 94V-2, galvanized phosphor bronze
FR4, UL 94V-0 CIRCUIT BOARD
Plug-in power 30 N max. (IEC 60603-7-5)
Tensile load: 7.7 kg between socket and plug
OPERATING TEMPERATURE -20° C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Plug-in cycle bush: 750 gem ISO / IEC 11801, IEC 60603-7-5
Terminal: 200 gem ISO / IEC 11801, IEC 60603-7-5
Wire holder 22-26 AWG solid and stranded conductor
Insulation resistance 500 MOhm
Contact resistance 20 Milliohm
Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)

Compatible with: Keystone

Product type: RJ45 module

: CAT 6A

Tool-free installation: Yes

Factory colour: Silver

Weight: 0.000

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Product type

Specification

Digitus DN-93615-12 RJ45 module Keystone CAT 6A 1 pc(s)

Item no:3556304

Fast track dispatch on Fri 30 Oct

2 Piece(s)Conrad Electronic

This article

RJ45 module

CAT 6A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

Digitus DN-93615-4 RJ45 module Keystone CAT 6A 4 pc(s)

Item no:3333830

Fast track dispatch on Fri 30 Oct

16 Set(s)Conrad Electronic

RJ45 module

CAT 6A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Digitus DN-93615-S RJ45 module Keystone CAT 6A 1 pc(s)

Item no:3385604

Fast track dispatch on Fri 30 Oct

98 Piece(s)Conrad Electronic

RJ45 module

CAT 6A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.49^*

Digitus DN-93617-4 RJ45 module Keystone CAT 6A 4 pc(s)

Item no:3333833

Fast track dispatch on Fri 30 Oct

4 Set(s)Conrad Electronic

RJ45 module

CAT 6A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Digitus DN-93631-5 RJ45 module Keystone CAT 6A 5 pc(s)

Item no:3333837

Available soon

Conrad Electronic

RJ45 module

CAT 6A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Digitus DN-93638 RJ45 module Network receptacle CAT 6A 1 pc(s)

Item no:3409882

Fast track dispatch on Fri 30 Oct

401 Piece(s)Conrad Electronic

RJ45 module

CAT 6A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.49^*

Digitus DN-93708-4 RJ45 module mount Keystone Unequipped 1 pc(s)

Item no:3385606

Fast track dispatch on Fri 30 Oct

1 Piece(s)Conrad Electronic

RJ45 module mount

Unequipped

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Digitus DN-93708-6 RJ45 module mount Keystone Unequipped 1 pc(s)

Item no:3385607

Fast track dispatch on Fri 30 Oct

14 Piece(s)Conrad Electronic

RJ45 module mount

Unequipped

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Digitus DN-93603-24 RJ45 module Keystone CAT 6 24 pc(s)

Item no:3333827

Unavailable

28 Set(s)Conrad Electronic

RJ45 module

CAT 6

Piece(s)

Minimum order quantity: 1

Multiple: 1

Digitus DN-93603-8 RJ45 module Keystone CAT 6 8 pc(s)

Item no:3333828

Unavailable

Conrad Electronic

RJ45 module

CAT 6

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556304 Digitus DN-93615-12 RJ45 module Keystone CAT 6A 1 pc(s)

Description

The shielded CAT 6A Keystone module set DN-93615 from Digitus® convinces with future-oriented standards and high-end quality for your network. The compact design permits a series installation in 483 mm (19") 1HE Panel. Tool-free installation takes place via LSA strips, color coded according to EIA/TIA 568 A&B. The compact design of the module also fits into a modular connector

This text is machine translated.

Features

Suitable for IEEE 802.3 AF/at/t - PoE, PoE+ (4PPoE in permanent link)
Suitable for junction box and junction box mounting
Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
Strain relief and cable fixing with the help of cable ties
Tool-free installation
Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B
Intelligent cable manager (resealable)

Description

Features

Suitable for IEEE 802.3 AF/at/t - PoE, PoE+ (4PPoE in permanent link)
Suitable for junction box and junction box mounting
Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
Strain relief and cable fixing with the help of cable ties
Tool-free installation
Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B
Intelligent cable manager (resealable)
