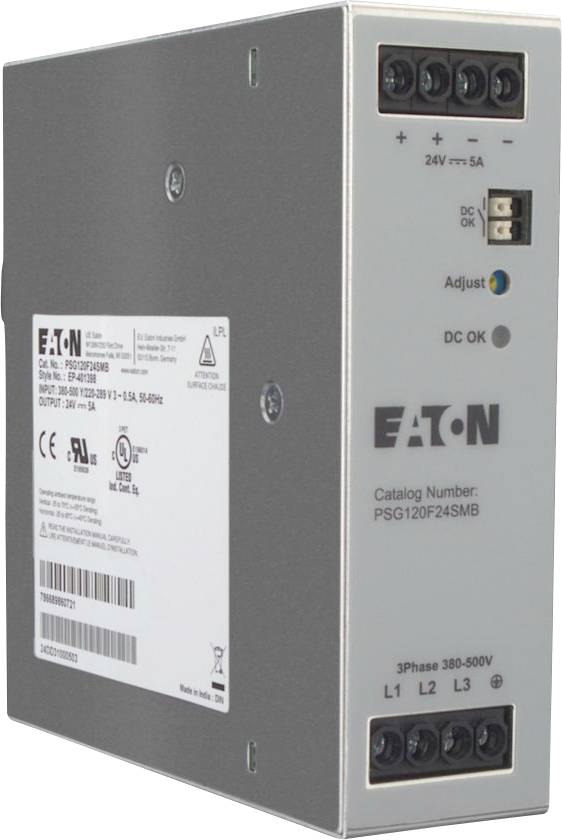

Eaton EP-401398 Power supply unit 24 V 5 A 140 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 189.99 / piece)
€ 189.99
incl. VAT
14-day return policy included
Highlights & Details
Power supply, three-phase, 320 - 575 V AC / 24 V DC, 5 A
- Output 24 V / 5 A
- Power 140 W
- Screws
Technical specifications
- Type
Three phases
- Product type
Power supply unit
- Input voltage (max.)
575 V
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Min. input voltage
320 V
- Dim
(L x W x H) 124 x 38 x 125.3 mm
- Output voltage (max.)
24 V
- Connection
Screws
140 W
- Input frequency
50/60 Hz
IP20
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Operating temperature
-25 °C - 70 °C
- Weight
0.54 kg
- Width
38 mm
- Height
125.3 mm
- Length
124 mm
- Type
PSG120F24SMB
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3553266 Eaton EP-401398 Power supply unit 24 V 5 A 140 W
User & Safety Instructions
User & Safety Instructions 3553266 Eaton EP-401398 Power supply unit 24 V 5 A 140 W
Description
Features
- Inaccessible internal input fuse (T3,15 AH/500 V, 600 V) for device protection
