Name: econ solutions econ sens3 - 3000A econ sens3 - 3000A Electricity meter (3-phase) incl. converter jack 1 pc(s)
Brand: econ solutions
SKU: 1372455
Availability: InStock

A white and green electronic device with multiple cables, likely a sensor or measuring instrument. It has labels: Pwr, Err, Log.

Measuring device screen displaying voltage, current, power, frequency data and graphics showing phase distribution and voltage waveforms.

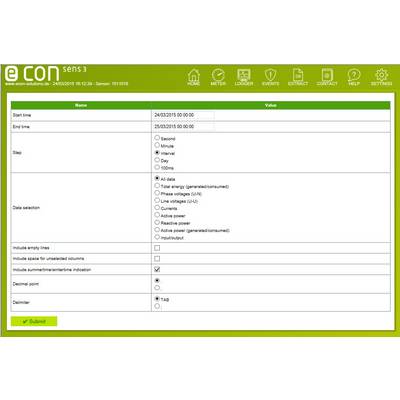

Start and end time fields, step setting, file selection, export options such as delimiter and decimal point, "Submit" button.

'Diagram of electricity consumption data from 24.03.2015, with lines for consumption and generation. Table shows hourly data for March.'

1/4

Product type

Electricity meter (3-phase) incl. converter jack

Dim

(W x H) 22.5 mm x 9.9 mm

Display

Web-based

Operating voltage

230 V AC

Accuracy

1 %

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,505.00 / piece)

€ 1,505.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

1- to 3-phase energy meter with web interface

Multi-function meter with flexible current transformers
Measuring range up to 3000 A
Integrated Web interface
Integrated SD card for data logging
Installation possible during operation
Power quality analysis acc. to EN 50160 with evaluation up to the 100th harmonics (option)
4 in-/outputs to integrate additional meter and sensors (option)

Technical specifications

Current range: 3 to 3000 A
1-, 2- oder 3-phase systems
Field of application: Two-, Three- and Four wire -TN-, TT- and IT-wire systems
Measuring accuracy +/- 1% (of displayed value)

Product type: Electricity meter (3-phase) incl. converter jack

Dim: (W x H) 22.5 mm x 9.9 mm

Display: Web-based

Operating voltage: 230 V AC

Accuracy: 1 %

Reading type: Energy consumption

Width: 22.5 mm

Height: 9.9 mm

Current (max.): 3000 A

Current (min.): 3 A

Current range: 3 up to 3000 A

Type: econ sens3 - 3000A

Effective current range: 3 bis 3000 A

Connections: Impulse
Analogue signals
Modbus TCP
Modbus RTU
Web Interface
Econ 3.0 direct integration
Pulse and analog inputs (optional)

Power supply (details): 230 V/AC

Documents & Downloads

Datasheet

Datasheet 1372455 econ solutions econ sens3 - 3000A econ sens3 - 3000A Electricity meter (3-phase) incl. converter jack 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1372455 econ solutions econ sens3 - 3000A econ sens3 - 3000A Electricity meter (3-phase) incl. converter jack 1 pc(s)

Information

Information 1372455 econ solutions econ sens3 - 3000A econ sens3 - 3000A Electricity meter (3-phase) incl. converter jack 1 pc(s)

Description

Multi-function meter for easy, quick installation and immediate recording of power, current and voltage data. For easy evaluation and analysis of measurement data the econ sens3 is equipped with an integrated Web interface. Access is quick and easy via your Internet browser without installing additional software. The measured values are stored in different temporal resolutions of the second to daily, weekly and monthly data on the internal memory card.
Core functions and characteristics of the econ sens3:
Easy installation on standard DIN rail
Measurement of electric power, energy and other variables in the indirect measurement method Uninterrupted installation possible
Ideal for installation in existing plants and distributions
It is capable to measure 1-, 2- or 3-phase wire systems
Rogowski coils for current measurement range up to 3000 A
Integrated web interface for direct evaluation and analysis
Optional: PRO upgrade for network analysis and network quality monitoring
Optional: LOG upgrade for data logger function to connect up to 4 additional measuring devices with digital and analog interfaces
