Buy econ solutions econ sens3 - 400A econ sens3 - 400A Electricity meter (3-phase) incl. converter jack 1 pc(s)

A white, rectangular device with a green display, connected to several black cables. The display shows four LED lights.

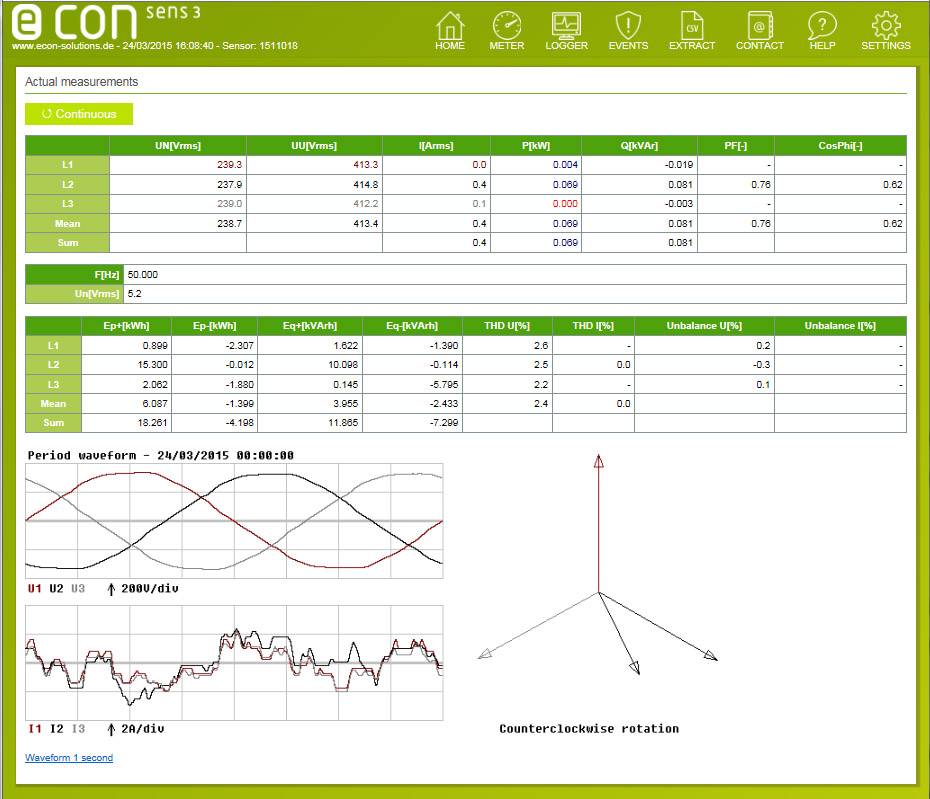

'Measurement data dashboard with overview tables for voltage, current, power, frequency and balance; diagrams for periodic waveforms and vector rotation.'

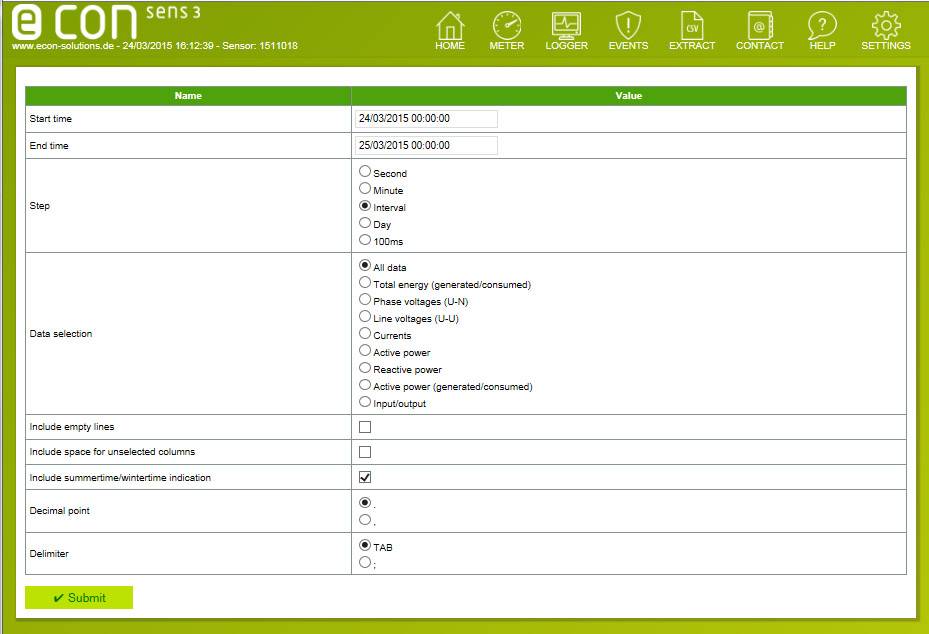

Form for selecting date and time for data query with fields for start and end time, and options for data categories.

The image shows a screenshot of a diagram for electricity consumption and generation on 24/03/2015. Below this is a table with hourly consumption data and an overview for March. The months are listed on the left, with total costs shown on the right.

1/4

Product type

Electricity meter (3-phase) incl. converter jack

Dim

(W x H) 22.5 mm x 9.9 mm

Display

Web-based

Operating voltage

230 V AC

Accuracy

1 %

Fast track dispatch on Fri, 11 Sep

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,189.08 / piece)

€ 1,189.08

plus VAT.

Report legal concerns

Highlights & Details

1- to 3-phase energy meter with web interface

Multi-function meter with flexible current transformers
Measuring range up to 400 A
Integrated Web interface
Integrated SD card for data logging
Installation possible during operation
Power quality analysis acc. to EN 50160 with evaluation up to the 100th harmonics (option)
4 in-/outputs to integrate additional meter and sensors (option)

Technical specifications

1-, 2- oder 3-phase systems
Field of application: Two-, Three- and Four wire -TN-, TT- and IT-wire systems
Measuring accuracy +/- 1% (of displayed value)

Product type: Electricity meter (3-phase) incl. converter jack

Dim: (W x H) 22.5 mm x 9.9 mm

Display: Web-based

Operating voltage: 230 V AC

Accuracy: 1 %

Reading type: Active energy

Width: 22.5 mm

Height: 9.9 mm

Current (max.): 400 A

Current (min.): 3 A

Current range: 3 up to 400 A

Type: econ sens3 - 400A

Effective current range: 3A bis 400A A

Connections: Impulse
Analogue signals
Modbus TCP
Modbus RTU
Web Interface
Econ 3.0 direct integration
Pulse and analog inputs (optional)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1372454 econ solutions econ sens3 - 400A econ sens3 - 400A Electricity meter (3-phase) incl. converter jack 1 pc(s)

Information

Information 1372454 econ solutions econ sens3 - 400A econ sens3 - 400A Electricity meter (3-phase) incl. converter jack 1 pc(s)

Description

Multi-function meter for easy, quick installation and immediate recording of power, current and voltage data. For easy evaluation and analysis of measurement data the econ sens3 is equipped with an integrated Web interface. Access is quick and easy via your Internet browser without installing additional software. The measured values are stored in different temporal resolutions of the second to daily, weekly and monthly data on the internal memory card.
Core functions and characteristics of the econ sens3:
Easy installation on standard DIN rail
Measurement of electric power, energy and other variables in the indirect measurement method Uninterrupted installation possible
Ideal for installation in existing plants and distributions
It is capable to measure 1-, 2- or 3-phase wire systems
Rogowski coils for current measurement range up to 400 A
Integrated web interface for direct evaluation and analysis
Optional: PRO upgrade for network analysis and network quality monitoring
Optional: LOG upgrade for data logger function to connect up to 4 additional measuring devices with digital and analog interfaces
