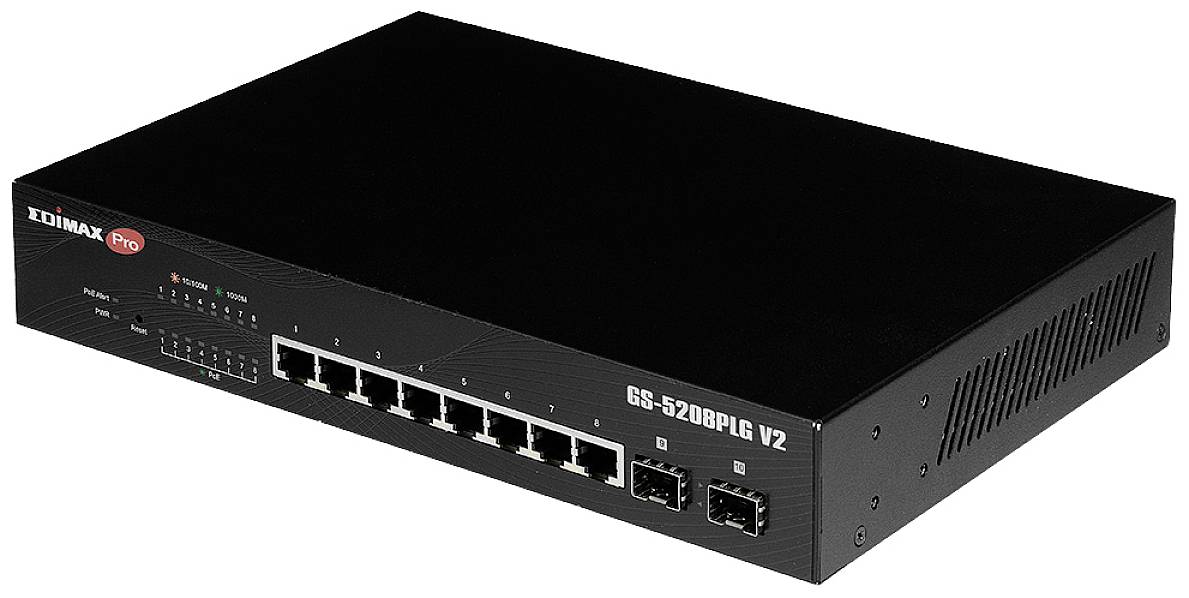

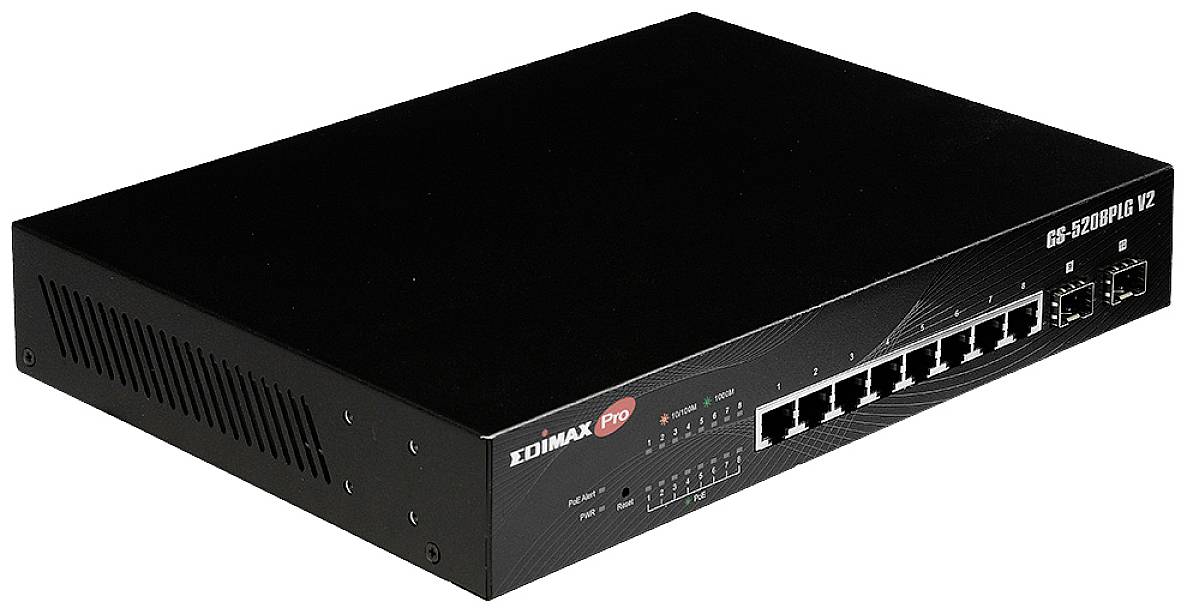

Edimax 10-port Gigabit PoE+ with 2 SFP slots Web smart switch ( 85 watt)
Highlights & Details
- 8 Gigabit Ethernet PoE+ ports and 2 Gigabit SFP uplink portsCompliant with IEEE 802.3af/at PoE/PoE+Up to 30W per port (total power budget: 85W) for powering PoE-enabled devices
Technical specifications
- Product type
Network switch
- Working principle
Managed switch
- Ethernet ports
8
- SFP ports
2 x
- 10/100/1000 Mbps ports
8 x
- Jumbo frames
Yes
- Power supply (LOV)
mains-powered
- Weight
1.42 kg
- Width
265 mm
- Height
44 mm
- Depth
184 mm
- Type
GS-5208PLG V2
- Interfaces
Gigabit LAN (1 Gbps)
SFP
- Factory colour
Black
- Operating voltage
230 V
- Current consumption

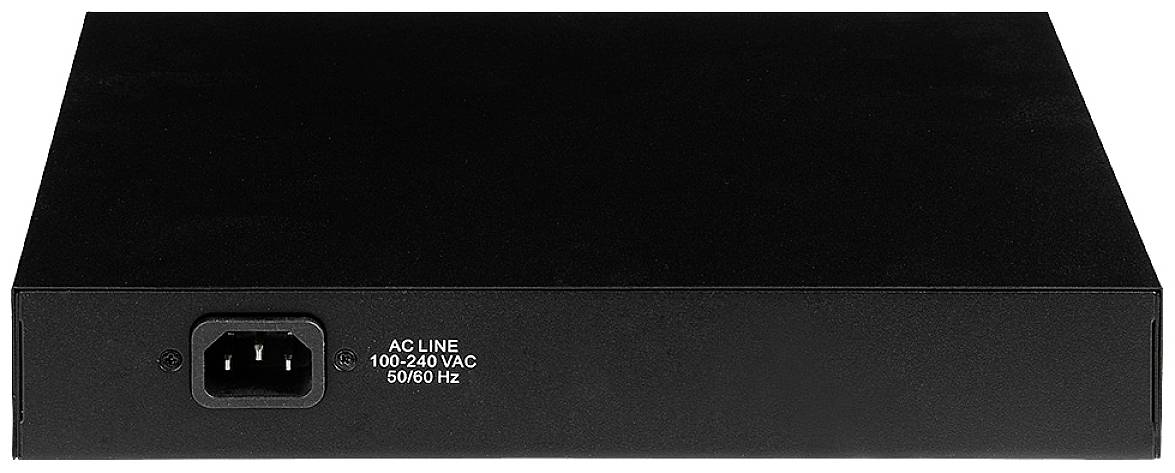

100-240V AC, 50-60 Hz
- Max. ambient temperature
70 °C
- Min. ambient temperature
-40 °C
- Port
8 + 2 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2586162 EDIMAX GS-5208PLG V2 GS-5208PLG V2 Network switch 8 + 2 ports
User & Safety Instructions
User & Safety Instructions 2586162 EDIMAX GS-5208PLG V2 GS-5208PLG V2 Network switch 8 + 2 ports
Conformity certificate
Conformity certificate 2586162 EDIMAX GS-5208PLG V2 GS-5208PLG V2 Network switch 8 + 2 ports
Description
This text is machine translated.
Features
- PoE-long distance up to 200 metersAutomatic detection of power consumers and power consumptionAutomatic fault detection for over/under current and over/under voltage20 Gbps switching capacity and 14.88Mpps forwarding rate4K MAC address table and 9KB jumbo frameSupports QoS, 802.1Q VLAN, IPv4/IPv6, port trunking, port mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.19" rack mounting, including rack mounting kit
