Name: EDIMAX IGS-5654PLX IGS-5654PLX Industrial Ethernet switch 54 ports 10 / 100 / 1000 MBit/s PoE
Brand: EDIMAX
SKU: 3164389
Availability: BackOrder

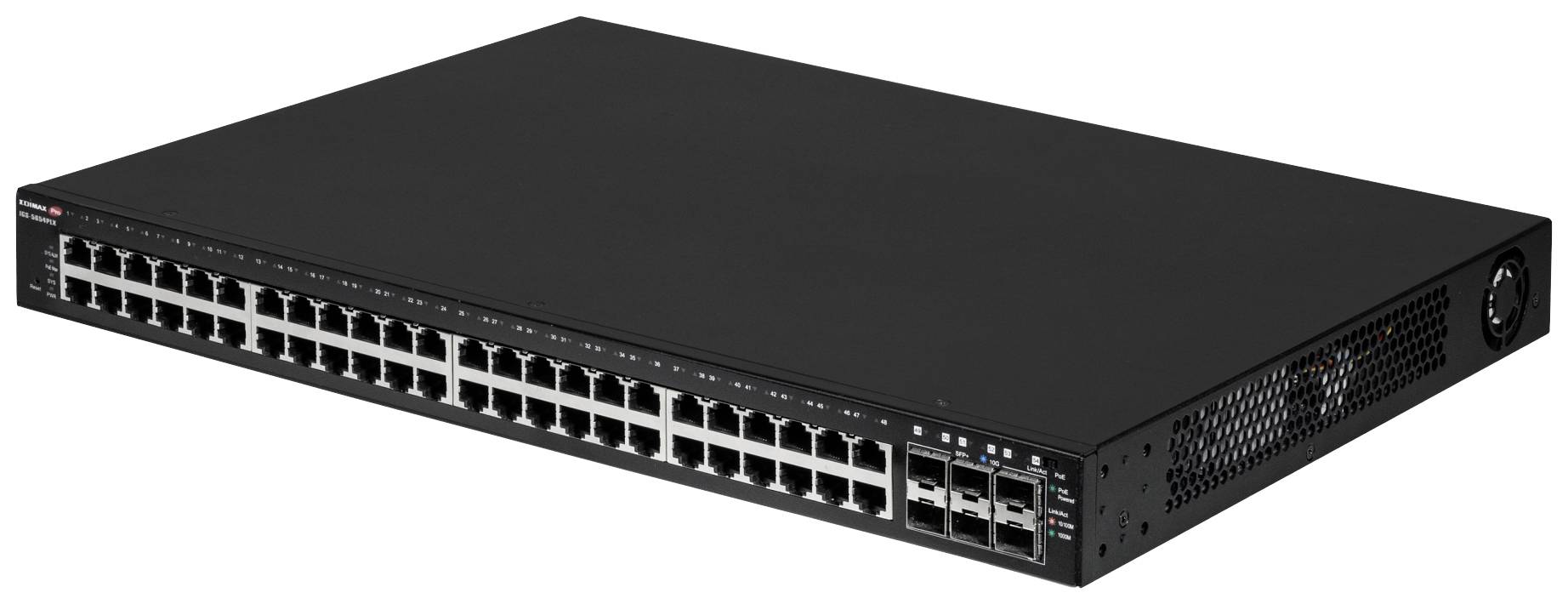

A black network switch with 48 Ethernet ports and 4 SFP ports. Suitable for deployment in large IT infrastructures.

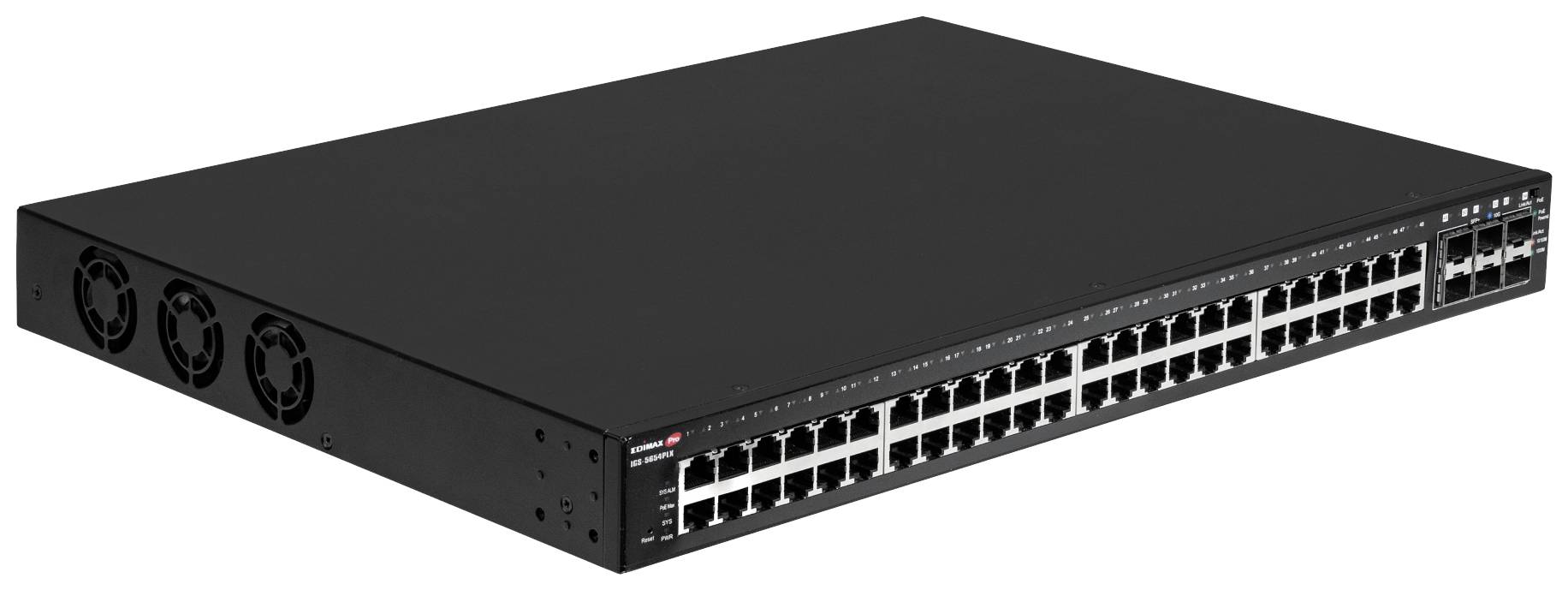

A black network switch with 48 Ethernet ports and fans on the side, suitable for deployment in large networks.

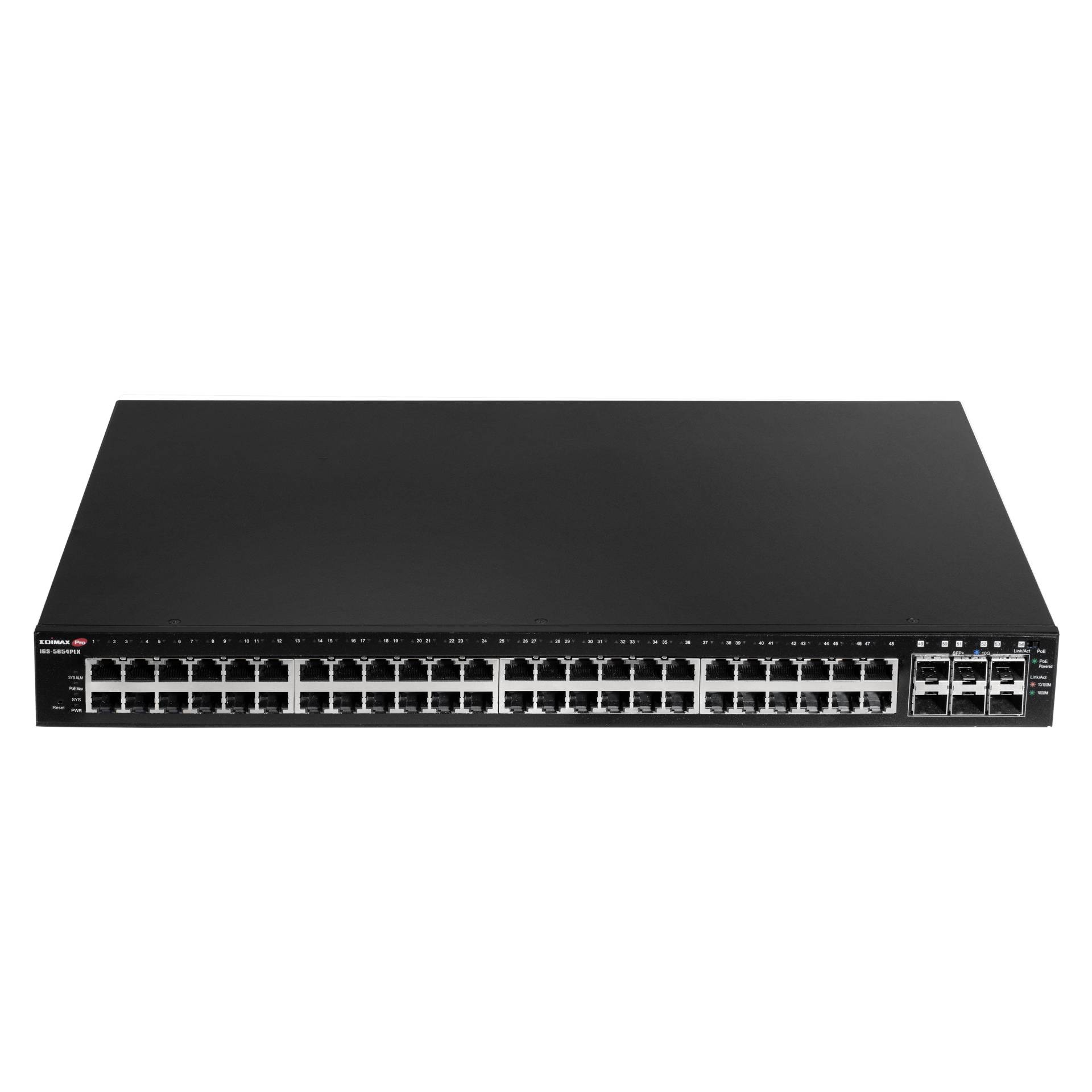

A black network switch with multiple ports on the front, suitable for managing data connections in an IT network.

A black network switch without visible logos or labels. On the front panel are ports and two switches.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,429.00 / piece)

€ 1,429.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

EDIMAX IGS-5654PLX Industrial VLAN 54-port Gigabit PoE+ Web Smart switch with 6 10GbE SFP+ ports for surveillance purposes

48 Gigabit Ethernet PoE+ ports and 6 10GbE SFP+ ports
Wide operating temperature range from -20° to +65° C for industrial or extreme environments
The dual PoE power budget delivers up to 800 W in classic mode and 400 W in industrial mode (standard)
Create a Surveillance VLAN with one click and automatically detect and integrate all the devices
Specific intelligent heat controller to control the fan speed for power saving and noise reduction
Alive check of PoE-supplied devices to improve the reliability of the network
Dual power supply and dual firmware image for robust failure protection mechanisms
Guaranteed PoE-long distance of up to 200 meter
Provide back-up protection in order not to damage the PoE ports
IP surveillance VLAN and voice VLAN for improving video and voice quality
DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
IEEE 802.3af/at PoE compliant, up to 30W PRP port (total power consumption 800W or 400W) to power PoE-enabled devices
Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, port trunking, Port mirroring, IGMP v1/v2/v3 Snooping etc.
Supports 216 Gbps backplane bandwidth, 160.7 Mpps forwarding speed, 32 MAC address table and 12KB Jumbo frames

Technical specifications

Product type: Industrial Ethernet switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

SFP+ ports: 6 x

10/100/1000 Mbps ports: 48 x

Port type: 48 x RJ45 PoE+ 10/100/1000Base-T Gigabit ports
6 x SFP+ 10GBASE-X 10 Gigabit uplink ports
1 x RJ45 console port (including console cable)

Jumbo frames: Yes

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 32000

Weight: 5.6 kg

Width: 441 mm

Height: 44 mm

Depth: 330 mm

Type: IGS-5654PLX

Interfaces: RJ45
SFP+

Factory colour: Black

Operating voltage: 240 V

Max. ambient temperature: 65 °C

Min. ambient temperature: -20 °C

Port: 54 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3164389 EDIMAX IGS-5654PLX IGS-5654PLX Industrial Ethernet switch 54 ports 10 / 100 / 1000 MBit/s PoE

User & Safety Instructions

User & Safety Instructions 3164389 EDIMAX IGS-5654PLX IGS-5654PLX Industrial Ethernet switch 54 ports 10 / 100 / 1000 MBit/s PoE

Conformity certificate

Conformity certificate 3164389 EDIMAX IGS-5654PLX IGS-5654PLX Industrial Ethernet switch 54 ports 10 / 100 / 1000 MBit/s PoE

Description

Industrial, durable power network
Wide temperature range
The switch can be operated in a broad temperature range of -20° to +65° C in extreme environments and is characterized by an especially long life.

Quick InstallationAutomatically created monitoring VLAN
Create a Surveillance VLAN with one click and automatically detect and integrate all the devices

No more uplink bottlenecks
With 6 10GbE SFP+ ports for up to 60 Gbps speed and the ability to extend fiber-optic uplinks over long distances, the switch eliminates network bottlenecks and provides the connectivity you need to your devices.

Stable network
The switch, equipped with dual power supplies, continues to provide 400W in the event of one of the two power supplies failure to maintain the network without system shutdown.

Reliable network
The switch has two stored firmware. The additional backup firmware can be activated while the main firmware is restored, which reduces system downtime.

Intuitive and powerfulLayer 2 management smart tool
This web smart switch meets the growing need for networks with advanced basic functions with layer 2 management such as: SNMP v1/v2c/v3, access control list (ACL), QoS, CoS, STP, 802.1Q VLAN, Link aggregation, broadcast storm control, loop detection/prevention, IPv4/IPv6, port trunking, Port mirroring. To further optimize the performance of corporate networks.

For harsh environments in IoT and Smart City
An ideal solution for industrial networks in areas such as automotive, factory automation, oil and gas, mining, military, Transportation, substations, power and outdoor applications of railways, roads, tunnels, Smart cities, urban and traffic monitoring.

This text is machine translated.
