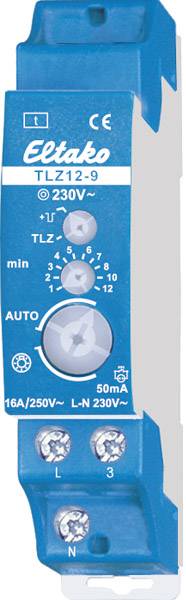

Eltako 23100934 TDR Flush mount 230 V AC
EAN:
Part number:
Item no:
Product type
TDR
Nominal voltage
230 V AC
Mounting type
Flush mount
Nominal current
16 A
Type
SPST-NO
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 0.95
€ 23.41
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Highlights & Details
TDR
- Time range up to 12 minutes
- Double connection terminals
- Your own constant light switch
Technical specifications
- Product type
TDR
- Nominal voltage
230 V AC
- Nominal current
16 A
- Mounting type
Flush mount
- Type
SPST-NO
- Dim
(L x W x H) 65 x 20 x 83 mm
- Width
20 mm
- Height
83 mm
- Depth
70.0000 mm
- Factory colour
Multicolour
- Length
65 mm
- Contact type
1 maker
- No. of partitions
1
- Type
TLZ12-8
- Time setting range
, 12 min
- Operating voltage
230 V/AC
- Weight
860 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1313647 Eltako 23100934 TDR Flush mount 230 V AC
Description
1 closing contact not isolated 16 A/250 V/AC, incandescent bulbs up to 2000 W, ESL and LED-lamps up to 100 W, without switch-off pre-warning. By-Verlust of only 0.7 W. series mounting device for rail mounting DIN EN 60715 TH35. 1 division unit = 18 mm wide, 58 mm deep.
The noiseless electronics bothered not the Prioritises ndlichste ear - completely contrary to many synchronous motors with mechanical transmission. Control-, supply and switching voltage 230 V. Time Setting approx. 0.2 to 12 minutes. Glow lamp current up to 50 mA, depending on the starting voltage of the glow lamps. Your own constant light switch with the big rotary switch. For 3- and 4-wire circuits, Resetteable, with roof floor lighting for 4-wire circuit. Automatic detection of the type of connection. Without switch-off pre-warning and contact switching in the zero crossing. With double connections for buttons and lamp, so that either the top and bottom or bottom only can be connected.
This text is machine translated.
The noiseless electronics bothered not the Prioritises ndlichste ear - completely contrary to many synchronous motors with mechanical transmission. Control-, supply and switching voltage 230 V. Time Setting approx. 0.2 to 12 minutes. Glow lamp current up to 50 mA, depending on the starting voltage of the glow lamps. Your own constant light switch with the big rotary switch. For 3- and 4-wire circuits, Resetteable, with roof floor lighting for 4-wire circuit. Automatic detection of the type of connection. Without switch-off pre-warning and contact switching in the zero crossing. With double connections for buttons and lamp, so that either the top and bottom or bottom only can be connected.
This text is machine translated.
