Name: ABB 2CDE110000R0501 TDR DIN rail 230 V
Brand: ABB
SKU: 2326442
Availability: InStock

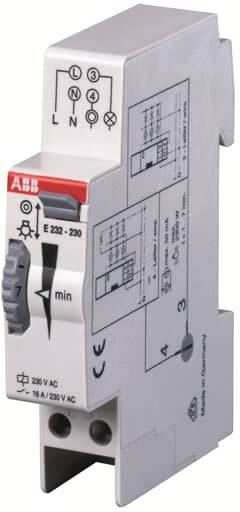

Electrical relay with switching diagram, rotary controller, and connection terminals. Labelled with voltage: '230 V AC', '16 A'.

Product type

TDR

Nominal voltage

230 V

Mounting type

DIN rail

Nominal current

150 A

Dim

(W x H x D) 100 x 50 x 59 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

17 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: TDR

Nominal voltage: 230 V

Nominal current: 150 A

Mounting type: DIN rail

Dim: (W x H x D) 100 x 50 x 59 mm

Width: 100 mm

Height: 50 mm

Depth: 59 mm

Weight: 70 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2326442 ABB 2CDE110000R0501 TDR DIN rail 230 V

User & Safety Instructions

User & Safety Instructions 2326442 ABB 2CDE110000R0501 TDR DIN rail 230 V

Description

Staircase light timer with off-delay are actuated by buttons, which are often equipped with a glow lamp. The shift levers are designed for a glow lamp current of up to 150 mA and are therefore ideally suited for systems in multi-story buildings.The staircase light timer with off-delay E 232-230 has an electromechanical timer relay with synchronous motor drive, with which a high operational safety is ensured in every installation position. The time range can be set in 15-second increments of one to seven minutes. Can be switched as per 30s. The multifunctional devices of the E 232E-230 Multi 10 and E 232E-8/230 Multi 10 series have 10 functions that can be set on the front of the device.
