Theben 0030002 TDR DIN rail 8 V DC/AC, 12 V DC/AC, 24 V DC/AC, 110 V DC/AC, 230 V DC/AC
EAN:
Part number:
Item no:
Product type
TDR
Nominal voltage
8 V DC/AC
12 V DC/AC
24 V DC/AC
110 V DC/AC
230 V DC/AC
Mounting type
DIN rail
Weight
0
Mounting method
DIN rail
Datasheet (PDF)
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Highlights & Details

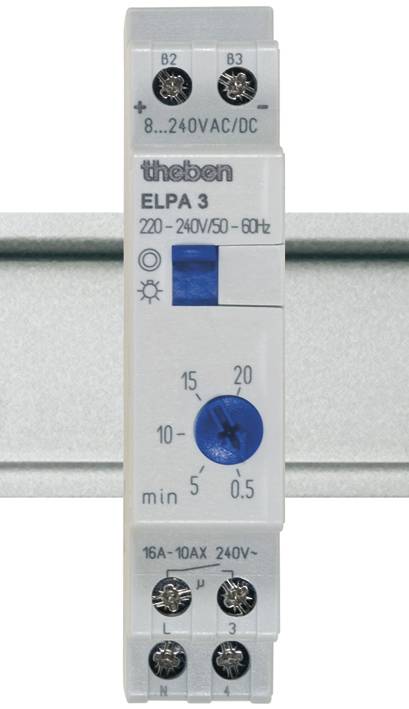

Staircase light switch analog ELPA 3
- 8 - 230 V DC/AC multi-voltage input
- Time range 0.5 - 20 Min.
Technical specifications
- Galvanically separated universal control voltage 8 to 230 V UC
- Time setting range: 30 s - 20 Min.
- Contact type: 1 closer.
- Product type
TDR
- Nominal voltage
8 V DC/AC
12 V DC/AC
24 V DC/AC
110 V DC/AC
230 V DC/AC
- Mounting type
DIN rail
- Weight
0
DIN rail
Electronic
60 mm
0.3 W
1
AC
0
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 469715 Theben 0030002 TDR DIN rail 8 V DC/AC, 12 V DC/AC, 24 V DC/AC, 110 V DC/AC, 230 V DC/AC
User & Safety Instructions
User & Safety Instructions 469715 Theben 0030002 TDR DIN rail 8 V DC/AC, 12 V DC/AC, 24 V DC/AC, 110 V DC/AC, 230 V DC/AC
Description
Range installation time switch. Additional multi-voltage input isolated for AC/DC 8 - 240 V, e.g. for intercom systems · Immediately after switching · Toggle switch for continuous light · High accuracy · Input with electronic overload protection · Automatic 3- or 4-conductor identification (4-wire with connector for floor lighting, 3-conductor for new installations no longer allowed). Width 17.5 mm, Time range 0.5 - 20 min, Resetteable, 3- and 4-wire connection. Input up to max. 150 mA, glow lamp load with electronic overload protection. 1 closer 16 A/230 V~.
